Description

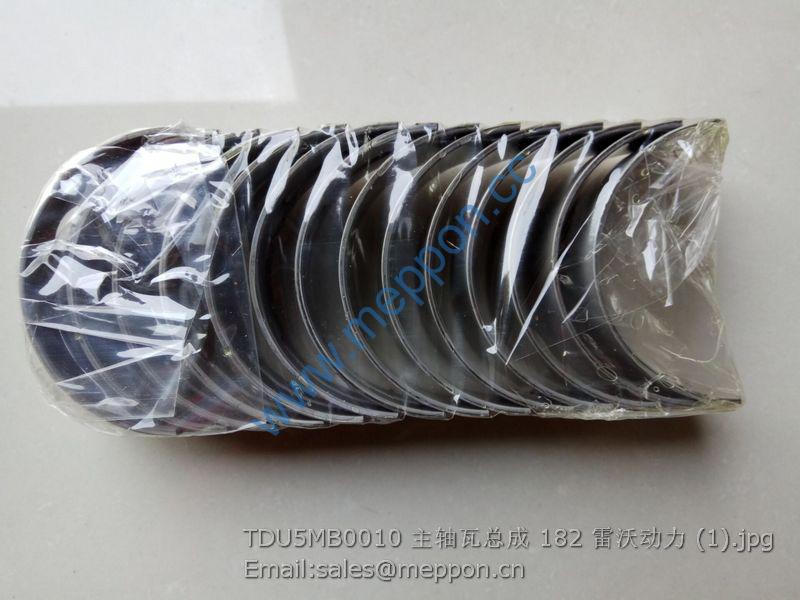

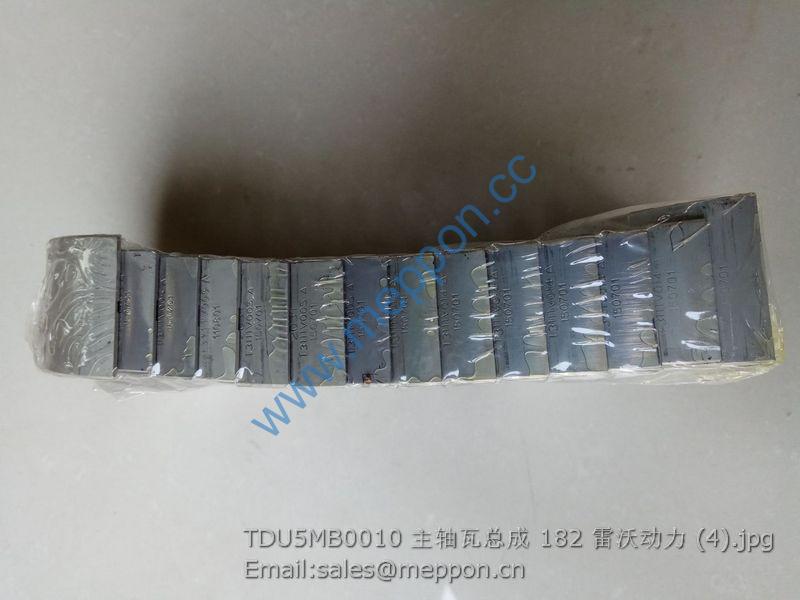

TDU5MB0010 main bearing foton engine parts

TB500A.55 Lift Mechanism Assembly 1
FT500A.55.010 Lift And Control Mechanism Assembly 1
1 TS300B.55.187 Adjusting Valve 1
2 GBT 1235-8X1.9 O-Ring 1
3 KR130.55.105 Seal Sleeve 1
4 GBT 3452.1-19X1.8 O-Ring 2
5 GBT 1235-22X2.4 O-Ring 1
6 KR130.55.103 Oil Return Valve Body 1
7 25.55.180 Limitation Plate 1
8 GBT 93-6 Washer 8
9 GBT 5783-M6X10 Bolt 4
10 TS300.55.172 Main Control Valve 1
11 25.55.184 Oil Return Valve Spring 1
12 25.55.176 Rear Plug Of Oil Return Valve 1
13 GBT 5783-M6X20 Bolt 4
14 KR130.55.183 Valve Front Cover 1
15 25.55.181 Main Control Valve Spring 1
16 GBT 1235-26X2.4 O-Ring 3
17 TS300.55.217 Main Control Valve Sleeve 1

TB500A.55 Lift Mechanism Assembly 1
FT500A.55.010 Lift And Control Mechanism Assembly 1
1 GBT 879-4X20 Pin 1
2 E300.55.140A Speed Reducing Valve Handwheel 1
3 GBT 3452.1-11.2X2.65 O-Ring 2
4 YT300A.55.116 Dropping Speed Adjusting Lever 1
5 GBT 91-4X20 Pin 1
6 JBT 982-22 Compound Seal Washer 1
7 GBT 5786-M22X1.5X20 Bolt 1
8 TB504.551A.1-01 Lift Housing 1
9 FT500A.55.103 Upper Cover Gasket 1
10 FT500A.55.104B Lift Upper Cover 1
11 GBT 93-8 Washer 11
12 GBT 5781-M8X20 Bolt 7
13 GBT 5781-M8X35 Bolt 4
14 25.55.146L Push Lever Sleeve 1
15 25.55.145L Draft Adjusting Seal Sleeve 1
16 GBT 1235-11X1.9 O-Ring 1
17 GBT 3452.1-16X1.8 O-Ring 1
18 25.55.158 Spring Lever 1
19 25.55.159 Spring Seat 1
20 25.55.157 Draft Adjusting Spring 1
21 25.55.160 Spring Press Plate 1
22 25.55.161 Nut 1
23 GBT 119-C4X14 Pin 1
24 25.55.162 Dustproof Cover 1
25 GBT 119-B3X40 Pin 1
26 YT300A.55.121 Upper Pull Rod Connecting Head 1
27 GBT 91-5X36 Pin 2
28 GBT 97.1-22 Washer 1
29 25.56.030 Lock Pin And Lock Pin Ring Assembly 1
30 GBT 97.1-20 Washer 1

31 FT500A.55.128 Upper Hanging Point Rocker Arm Bracket 1
32 450.55.167 Rocker Arm Connecting Pin 1
33 FT500A.55B.182 Rocker Arm Front Connecting Pin 1
34 FT500A.55.106 Rocker Arm Upper Connecting Pin 1
35 FT500B.55.130A Upper Hanging Point Rocker Arm 1

TB500A.55 Lift Mechanism Assembly 1
FT500A.55.010 Lift And Control Mechanism Assembly 1
1 300.55.130 Plug 1
2 GBT 3452.1-15X2.65 O-Ring 1
3 300.55.131-132 Adjusting Gasket On Demand
4 300.55.133 Oil Cylinder Safety Valve Spring 1
5 300.55.134 Oil Cylinder Safety Valve Body 1
6 FT500B.55.108A Oil Inlet Connecting Plate 1
7 GBT 93-10 Washer 6
8 GBT 5781-M10X30 Bolt 4
9 GBT 5783-M10X25 Bolt 2
10 FT500B.55.102 Oil Inlet Connecting Plate Gasket 1
11 GBT 3452.1-15X1.8 O-Ring 2
12 FT500B.55.103 Oil Inlet Pipe 1
13 GBT 3452.1-22.4X1.8 O-Ring 1
14 FT500B.55.197 Plug 1
15 GBT 1235-24X2.4 O-Ring 1
16 TS300B.55.110 Spring Hook 1
17 GBT 898-AM16X40 Stud 2
18 FT500B.55.118 Lock Disc 1
19 GBT 6170-M16 Nut 2
20 FT500B.55.120 Gasket 1
21 FT500B.55.121 Lock Disc 1
22 FT500B.55.125 Cylinder Bolt 2
