Description

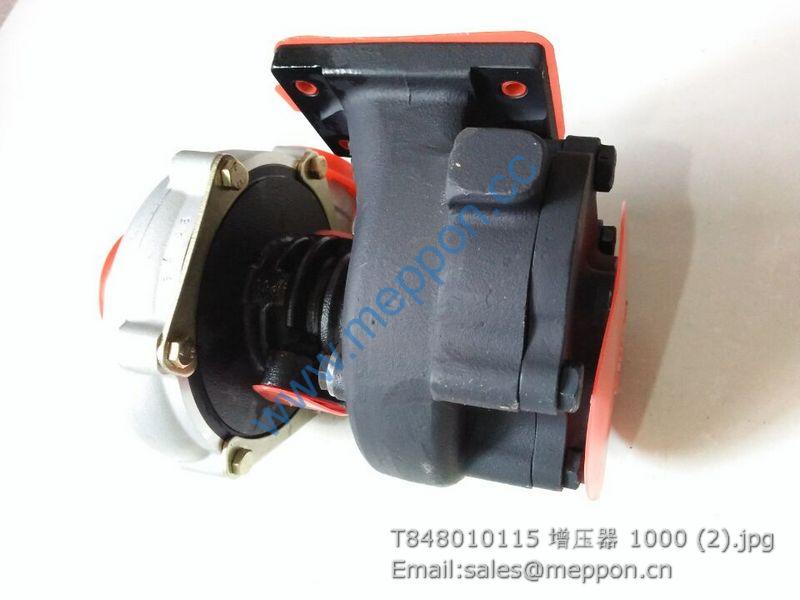

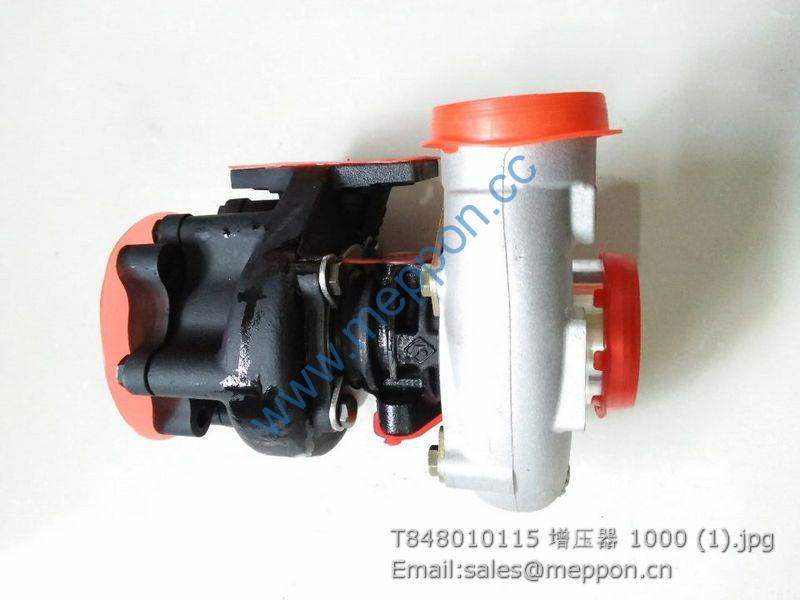

T848010115 turbocharger lovol engine
TB554.40A Full Hydraulic Steering Assembly 1
1 FT400.40.016 Steering Wheel Assembly 1
2 FT354.40C.012 Steering Gear And Its Housing Assembly 1
2.1 FT354.40C.016a Steering Column Assembly 1
2.2 GBT 5783-M10X30-A3L Screw 4
2.3 GBT 93-10-AOP Washer 4
2.4 FT354.40C.111 Steering Gear Bracket 1
2.5 FT354.40C.015 Hydraulic Steering Gear Assembly 1
3 FT354.40C.102 Hollow Long Bolt 2
4 JBT 982-20 Assembled Seal Washer 6
5 FT354.40C.109 Long Connecting Pipe 2
6 TB554.40A.1 Oil Return Outlet Pipe Weldment 1
7 TB550.40A.1 Oil Pump Oil Outlet Steel Pipe Weldment 1
8 GBT 5783-M12X45-A3L Bolt 1
9 FT750.40.108 Double-Hole Pipe Clip 2
10 GBT 93-12-A0P Washer 1
11 GBT 6170-M12-A3L Nut 1
12 TB554.40A.2a Oil Pump Oil Suction Steel Pipe Assembly 1
13 FT304.40L.023 Constant Flow Overflow Pump 1
14 GBT 3452.1-19.0X2.65G O-Seal Ring 1
15 GBT 93-8-A0P Washer 9
16 GBT 5783-M8X35-A2L Bolt 4
17 GBT 5783-M8X30-A2L Bolt 3
18 JBT 982-18 Compound Seal Washer 1
19 FT404.40C.102 Clamp Type End Straight Joint Body 1
20 Q67627 Hose Clamp 4
21 TB554.40A-04 Oil Inlet Hose 2
22 GBT 6170-M10-A3L Nut 2
23 GBT 93-10-A0P Washer 2
24 GBT 97.1-10-A0P Washer 2
25 TB554.40Q.5 Steering Oil Tank And Breather Assembly 1
26 GBT 5783-M8X25-A2L Bolt 2
27 TB550.40A-03 Oil Tank Bracket 1
28 GBT 5783-M10X35-A3L Bolt 2
29 GBT 6170-M8-A2L Nut 2
30 TB504.401-01 Steering Lever Protection Sleeve 1
TB554.40A Full Hydraulic Steering Assembly 1
1 JBT 982-20 Assembled Seal Washer 6
2 FT354.40C.108 Short Connecting Pipe 2
3 FT354.40C.119 Hollow Short Bolt 2
4 TB554.40Q.3a Left Oil Deliver Pipe Welding Joint 1
5 TB550.40A-02a Oil Pipe Bracket 1
6 GBT 6170-M8-A2L Nut 5
7 GBT 93-8-A0P Washer 5
8 FT354.40C.121 Double Hole Clamp 2
9 GBT 5782-M8X40-A2L Bolt 1
10 TB550.40A-01-10/12 Double Hole Clamp 4
11 GBT 5783-M8X35-A2L Bolt 4
12 TB554.40Q.4a Right Oil Deliver Pipe Welding Joint 1
13 TB454.40X-01 Single Hole Pipe Clamp 4
14 TB454.40X-03 Left Oil Pipe Bracket 1
15 TB454.40X-02 Right Oil Pipe Bracket 1
16 TB554.40A.3a High Pressure Right Hose Assembly 1
17 TB454.40X.3a High Pressur Left Oil Transfer Steel Pipe Weldment 1
18 Q67407200 Plastic Fastening Belt 1
19 FT650.40.112-M16X1.5 Hollow Bolt 2
20 JBT 982-16 Assembled Seal Washer 4
21 TB454.40X.2a High Pressure Left Oil Transfer Pipe Assembly 1
22 TB454.40X.1a High Pressure Right Oil Transfer Pipe Assembly 1
TB550.431 Left Brake Assembly 1
1 FT300.43.102 Plug Piece 6
2 GBT 308-89-18.000-G100-b Steel Ball 6
3 TB550.431-01 Left Brake Platen 1
4 TB550.431.3 Brake Friction Disc Assembly 3
5 FT300.43.105 Spacing Plate 2
6 FT300.43.101 O-Ring 1
7 GBT 894.1-18 Circlip For Shaft 1
8 FT300.43.109a Washer 1
9 GBT 3452.1-82-18.0X2.65G O-Ring 1
10 TB550.431.1 Left Brake Housing Assembly 1
10.1 TB550.431.1-02 Crankshaft Lining 1
10.2 TB550.431.1-01 Left Brake Housing 1
11 TB550.431-02 Shift Block 1
12 FT300.43.107 Spacing Sleeve 1
13 GBT 3452.1-82-20.0X2.65G O-Ring 1
14 TB550.431.2 Left Crank Unit 1
15 GBT 899-AM12-M12X1.25X80-10.9-A2L Stud 13
16 GBT 93-12 Standard Spring Washer 13
17 GBT 6171-M12X1.25-10-A3L Nut 13
18 FT300.43.153 Final Transmission Oil Drainage Port Washer 1
19 FT300.43.154 Screw Plug 1
TB550.432 Right Brake Assembly 1
1 TB550.432.2 Right Crank Unit 1
2 GBT 3452.1-82-20.0X2.65G O-Ring 1
3 FT300.43.107 Spacing Sleeve 1
4 TB550.431-02 Shift Block 1
5 TB550.432.1 Right Brake Housing Assembly 1
5.1 TB550.432.1-01 Right Brake Housing 1
5.2 TB550.431.1-02 Crank Shaft Lining 1
6 GBT 3452.1-82-18.0X2.65G O-Ring 1
7 FT300.43.109a Washer 1
8 GBT 894.1-18 Circlip For Shaft 1
9 FT300.43.101 O-Ring 1
10 GBT 6171-M12X1.25-10-A3L Nut 13
11 GBT 93-12 Washer 13
12 GBT 899-AM12-M12X1.25X80-10.9-A2L Stud 13
13 FT300.43.153 Final Transmission Oil Drainage Port Washer 1
14 FT300.43.154 Screw Plug 1
15 TB550.431.3 Brake Friction Disc Assembly 3
16 FT300.43.105 Spacing Plate 2
17 TB550.432-01 Right Brake Platen 1
18 GBT 308-89-18.000-G100-b Steel Ball 6
19 FT300.43.102 Plug Piece 6
