Description

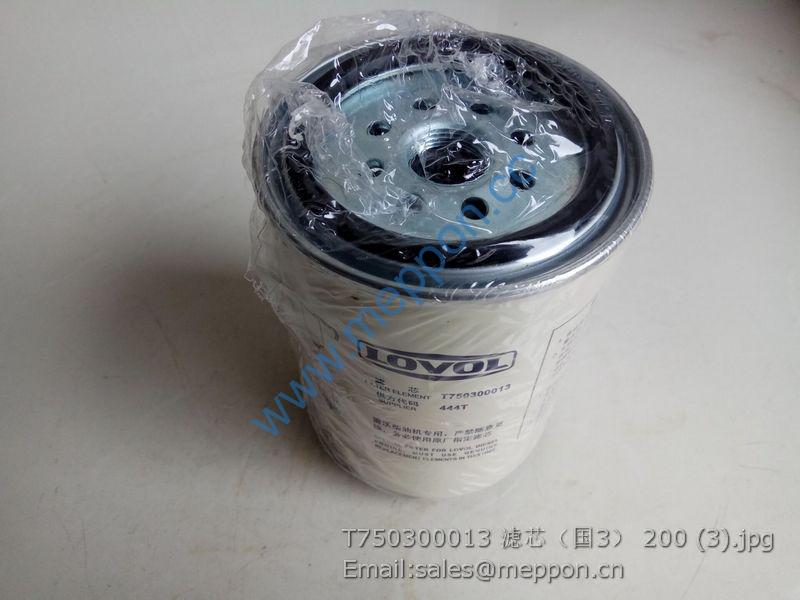

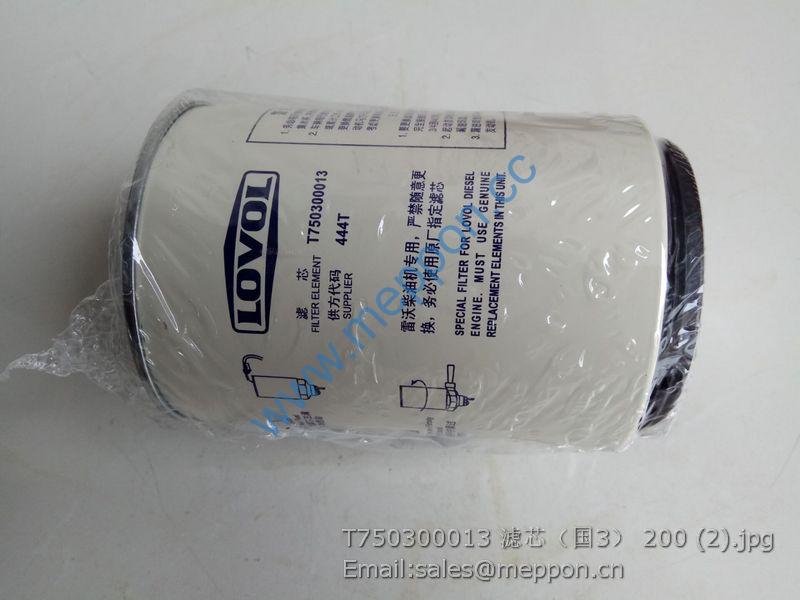

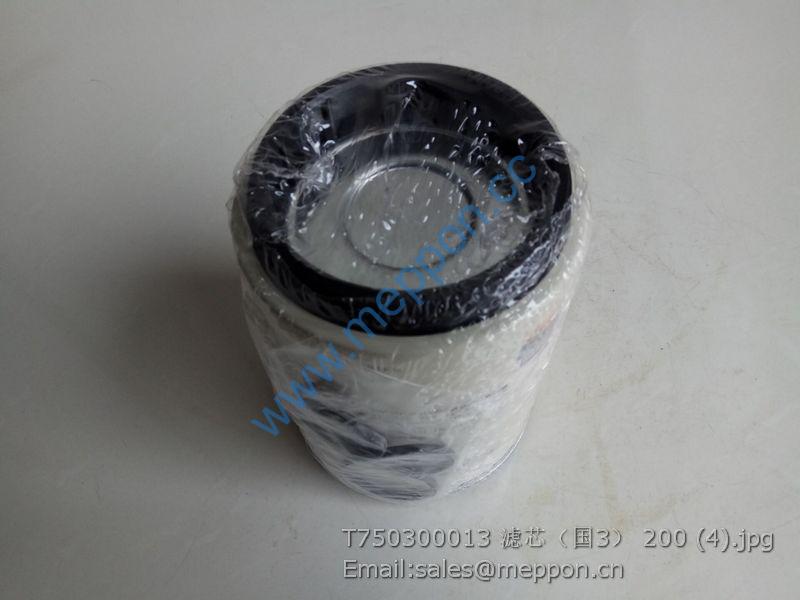

T750300013 LOVOL FILTER

TB550.392 Right Final Transmission Assembly 1
1 GBT6176-M18X1.5-10-A3L Hexagon Nut, Type-2 8
2 FT804.31B.120 Washer 8
3 TB550.391-02 Driving Shaft 1
4 FT65.38.140a Rear Hub Bolt 8
5 GBT5783-M12X30-8.8-A3L Hexagon Bolt 4
6 GBT93-12-A0P Standard Spring Washer 4
7 TB550.391-05 Half Shaft Oil Seal Seat 1
8 TB550.391-04 Final Transmission Gear Ring 1
9 GBT9877.1-FB80X105X10D Seal Ring 2
10 GBT276-6214 Deep Groove Ball Bearing 1
11 TB550.392-01 Right Half Shaft Housing 1
12 GBT276-6211 Deep Groove Ball Bearing 1
13 FT300.39.121 Adjusting Washer 1
14 FT300.39.122 Adjusting Washer 1
15 FT300.39.123 Adjusting Washer 1
16 TB550.391.1 Final Transmission Planet Bracket Assembly 1
16.1 TB550.391.1-01 Final Transmission Planet Bracket 1
16.2 FT300.39.111 Retainer Block 1
16.3 QLWZB140-8X32 Pin 3
16.4 TB550.391.1-04 Planet Gear Roll Needle Inner Spacer Ring 3
16.5 TB550.391.1-03 Final Transmission Planet Gear Shaft 3
16.6 TB550.391.1-05 Planet Gear Roll Needle Outer Spacer Ring 6
16.7 TB550.391.1-02 Final Transmission Planet Gear 3
16.8 GBT309-6X23.8-G2X-3X-5 Needle 132
17 FT300.39.112 Driving Shaft Lock Bolt 1
18 FT300.39.110 Driving Shaft Lock Piece 1
19 TB550.392-02 Right Final Transmission Half Shaft 1

TB550.411A PTO Gear Assembly 1
1 GBT894.1-40 Circlip For Shaft 2
2 GBT276-6208 Deep Groove Ball Bearing 1
3 TB550.411A-01 PTO High And Low Gear Driving Dual Gear 1
4 GBT276-6308N Deep Groove Ball Bearing 1
5 GBT305-90-96.5 Thrust Ring 1
6 GBT812-M25X1.5 Round Nut 2
7 GBT858-25 Thrust Washer For Round Nut 1
8 FT300.41.122 Washer 1
9 GBT276-6306 Deep Groove Ball Bearing 1
10 FT300.41C.118 Output Shaft Front Retainer Ring 1
11 TB550.411A-02 PTOHigh Gear Driven Gear 1
12 TB550.411-04 Needle Bearing Kk40X46X34 1
13 FT300.41C.117 PTO Meshing Seat 1
14 FT300.41C.116 PTO Shift Collar 1
15 TB550.411-03 PTO Low Gear Driven Gear 1
16 JBT7918-K35X40X27 Needle And Carrier Combination 1
17 FT300.41E.114 Rear Retainer Ring 1
18 FT300.41E.119 Thrust Ring 1
19 GBT276-6309 Deep Groove Ball Bearing 1
20 FT300.41E.113 Output Shaft Bearing Washer 1
21 GBT9877.1-FB50X72X8D Seal Ring 2
22 FT300.41E.115 Oil Seal Retainer Ring 1
23 FT300.41E.101 Rear End Cover I 1
24 GBT93-12 Standard Spring Washer 8
25 GBT5782-M12X55-8.8-A3L Hexagon Bolt 4
26 GBT5783-M12X25-8.8-A3L Hexagon Bolt 4
27 FT300.41.131a Safty Bonnet 1

TB550.412A Pto Shaft Assembly 1
1 TB550.412A-01 Type I35 Pto Shaft 1
2 TB550.412-02 Pto Shaft Head Shield 1

TB550.413 Pto Control Assembly 1
1 FT300.41.015 Pto Control Handle Assembly 1
2 GBT6170-M10-8-A3L Hexagon Nut , Style 1 2
3 FT300.41.013 Control Lever Assembly, Pto 1
3.1 FT300.41.014 Control Lever Welded Unit, Pto 1
3.2 FT300.41.127 Bush 1
4 FT300.41.128 Spacer Bush 1
5 GBT882-B10X30 Axis Pin 2
6 FT300.43.108 Front Fork, Pull Rod 1
7 FT300.41E.112 Control Lever 1
8 FT300.41.130 Shaft Sleeve 1
9 FT300.41.129 Washer 1
10 GBT93-12 Washer 1
11 TB550.413-02 Bolt M12x75 1
12 GBT97.1-10-A0P Washer 2
13 GBT91-3.2X16-A0P Pin 2
14 GBT91-2.5X32-A0P Split Pin 1
15 TB550.413-03 Screw 1
16 FT704.42B.163 Retaining Spring, Fork Shaft 1
17 GBT308-9.5-G100-b Steel Ball 1
18 TB550.413-04 Finger-Type Driving Lever 1
19 GBT3452.1-11.2X2.65G O-Ring 1
20 FT300.41E.109 Shift Lever Shaft Sleeve 1
21 GBT93-8 Standard Spring Washer 2
22 GBT5783-M8X20-8.8-A2L Hex Head Bolt 2
23 FT300.41.012 Gear Shift Lever Welded Unit, Pto 1
24 GBT879.1-6X26 Pin 1
25 GBT879.1-3.5X26 Resilient Pin 1
26 TB550.413-01a Gear Shift Fork, Pto 1
27 FT300.41C.107a Fork Shaft, Pto 1
28 FT300.43.110 Rear Fork, Pull Rod 1
29 GBT3452.1-16.0X2.65G Hydraulic And Pneumatic O-Ring 2

TB554.421B Transfer Case Body Assembly 1
1 TB554.421B.1 Transfer Case Body Assembing 1
1.1 TB554.421B.1-05 Idler Shaft 1
1.2 FT304.42F.103 Thrust Ring 2
1.3 JBT 7918-K25X31X20 Bearing 2
1.4 FT304.42.126 Rolling Needle Inner Spacing Sleeve 1
1.5 TB554.421B.1-01 Transfer Case Idler 1
1.6 TB554.421B.1-03 Transfer Case Housing 1
1.7 FT304.42.112 Thrust Screw 1
1.8 GBT 6173-M10X1-A2L Nut 1
1.9 GBT 276-6306 Bearing 2
1.10 FT304.42.117 Bearing Cover 1
1.11 GBT 93-8-AOP Washer 8
1.12 GBT 5783-M8X20-A2L Bolt 8
1.13 FT304.42F.106 Bearing Seat 1
1.14 GBT 9877.1-FB30X52X7D Framework Oil Seal 1
1.15 FT804.42.119a Spacing Sleeve 1
1.16 TB554.421B.1-02 Transfer Case Driven Gear 1
1.17 TB554.421B.1-06 Gear Liner 1
1.18 FT804.42.115 Engaging Gear Seat 1
1.19 FT804.42.114 Engaging Sleeve 1
1.20 TB554.421B.1-04 Transfer Case Gear Shaft 1
1.21 GBT 894.1-38 Circlip 1
1.22 FT804.42.110 Screw Plug 2
1.23 JBT 982-18 Washer 2
1.24 FT800.37.139 Spring 1
1.25 GBT 308-10-G100-b Steel Ball 1
1.26 TB554.421B.1-08 Shift Fork Shaft 1
1.27 TB554.421B.1-07 Release Shift Fork 1
1.28 FT800.37.194 Fastening Screw 1
1.29 TA800.212B-02 Low-Carbon Steel Wire Sz-1.40 1
1.30 GBT 5782-M10X45-8.8-A3L Bolt 4

1.31 GBT 93-10-A0P Washer 4
1.32 TB554.423B-01 Side Cover 1
1.33 TB554.423B-02 Revolving Shaft Spacing Sleeve 1
1.34 GBT 3452.1-17.0X1.80G O-Ring 2
1.35 TB554.423B.1 Revolving Shaft Weldment 1
2 GBT 3452.1-132X3.55G O-Ring 1
3 GBT 119.1-10m6X20-A0P Pin 2
4 GBT 93-10-A0P Washer 4
5 GBT 5783-M10X30-8.8-A3L Bolt 4

TB554.422A Transfer Case Transmission Assembly 1
1 GBT 93-8-AOP Washer 5
2 GBT 5783-M8X16-A2L Bolt 3
3 TB554.422A.2 Transfer Case Transmission Shaft Assembly 1
3.1 FT304.42F.015 Shield (1) Weldment 1
3.2 GBT 3452.1-34.5X3.55G O-Ring 2
3.3 GBT 879.1-6X35 Pin 2
3.4 FT304.42.107a Spline Sleeve 2
3.5 FT404.42.128 Rear Transmission Shaft 1
3.6 GBT 894.1-26 Circlip 2
3.7 FT304.42X.017 Shield (2) Weldment 2
3.8 GBT 5783-M8X20-A2L Bolt 8
3.9 GBT 93-8-AOP Washer 8
3.10 TB554.422A.2.2 Middle Bearing Seat Assembly 1
3.10.1 GBT 893.2-72 Circlip 1
3.10.2 FT304.42X.136 Spacing Ring 1
3.10.3 GBT 276-6007-2RZ Bearing 1
3.10.4 FT304.42X.137 Rubber Ring 1
3.10.5 FT304.42X.138 Middle Bearing Seat 1
3.10.6 FT304.42X.135 Middle Spline Sleeve 1
3.11 TB554.422-01 Front Transmission Shaft 1
3.12 TB554.422A.2.1 Shield Weldment 1
4 GBT 97.1-10-A0P Washer 2
5 GBT 93-10-A0P Washer 2
6 GBT 5783-M10X20-A3L Bolt 2
7 GBT 119.1-8m6X20-AOP Pin 2
8 GBT 93-12-AOP Washer 2
9 GBT 5783-M12X40-A3L Bolt 2
10 GBT 97.1-8-A0P Washer 2
11 GBT 5783-M8X20-A3L Bolt 2
