Description

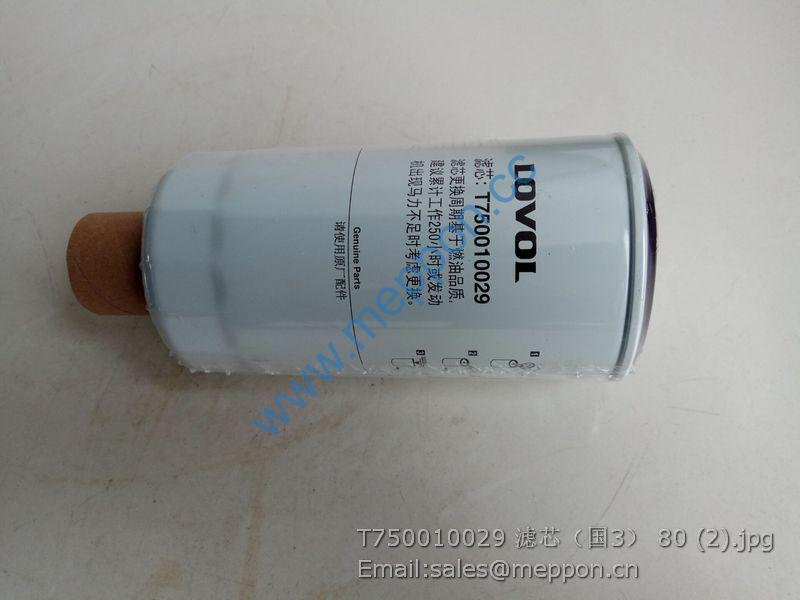

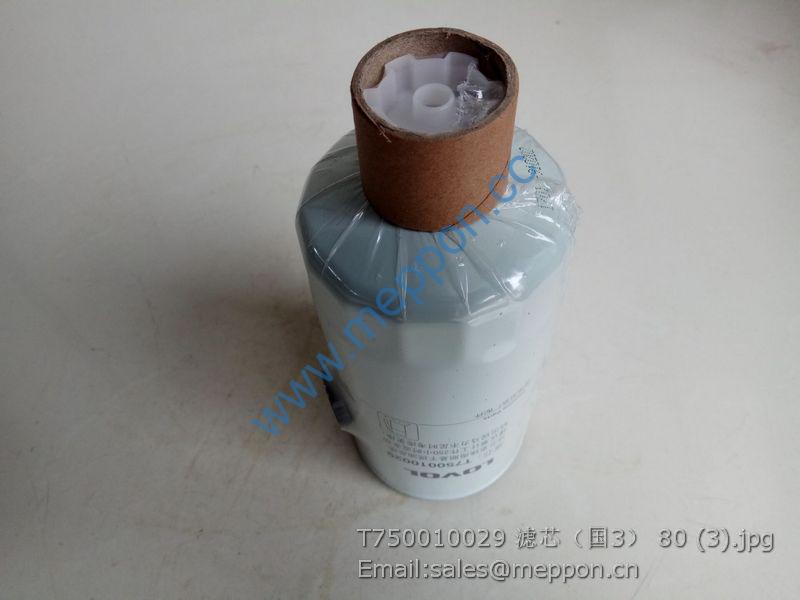

T750010029 LOVOL FUEL FILTER

TB554.382 Rear Axle Central Transmission Assembly 1
1 TB450.38J-05 Small Taper Gear Shaft 1
2 GBT283-NUP2210E Column Roller Bearing 1
3 GBT894.1-50 Circlip For Shaft 1
4 GBT894.1-48 Circlip For Shaft 1
5 TB554.382-02 Front Drive Output Gear 1
6 GBT297-32208 Tapered Roller Bearing 2
7 FT300.38.118 Taper Gear Shaft Adjusting Gasket 1
8 FT300.38.119 Taper Gear Shaft Adjusting Gasket 1
9 FT300.38.120 Taper Gear Shaft Adjusting Gasket 1
10 FT300.38.117 Bearing Seat 1
11 GBT93-10-A0P Standard Spring Washer 16
12 GBT5783-M10X30-8.8-A3L Hexagon Bolt 4
13 GBT812-M39X1.5 Round Nut 2
14 GBT858-39 Thrust Washer For Round Nut 1
15 FT300.38.177 Right Differential Bearing Seat 1
16 FT300.38.151 Adjusting Nut 2
17 FT300.38.142 Left Differential Bearing Seat 1
18 GBT5783-M10X25-8.8-A3L Hexagon Bolt 12
19 FT300.38.161 Lock Washer 2
20 GBT93-8-A0P Standard Spring Washer 4
21 TB554.382-01 Bolt 4

TB554.382 Rear Axle Central Transmission Assembly 1
FT300.38.012 Differential Assembly 1
1 GBT297-32013 Tapered Roller Bearing 1
2 GBT6170-M12-8-A3L Hexagon Nut, Type-1 8
3 FT300.38.152 Locking Washer 4
4 FT300.38.181 Differential Cover 1
5 FT300.38.147 Half Shaft Gear Washer 1
6 FT300.38.144 Right Half Shaft Gear 1
7 FT300.38.148 Planet Gear Washer 4
8 FT300.38.145 Planet Gear 4
9 FT300.38.182 Long Planetary Gear Shaft 1
10 FT300.38.183 Short Planetary Gear Shaft 2
11 FT300.38.184 Central Ring 1
12 FT300.38.143 Left Half Shaft Gear 1
13 FT300.38.180 Differential Housing 1
14 FT300.38.141 Big Taper Gear 1
15 FT300.38.185 Planet Gear Shaft Thrust Bolt 4
16 FT300.38.019 Differential Lock Assembly 1
17 GBT297-30211 Tapered Roller Bearing 1
18 FT300.38.186 Fixing Bolt 4
19 FT300.38.196 Half Shaft Gear Washer 1
20 FT300.38.197 Half Shaft Gear Washer 1
21 FT300.38.198 Half Shaft Gear Washer 1
22 FT300.38.199 Half Shaft Gear Washer 1
23 FT300.38.200 Half Shaft Gear Washer 1
24 FT300.38.157 Differential lock body 1
25 FT300.38.156 Differential lock pin 8

TB554.383 Differential Lock Control Mechanism Assembly 1
1 GBT3452.1-15.0X2.65G O-Ring 1
2 FT300.38.158a Differential Lock Shift Fork Shaft 1
3 FT300.38.160 Differential Lock Retraction Spring 1
4 FT300.38.159a Differential Lock Shift Fork 1
5 FT300.38.190 Differential Lock Shift Block 1
6 GBT879.1-6X40 Spring Column Pin 1
7 GBT879.2-3.5X40 Spring Column Pin 1
8 GBT5781-M8X65-A2L Hex Bolt 1
9 GBT6170-M8-A2L Hex Nut 2
10 GBT879.1-6X35 Spring Column Pin 1
11 GBT879.2-3.5X35 Spring Column Pin 1
12 FT300.38.015 Differential Lock Pedal Weldment 1
13 Q72220 Bowl-Shape Disc 1

TB554.384 Rear Axle Housing Assembly 1
1 TB554.384-01a Rear Axle Housing 1
2 TB400.384.1 Refueling And Airing Plug Assembly 1
3 JBT982-36 Combined Seal Gasket 1
4 GBT5783-M8X20-8.8-A2L Hexagon Bolt 6
5 GBT93-8-A3L Standard Spring Washer 6
6 FT300.38J.124 Upper Cover 1
7 FT300.38J.206 Reverse Side Cover 1
8 GBT93-10-A3L Standard Spring Washer 6
9 GBT5783-M10X25-8.8-A3L Hexagon Bolt 5
10 GBT5782-M10X60-8.8-A3L Hexagon Bolt 1
11 GBT899-AM12-M12X1.25X80-10.9-A2L Double End Studs 24
12 GBT93-12-A3L Standard Spring Washer 24
13 GBT6171-M12X1.25-10-A2L Hexagon Nut, Type-1 24
14 GBT119.1-12m6X28-A3L Column Pin 2
15 FT65.38.026 Oil Plug Assembly 1
16 TB554.384-02 Pin 4
17 GBT3452.1-15.0X2.65G Rubber O-Seal Ring 1
18 TB604.384.2 Oil Dipstick Pipe Weldment 1
19 TB604.384.4 Dipstick Assembly 1

TB554.385 Shuttle Gearshift Mechanism Assembly 1
1 FT300.41.015 Pto Control Handle Assembly 1
2 GBT6170-M10-8-A3L Type 1 Hex Nut 1
3 TB554.385-04 Upper Section Of Shuttle Shift Control Lever 1
4 FT300.38J.231b Rocker Arm 1
5 TB554.385-02 Shaft Pin 1
6 GBT848-10-A0P Washer 1
7 GBT91-3.2X40-A0P Cotter Pin 1
8 TB400.385-09 Bolt 2
9 GBT93-10-A0P Standard Spring Washer 4
10 TB554.385.3a Shift Lever Shaft Sleeve Weldment 1
11 GBT3452.1-16.0X2.65G O-Ring 1
12 GBT879.1-6X28 Spring Column Pin 2
13 GBT879.2-3.5X28 Spring Column Pin 2
14 TB554.385-01 Shift Lever Rocker 1
15 GBT91-4X32-A0P Cotter Pin 1
16 FT704.42B.163 Shift Fork Shaft Positioning Spring 1
17 GBT308-9.5-G100-b Steel Ball 1
18 FT300.38J.203 Reverse Gear Shift Fork Shaft 1
19 FT300.38J.218 Reverse Gear Shift Fork 1
20 TB554.385-03 Washer 1
21 GBT5783-M10X30-8.8-A3L Hex Bolt 2
22 JBT7940.1-M8X1 Straight Hydraulic Grease Nozzle 1
23 TD800.311C.1-01 Oil Cup Dustproof Cap 1
24 GBT5783-M6X20-8.8-A2L Hex Bolt 2
25 GBT93-6-A0P Standard Spring Washer 2
26 TB554.385.1c Shuttle Gearshift Control Lever Pressing Unit 1
26.1 TB554.385.1c.1 Shuttle Gearshift Control Lever Weldment 1
26.2 TB504.385.1-01b Bush 1

TB550.391 Left Final Transmission Assembly 1
1 TB550.391-04 Final Transmission Gear Ring 1
2 TB550.391-03 Left Final Transmission Half Shaft 1
3 FT300.39.110 Driving Shaft Lock Piece 1
4 FT300.39.112 Driving Shaft Lock Bolt 1
5 TB550.391.1 Final Transmission Planet Bracket Assembly 1
5.1 FT300.39.111 Retainer Block 1
5.2 TB550.391.1-01 Final Transmission Planet Bracket 1
5.3 TB550.391.1-05 Planet Gear Roll Needle Outer Spacer Ring 6
5.4 TB550.391.1-02 Final Transmission Planet Gear 3
5.5 GBT309-6X23.8-G2X-3X-5 Needle 132
5.6 TB550.391.1-04 Planet Gear Roll Needle Inner Spacer Ring 3
5.7 TB550.391.1-03 Final Transmission Planet Gear Shaft 3
5.8 QLWZB140-8X32 Pin 3
6 FT300.39.121 Adjusting Washer 1
7 FT300.39.122 Adjusting Washer 1
8 FT300.39.123 Adjusting Washer 1
9 GBT276-6211 Deep Groove Ball Bearing 1
10 TB550.391-01 Left Half Shaft Housing Body 1
11 GBT276-6214 Deep Groove Ball Bearing 1
12 GBT9877.1-FB80X105X10D Seal Ring 2
13 GBT6176-M18X1.5-LH-10-A3L Hexagon Nut, Type-2 8
14 TB550.391-05 Half Shaft Oil Seal Seat 1
15 GBT93-12-A0P Standard Spring Washer 4
16 GBT5783-M12X30-8.8-A3L Hexagon Bolt 4
17 FT65.38.222 Rear Hub Bolt (Left) 8
18 TB550.391-02 Driving Shaft 1
19 FT804.31B.120 Washer 8
