Description

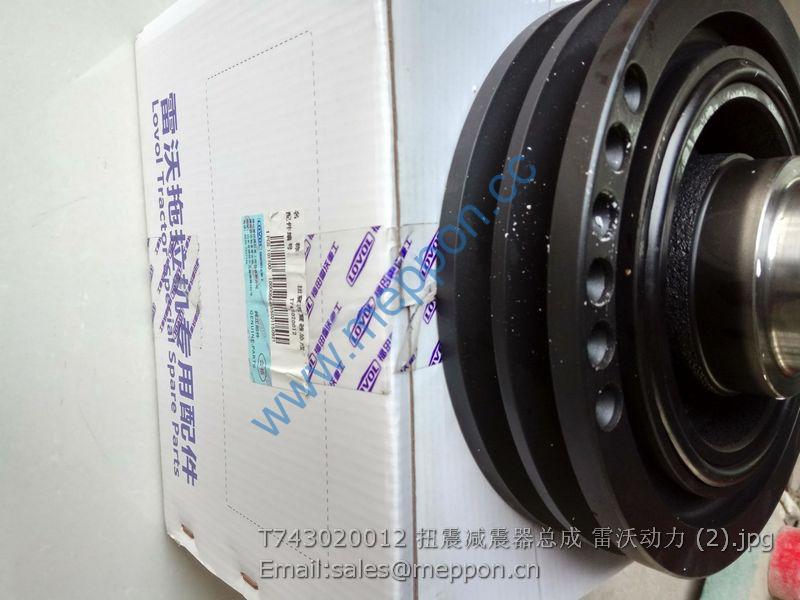

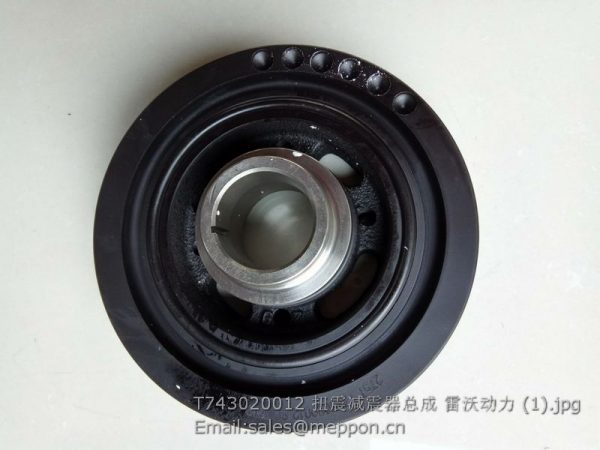

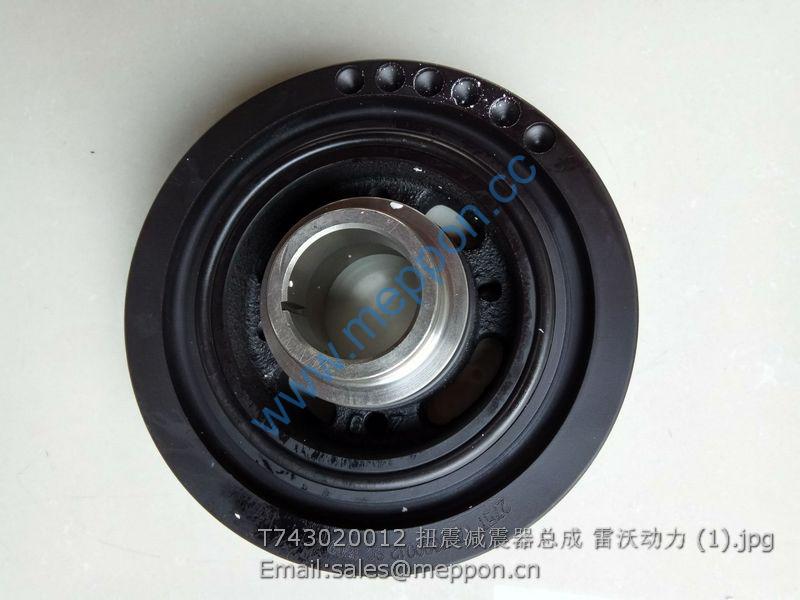

T743020012 DAMPER LOVOL ENGINE PARTS

TB550.372 Main Gear Assembly 1
1 FT400.37B.201 Auxiliary Clutch Shaft 1
2 GBT5783-M8X25-8.8-A2L Bolt 4
3 GBT93-8-A0P Washer 4
4 FT300.37B.124 1St Shaft Bearing Cover 1
5 FT300.37B.125 1St Shaft Bearing Cover Gasket 1
6 GBT9877.1-FB40X62X8F Skeleton Oil Seal 1
7 GBT276-6208 Bearing 1
8 FT300.37B.021a 1St Shaft Unit 1
8.1 FT300.37B.202a Shaft-1 1
8.2 FT300.37.170 Bush 1
9 GBT3452.1-23.6X1.80G O-Ring 23.6X1.80g 2
10 TB550.372-18 1St Gear Spacing Sleeve 1
11 TB550.372-09a 1St Gear Driving Gear 1
12 TB550.372-19 1St And 2Nd Gear Spacing Sleeve 1
12 TB550.372-20 1St And 2Nd Gear Spacing Sleeve 1
12 TB550.372-21 1St And 2Nd Gear Spacing Sleeve 1
12 TB550.372-22 1St And 2Nd Gear Spacing Sleeve 1
12 TB550.372-23 1St And 2Nd Gear Spacing Sleeve 1
12 TB550.372-24 1St And 2Nd Gear Spacing Sleeve 1
13 TB550.372-10 2Nd Gear Driving Gear 1
14 TB550.372-11a 3Rd Gear Liner 1
15 TB550.372-12 Needle Bearing K49x55x30 1
16 FT300.37M.130 3Rd Gear Driving Gear 1
17 TB550.372-13 3Rd And 4Th Gear Seat 1
18 TB550.372-14a 3Rd And 4Th Gear Meshing Sleeve 1
19 GBT276-6007 Bearing 1
20 GBT893.1-21 Circlip 1
21 FT300.37.136 Connecting Sleeve 1
22 FT300.37J.137 Pto Shaft Connecting Shaft 1
23 GBT895.2-24 Circlip 1

TB550.372 Main Gear Assembly 1
1 GBT5783-M8X25-8.8-A2L Bolt 4
2 GBT93-8-A0P Washer 4
3 FT300.37.120 Shaft-2 Bearing Cover 1
4 FT300.37.119 Shaft-2 Bearing Cover Gasket 1
5 GBT812-M24X1.5 Nut 1
6 GBT858-24 Washer 1
7 GBT305-72-78.6 Thrust Ring 1
8 GBT276-6306N Bearing 1
9 TB550.372-08 Shaft-2 End Circlip 1
10 TB550.372-16 Bearing K42x49x35.5 1
11 TB550.372-07 1St Gear Liner 1
12 TB550.372-06a 1St Gear Driven Gear 1
13 TB550.372-15 Spacing Sleeve 1
14 FT300.37M.116 1St And 2Nd Gear Seat 1
15 FT300.37M.119 1St And 2Nd Gear Joggle Sleeve 1
16 TB550.372-05 Needle Bearing K43x49x30 1
17 FT300.37M.114 1St And 2Nd Gear Liner 1
18 TB550.372-04a 2Nd Gear Driven Gear 1
19 TB550.372-03 3Rd Gear Driven Gear 1
20 FT300.37.110 3Rd And 4Th Gear Spacing Sleeve 1
21 TB550.372-01 4Th Gear Driven Gear 1
22 GBT283-NUP208E Bearing 1

TB550.373 Assistant Gear Assembly 1
1 TB550.373-01c Assistant Gear Driving Gear Shaft 1
2 GBT 283-NUP210E Bearing 1
3 TB550.373-02 Circlip 1
4 TB550.373-03b Middle Gear Driving Gear 1
5 TB550.373-12 Roller Bearing Kk50x55x30 1
6 TB550.373-04b Spacing Sleeve 1
7 TB550.373-05b Middle Gear Engaging Gear Seat 1
8 TB550.373-06a Middle Gear Engaging Sleeve 1
9 GBT 894.1-50 Circlip 1
10 GBT 283-NUP308E Bearing 1
11 FT300.37.139 Assistant Gear Bearing Cover 1
12 GBT 93-10-A0P Washer 4
13 GBT 5783-M10X30-A3L Bolt 4
14 FT300.37J.180 Spacing Sleeve 1
15 GBT283-NF208 Bearing 1
16 GBT 894.1-40 Circlip 1
17 TB550.373-08 Middle Gear Driven Gear 1
18 TB550.373-09 Reverse Gear Seat 1
19 FT300.37.111 Spacing Sleeve 1
20 Q/SFZ B019 Roller Bearing K35x43x34zw 1
21 FT450.37.103 Assistant Gear Driven Gear 1
22 TB550.373-11a Limitation Circlip 1
23 GBT 894.1-35 Circlip 1
24 GBT 283-NUP307E Bearing 1
25 TB550.373-10 Assistant Gear Driven Shaft 1
26 JBT 7918-K25X31X20 Roller Bearing 1

TB550.374 Gearbox Control Mechanism Assembly 1
1 GBT 93-10-A0P Washer 8
2 GBT 5783-M10X30-A3L Bolt 8
3 Q 721 Plug Piece 14 1
4 GBT 308-8-G100-b Steel Ball 4
5 FT300.37.135 Shift Fork Shaft Positioning Spring 4
6 TB550.374-03a High-Low Gear Shift Fork 1
7 GBT 879.1-3X24 Pin 7
8 GBT 879.1-5X24 Pin 7
9 FT300.37.156 Assistant Gear Shift Fork Shaft 1
10 FT300.37.154 Assistant Gear Shift Fork Head 1
11 TB550.374-04a Middle Shift Fork 1
12 FT300.37.151 Interlock Pin 1
13 TB550.374-05a Middle Gear Shift Fork Shaft 1
14 FT300.37.153 Reverse Gear Shift Head 1
15 TB550.374-02 3Rd And 4Th Gear Shift Fork 1
16 FT300.37.150 3Rd And 4Th Gear Shift Fork Shaft 1
17 FT300.37.152 1St And 2Nd Gear Shift Head 1
18 TB550.374-01 1St And 2Nd Gear Shift Fork Shaft 1
19 FT300.37M.148 1St And 2Nd Gear Shift Fork 1

TB550.374 Gearbox Control Mechanism Assembly 1
TB550.374.1 Gearbox Cover Assembly 1
1 TB550.374.1.1 Assistant Gear Control Lever Assembly 1
2 GBT 6172.1-M10-A3L Nut 2
3 FT300.37.160a Assistant Gear Lever 1
4 FT300.37.166a Gearshift Lever Dustproof Cover 2
5 GBT 893.1-40 Circlip 2
6 FT800A.37.305 Nylon Seat 2
7 GBT 5781-M8X20-A2L Bolt 8
8 GBT 93-8-A0P Washer 8
9 FT800A.37.326 Shift Lever Location Pin 4
10 TF1004.374-02 Low-Carbon Steel Wire Sz-1.4X250 2
11 FT300.37.180 Gearshift Lever Bracket 2
12 FT300.37.015 Main Gear Shift Control Lever Assembly 1
13 FT300.37.167a Main Gear Shift Lever 1
14 FT300.37.163a Gearbox Upper Cover 1
15 FT300.37.165 Gear Shift Lever Spring 2
16 FT300.37.164 Gearshift Lever Spring Circlip 2
17 TB550.374.1-01 Assistant Gear Shift Guide Plate 1
18 GBT 854-8 Washer 4
19 GBT 5783-M8X16-A2L Bolt 4
20 FT300.37.162 Main Gear Guide Plate 1

TB554.381 Shuttle Gearshift Assembly 1
1 TB450.38J.1 Reverse Gear Middle Shaft Assembly 1
1.1 FT300.37.170 Bush 2
1.2 TB450.38J.1-01 Reverse Gear Middle Gear Shaft 1
2 GBT 5783-M10X25-A3L Bolt 4
3 GBT 93-10-A0P Washer 4
4 FT300.38J.204 Bearing Press Plate 2
5 GBT 283-NJ208E Bearing 1
6 GBT 879.1-5X30 Pin 1
7 GBT 879.1-8X30 Pin 1
8 TB450.38J-07 Reverse Gear Idler Shaft 1
9 GBT 283-NJ206E Bearing 2
10 GBT 893.1-62 Circlip 1
11 TB450.38J-06 Reverse Gear Idler 1
12 TB450.38J-08 Reverse Gear Idler Shaft Spacing Sleeve 1
13 TB450.38J-01 Meshing Seat 1
14 TB450.38J-02 Meshing Sleeve 1
15 TB450.38J-03 Spacing Sleeve 1
16 TB450.38J-04 Reverse Gear Driven Gear 1
17 QLWZB120-K35X43X34ZW Roller Needle Bearing 1
18 FT300.38J.202 Adjusting Washer 1
19 TB554.381-02 Gasket 1
