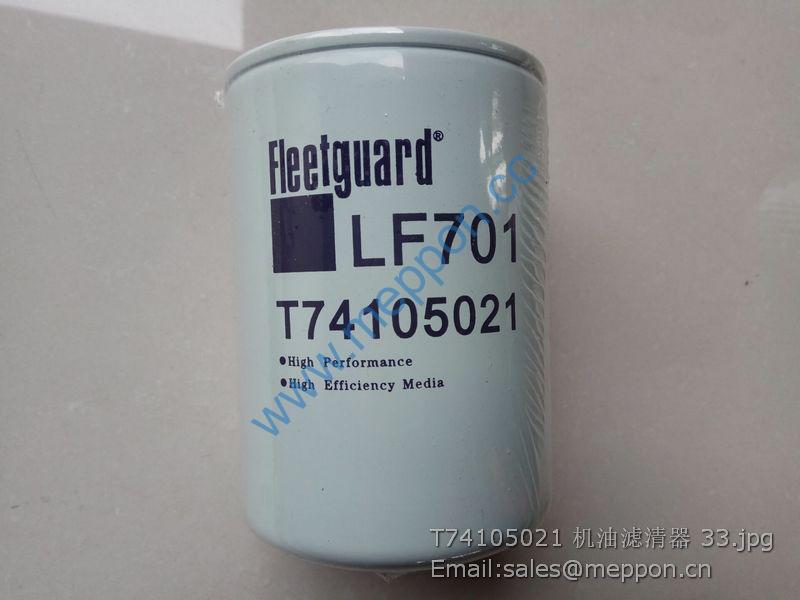

T74105021 oil filter foton lovol engine spare parts LF701
TD924.581 Oil Pump/Pine/Filter Assembly 1
1 FT750.58A.101 Hollow Bolt-1 1
2 JBT 982-27 Assembled Seal Washer 2
3 TD924.581.1 Oil Pump Outlet Pipe Weldment 1
4 TS09580020006 O-Ring 12X2-L15-L16-S16 1
5 GBT 5783-M6X25-8.8-A2L Hex Bolt 3
6 GBT 93-6-A0P Standard Spring Washer 3
7 FT650.58.060 Oil Pipe Clip And Gasket Paste 6
8 GBT 6170-M6-8-A2L Type 1 Hex Nut 3
9 TD924.581.2 High-Pressure Oil Pipe Assembly 1
10 FT800.58C.012 Gear Pump 1
11 GBT 93-10-A0P Standard Spring Washer 2
12 GBT 70.1-M10X30-8.8-A3L Hexagon Socket Head Cap Screw 2
13 JBT 982-33 Assembled Seal Washer 2
14 FT750.58A.050 Oil Suction Short Pipe Weldment 2 1
15 FT750.58A.102 Hollow Bolt-2 1
16 Q67645 B Type Worm Drive Type Hose Clamp 6
17 FT650.58.105 Hose 3
18 GBT 70.1-M8X25-8.8-A2L Hexagon Socket Head Cap Screw 2
19 GBT 93-8-A0P Standard Spring Washer 6
20 FT750.58.040 Oil Suction Short Pipe Weldment 1 1
21 GBT 3452.1-26.5X2.65G Hydraulic Pneumatic O-Ring 1
22 FT750.58A.080 Oil Filter Assembly 1
23 GBT 5783-M8X25-8.8-A2L Hex Bolt 2
24 GBT 97.1-8-A0P Flat Washer 2
25 FT800.58C.103 Oil Suction Long Pipe 1
26 GBT 70.1-M8X30-8.8-A2L Hexagon Socket Head Cap Screw 2
27 FT800.58C.040 Oil Suction Short Pipe Weldment 1
28 GBT 3452.1-32.5X2.65G Hydraulic Pneumatic O-Ring 1
TS06582010000 Hydraulic System Assembly 1
1 FT354.58A.030 Quick-Change Connector 4
2 JBT982-20 Compound Seal Washer 4
3 TC02582010003K Straight Thread Connector, Body 4
4 TBT982-18 Compound Seal Washer 4
5 GBT5783-M6X60-8.8-A2L Hexagon Head Bolt 3
6 GBT93-6-AOP Standard Spring Washer 5
7 GBT97.1-6-AOP Plain Washer 5
8 TS09580010006 O-Ring 1.5X2.2-M18x1.5 3
9 TS06582010006 Adjustable Right Angle Connector 1
10 TS06582030001 Distributor Oil Inlet Pipe Assembly 1
11 TS12582030003 Multi-Way Valve Oil Return Pipe Assembly 1
12 TS06582010012 Multi-Way Valve Assembly 1
13 GBT3738-L15 24° Cone Connectors–Straight Thread Elbow 2
14 TS12582030001 Multi-Way Valve Oil Inlet Pipe Assembly 1
15 FT65.55.139 Hollow Bolt 1
16 JBT982-27 Compound Seal Washer 2
17 TS06582010004 Rubber Pipe Limitation Plate 1
18 YC4.29A-07 Oil Drainage Pipe Clip 1
19 GBT93-8-AOP Standard Spring Washer 2
20 GBT5783-M8X16-8.8-A2L Hexagon Head Bolt 2
21 FT65.58J.112 Hollow Bolt 1
22 JBT982-24 Compound Seal Washer 2
23 TD924.582A-01 Joint 1
24 FT800.58A.010 Fp-L15e Single-Valve Distributor 1
25 FT904A.58.030 Distributor Bracket Weldment 1
26 GBT93-10-AOP Standard Spring Washer 5
27 GBT70.1-M10X25-8.8-A3L Hexagon Socket Head Cap Screw 2
28 GBT5783-M6X12-8.8-A2L Hexagon Head Bolt 2
TS06582010000 Hydraulic System Assembly 1
1 FT650.40.102 Hollow Bolt M20x1.5 6
2 JBT982-20 Compound Seal Washer 16
3 FT800.58A.107a Oil Pipe Connecting Block 1
4 TD924.582.4 Oil Cylinder Inlet Pipe Assembly 1 2
5 TD924.582.5 Oil Cylinder Inlet Pipe Assembly 2 2
6 GBT3733-L16A Straight Thread Connector-Body 6
7 TD924.582.1 Distributor Outlet Pipe Assembly 2 1
8 TD924.582.2 Distributor Outlet Pipe Assembly 1 1
9 GBT5782-M8X65-8.8-A2L Hexagon Head Bolt 2
10 GBT93-8-A0P Standard Spring Washer 2
11 GBT5782-M8X45-8.8-A2L Hexagon Head Bolt 2
12 TD924.582.6 Slow-Down Valve Assembly 2
TS06582010000 Hydraulic System Assembly 1
1 FT65.55.139 Hollow Bolt 2
2 JBT982-27 Compound Seal Washer 4
3 TA820.582.1 Oil Return Filter Outlet Pipe Assembly 1 1
4 Q67638 B-Type Worm Drive Hose Hoop 2
5 TD924.582.8 Oil Return Hose 1
6 GBT70.1-M8X25-8.8-A2L Hexagon Socket Button Head Screw 2
7 GBT93-8-A0P Standard Spring Washer 6
8 GBT3452.1-22.4X1.80G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
9 TD924.582.9 Oil Return Filter Outlet Pipe Assembly 1
10 GBT5783-M8X25-8.8-A2L Hexagon Head Bolt 4
11 GBT97.1-8-A0P Plain Washer 4
12 FT800.58A.105 Oil Return Filter Bracket 1
13 FT800.58A.040a Oil Return Filter Assembly 1
14 FT800.58A.037 Oil Return Filter Inlet Pipe Assembly 1
15 Q67645 B-Type Worm Drive Hose Hoop 2
16 FT904A.58.890 Oil Return Hose 1
TS06582010000K Hydraulic System Assembly 1
1 TS12582030014 Control Handle Head 1
2 GBT6170-M10-8-A3L Hexagon Nut, Style 1 1
3 TS12582030007 Distributor Control Assembly 1
3.1 TS12582030009 Distributor Control Press 1
3.1.1 TS12582030010 Control Handle Weldment 1
3.1.2 TB704.58A.11.1-01 Nylon Sleeve 2
3.2 TS12582030008 Sleeve 1
3.3 TS04552010001 Fixing Shaft 1
3.4 GBT894.1-20 Circlip For Shaft 2
4 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 2
5 GBT93-8-A0P Standard Spring Washer 2
6 TS12582030019 Connecting Sleeve Weldment 1
7 TS12582030012 Control Connecting Lever Assembly 1
7.1 TB504.552D.3-02 Left-Hand Pull Rod Fork 1
7.2 GBT6170-M8-LH-8-A2L Hexagon Nut, Style 1 1
7.3 TS12582030013 Control Connecting Lever 1
7.4 GBT6170-M8-8-A2L Hexagon Nut, Style 1 1
7.5 TS12582030021 Right-Hand Connecting Fork 1
8 GBT91-3.2X18-A0P Split Pin 1
9 GBT97.1-8-A0P Plain Washer 2
10 GBT882-B8X28-A0P Pin Shaft 1
11 GBT882-B8X30-A0P Pin Shaft 1
12 GBT91-3.2X16-A0P Split Pin 1
13 GBT6171-M12X1.25-8-A2L Hexagon Nut, Style 1 1
TS06582010000 Hydraulic System Assembly 1
1 GBT5783-M10X25-8.8-A3L Hexagon Head Bolt 2
2 GBT93-10-A0P Standard Spring Washer 2
3 GBT97.1-10 Plain Washer 2
4 TS12582030016 Upper Pull Rod Fixing Clamp Subassembly 1
4.1 FT800.56.263a Fixing Clip 1
4.2 TS12582030017 Connecting Plate Weldment 1
4.3 GBT97.1-8-A0P Plain Washer 1
4.4 GBT91-2.5X14-A0P Split Pin 1
5 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 3
6 GBT93-8-A0P Standard Spring Washer 3
7 TS04582010025 Handle End 2
8 TS04582010058 Multi-Way Valve Control Assembly 1
8.1 GBT894.1-14 Circlip For Shaft 2
8.2 GBT97.1-14-A0P Plain Washer 2
8.3 TS04582010043 Control Lever Press 2
8.4 TS04582010059 Installation Seat Weldment 1
9 TG1654.583C-01 Pin Shaft 2
10 GBT97.1-6-A0P Plain Washer 2
11 GBT91-2X14-A0P Split Pin 2
12 TS04582010027 Rubber Ring 2
13 TS06582010007 Flexible Shaft Mechanism Assembly 2
