Description

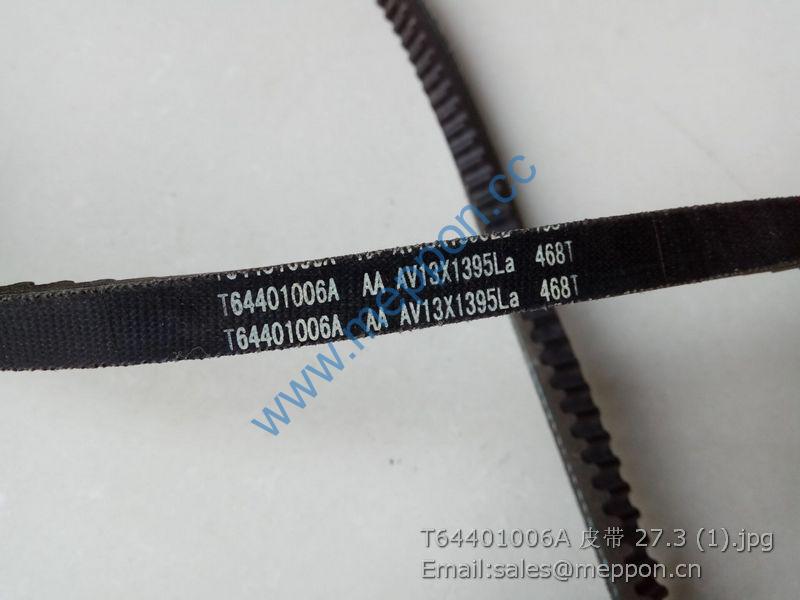

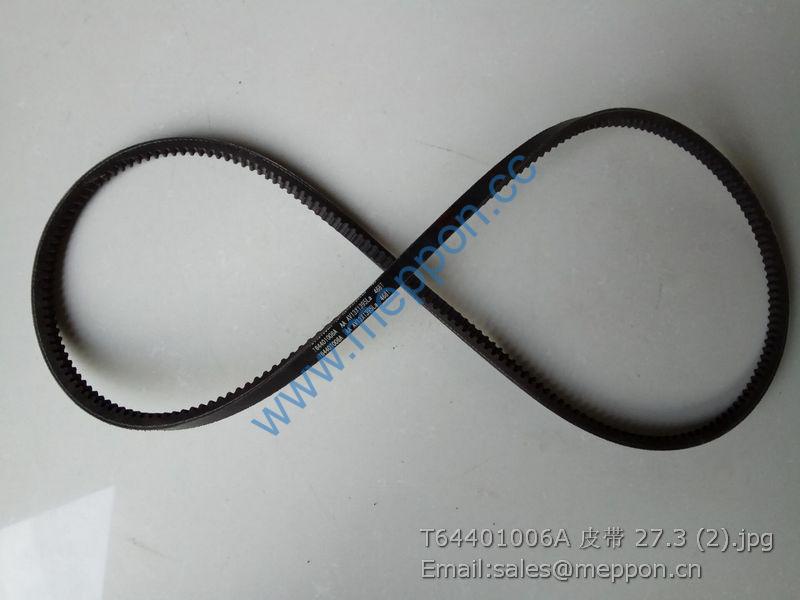

T64401006A FAN BELT LOVOL ENGINE PARTS

TS06312010000 Bracket Assembly 1
1 TS06312010001 Bracket 1
2 GBT 5782-M16X90-10.9-A2L Hexagon Head Bolt 2
3 TB604.312-04 Washer 8
4 GBT 5782-M16X80-10.9-A3L Hexagon Head Bolt 6
5 FT800.31.120 Bracket Connecting Sleeve 2

TS06313010000 Bracket Front Body Assembly 1
1 GBT 5786-M18X1.5X55-8.8-A3L Hexagon Head Bolt 4
2 GBT 93-18 Standard Spring Washer 6
3 GBT 6170-M18-8-A2L Hexagon Nut, Style 1 2
4 GBT 899-AM18X1.5-M18X45-8.8-A3L Double-Headed Stud 2
5 TS06313010001 Bracket Front Body 1

FT904.32F.001 Front Drive Wheel Assembly 1
1 TE354.34F.1.2 Inner Tube/Tyre Assembly 12.4-24 1
1.2 GBT 2979-12.4-24-6PR-R General Section Bias Tyre Of Tractor Drive Wheel 1
1.2 GBT 2979-12.4-24-R Inner Tube Of Tractor Drive Wheel 1
2 FT804.32F.010 Rim Spoke Combination 1
2.1 FT804.32.103 Front Drive Wheel Spoke 1
2.2 GBT 5785-M14X1.5X70-10.9-A3L Hex Bolt 6
2.3 FT804.32F.011 W10x24 Rim Welded Assembly 1
2.4 FT804.32.104 Washer 6
2.5 GBT 6171-M14X1.5-10-A3L Hex Nut, Style 1 6

FT820.34F.001 Rear Drive Wheel Assembly 1
1 FT800.34B.014 Inner Tube/Tyre Assembly 18.4-30 1
1.1 GBT 2979-18.4-30-10PR-R General Section Bias Tyre Of Tractor Drive Wheel 1
1.2 GBT 2979-18.4-30-R Inner Tube Of Tractor Drive Wheel 1
2 FT820.34F.011 Rim Spoke Assembly 1
2.1 FT804.34.107 Rim Bolt 8
2.2 FT800.34B.013 Spoke Welding 1
2.3 FT820.34F.012 Rim Welding 1
2.4 FT800.34.108 Plain Washer 8
2.5 GBT 6171-M16X1.5-10-A3L Hexagon Nut, Type 1 8

TS06401010000 Steering Wheel And Steering Column Assembly 1
1 GBT 5783-M10X25-8.8-A3L Hexagon Head Bolt 8
2 GBT 93-10-A0P Standard Spring Washer 8
3 TS04401010001 Steering Wheel Assembly 1
4 TS06401010002 Steering Column Assembly 1
5 TS06401010003 Connecting Plate 1
6 GBT 6170-M10-8-A3L Hexagon Nut, Style 1 4
7 FT804.40L.032 Steering Gear And Valve Block Assembly 1

TS06402010000 Fully Hydraulic Steering Pipeline Assembly 1
1 JBT 982-20 Compound Seal Washer 2
2 TD1100.402G-01 Joint Body M20-16 2
3 TS06402010007 Left Oil Outlet Pipe Assembly Of Steering Gear 1
4 TS06402010006 Right Oil Outlet Pipe Assembly Of Steering Gear 1
5 GBT 6170-M6-8-A2L Hexagon Nut, Type 1 2
6 GBT 93-6-A0P Standard Spring Washer 2
7 TD904.402X-03 Shock Absorbing Pad-01 1
8 TD904.402X-01 Clamping Plate -01 1
9 GBT 5783-M6X25-8.8-A2L Hexagon Head Bolt 2
10 FT800A.40.103 Fixing Plate 1
11 TD900.402D.2 Left Oil Delivery Tube Assembly 1
12 TD900.402D.3 Right Oil Delivery Tube Assembly 1
13 FT354.40C.121 Double-Pipe Clip 6
14 GBT 5783-M8X40-8.8-A2L Hexagon Head Bolt 3
15 GBT 93-8-A0P Standard Spring Washer 5
16 GBT 6170-M8-8-A2L Hexagon Nut, Type 1 3
17 GBT 5783-M8X16-8.8-A2L Hexagon Head Bolt 2
18 TD904.402B.1 Steering Rubber Pipe Assembly 2

TS06402010000 Fully Hydraulic Steering Pipeline Assembly 1
1 JBT 982-20 Compound Seal Washer 2
2 GBT 3733-L16A Straight Thread Connector-Body 1
3 TD1100.402G-01 Joint Body M20-16 1
4 TS06402010004 Steering Gear Oil Return Pipe Assembly 1
5 TS06402010005 Steering Gear Oil Inlet Pipe Assembly 1
6 Q67632 B-Type Worm Drive Type Hose Hoop 4
7 TS06402010003 Oil Return Hose 1
8 GBT 5781-M10X20-4.8-A3L Hexagon Head Bolt 2
9 TD1100.402B.1 Steering Oil Tank And Breather Assembly 1
10 GBT 93-10-A0P Standard Spring Washer 4
11 GBT 6170-M10-10-A3L Hexagon Nut, Style 1 2
12 FT800A.40.104 Oil Inlet Hose 1
13 TS06402010009 Oil Pump And Oil Suction Steel Pipe Assembly 1
14 TD904.402A-01 End Straight Jointm27-M24 1
15 JBT 982-27 Compound Seal Washer 1
16 GBT 70.1-M10X25-8.8-A3L Hexagon Socket Head Cap Screw 2
17 FT800A.40.028 Steering Pump Assembly 1
18 TS06402010002 Oil Pump Oil Delivery Steel Pipe Assembly 1
19 GBT 6170-M6-8-A2L Hexagon Nut, Style 1 3
20 GBT 93-6-A0P Standard Spring Washer 3
21 FT800.40L.108 Short Oil Pipe Clip 2
22 GBT 5781-M6X25-4.8-A2L Hexagon Head Bolt 1
23 TD904.402X-04 Shock Absorbing Pad-02 1
24 TD904.402X-02 Clamping Plate-02 1
25 GBT 5783-M6X25-8.8-A2L Hexgaon Head Bolt 2
26 JBT 982-18 Compound Seal Washer 2
27 FT700.40G.109 Hollow Bolt 1
28 FT800A.40.108 Transmission Sleeve 1
