Description

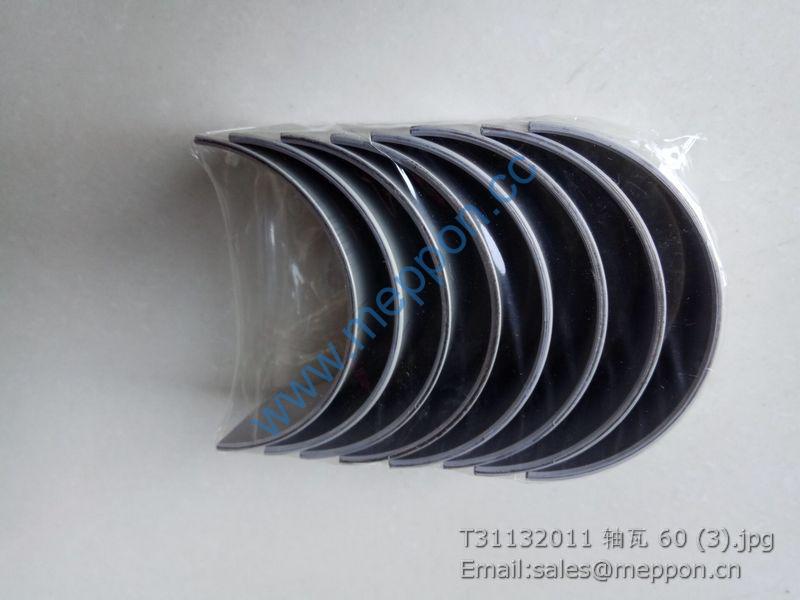

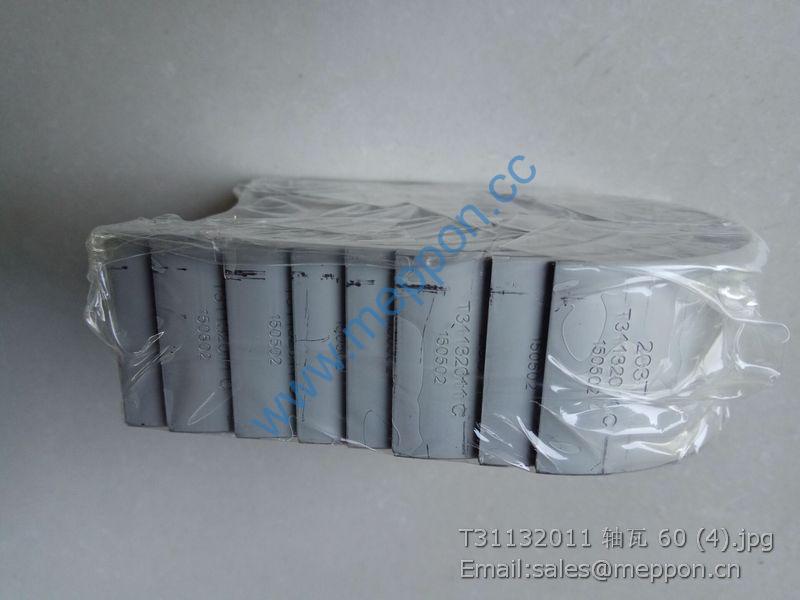

T31132011 lovol rod bearing
TC05373030000 Gearbox Control Mechanism Assembly 1
1 TF1004.373-03 Seal Sleeve 1
2 TD800A.373-01 Special-Purpose Bolt M10x75 2
3 GBT93-10-A0P Standard Spring Washer 11
4 GBT5783-M10X25-8.8-A3L Hexagon Head Bolt 3
5 TD1000.373B-03 Positioning Plate 1
6 GBT5783-M10X20-8.8-A3L Hexagon Head Bolt 1
7 FT800A.37.327 Shift Limitation Plate 1
8 GBT93-8-A0P Standard Spring Washer 2
9 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 2
10 Q72214 Bowl-Type Expansion Plug 1
11 FT800.37.161c Ⅰ – Ⅱ Gear Shift Fork 1
12 TD1000.373B-04 Middle Shift Fork Shaft 1
13 FT800.37.163 Assistant Shift Fork 1
14 GBT5783-M10X30-8.8-A3L Hexagon Head Bolt 5
TC05373030000 Gearbox Control Mechanism Assembly 1
TC05373030001 Side Control Mechanism Assembly 1
1 TC05373030002 Assistant Shift Control Lever 1
2 GBT6170-M10-8-A3L Hexagon Nut, Style 1 2
3 FT800A.37.032b Assistant Shift Control Lever Weldment 1
4 TS06373010001 Main Shift Control Lever 1
5 FT800A.37.031a Main Shift Control Lever Weldment 1
6 QLWZB140-8X35 Spring-Type Straight Pin 2
7 QLWZB140-5X32 Spring-Type Straight Pin 3
8 GBT893.1-40 Circlip For Hole 2
9 FT800A.37.305 Nylon Seat 2
10 FT800A.37.306a Lower Control Lever 1
11 TD800A.373B.1-03a Lower Control Lever 1
12 FT800A.37.307 Rubber Sleeve 2
13 GBT70.1-M10X20-8.8-A3L Hexagon Socket Button Head Screw 6
14 GBT93-10-A0P Standard Spring Washer 6
15 TD800A.373B.1-04 Assistant Shift Lever Bracket 1
16 Q72224 Bowl-Type Expansion Plug 2
17 FT800A.37.326 Shift Lever Positioning Pin 4
18 FT800A.37A.244 Hot-Dip Galvanized Steel Wire Ⅰ -1.4 2
19 FT800A.37N.308a Side Control Cover 1
20 FT800A.37.309 Side Control Lower Cover 1
21 GBT93-8-A0P Standard Spring Washer 8
22 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 8
23 TD800A.373B.1-02c Shift Lever Control Head 1
24 TF1254.373.1-02 Return Spring 2
25 FT800A.37.314 Spacing Sleeve 1
26 FT800A.37.313a Assistant Shift Control Lever 1
27 FT800A.37.312b Main Shift Control Lever 1
28 FT800A.37.315a Inner Control Shift Head 1
29 QLWZB140-8X32 Spring-Type Straight Pin 8
30 FT800A.37.304a Shift Lever Bracket 1
31 FT800A.37.310b Outer Control Shift Head 1
32 FT800A.37.404a Inner Control Shift Head 1
33 TB604.374B.1-14 Circlip For Shaft 2
34 TB604.374B.1-15 Shift Lever Spring 2
35 GBT97.1-16-A0P Plain Washer 2
TC05374010000 Creeper Gear Mechanism Assembly 1
1 FT800.37.194 Fastening Screw 2
2 TD800A.374B-01 Creeper Gear Shift Head 1
3 FT800A.37A.244 Hot-Dip Galvanized Steel Wire Ⅰ -1.4 2
4 TC05374010001 Creeper Gear Shift Fork Shaft 1
5 GBT308-10-G100-b Steel Ball 1
6 FT800.37.139 Spring 1
7 GBT5783-M12X35-8.8-A3L Hexagon Head Bolt 1
8 GBT6172.1-M12-04-A3L Hexagon Thin Nut 1
9 FT800.37A.225 High-Low-Gear Shift Fork 1
10 FT800.37A.218 Creeper Gear Engaging Sleeve 1
11 GBT893.1-175 Circlip For Hole 1
12 FT800.37A.216a Planet Carrier Backing Plate 1
13 FT800.37A.230a Wear-Resistant Gasket 2
14 FT800.37A.018 Planet Carrier Mechanism Assembly 1
14.1 FT800.37A.024 Planet Carrier Weldment 1
14.2 FT800.37A.212 Planet Gear Ring 6
14.3 FT800.37A.214 Rolling Needle Spacing Ring 6
14.4 FT800.37A.211 Planet Gear 3
14.5 GBT309-4X25.8-G2X-2X-4 Rolling Needle 57
14.6 FT800.37A.213 Planet Gear Shaft 3
15 GBT5783-M10X25-10.9-A3L Hexagon Head Bolt 6
16 FT800.37A.210a Inner Gear Ring 1
17 GBT93-10-A0P Standard Spring Washer 6
18 Q72220 Bowl-Type Expansion Plug 1
TC05382010000 Rear Axle Central Transmission Assembly 1
1 FT800.38.108 Left Bearing Seat 1
2 FT800.38.221 Adjusting Gasket On Demand
3 FT800.38.113 Differential Lock Meshing Sleeve 1
4 GBT 276-6306 Deep Grooved Ball Bearing 1
5 FT800.38.106 Right Bearing Seat 1
6 FT800.38.123 Pressing Plate 1
7 FT800.38.124 Lock Piece 1
8 GBT 93-12-A0P Standard Spring Washer 4
9 GBT 5783-M12X35-8.8-A3L Hexagon Head Bolt 4
10 GBT 5783-M10X25-8.8-A3L Hexagon Head Bolt 2
11 FT800.38.208 Adjusting Gasket On Demand
12 FT800.38.011 Small Bevel Gear Assembly 1
12.1 FT800.38.126 Small Bevel Gear 1
12.2 GBT 297-32311 Bearing 1
12.3 FT800.38.205 Small Bevel Gear Bearing Seat 1
12.4 GBT 297-30310 Bearing 1
12.5 FT800.38.207 Round Nut 2
12.6 GBT 858-50 Thrust Washer For Round Nut 1
13 GBT 895.2-30 Steel-Wire Circlip For Shaft 1
14 FT800.38.125 Pto Middle Shaft 1
