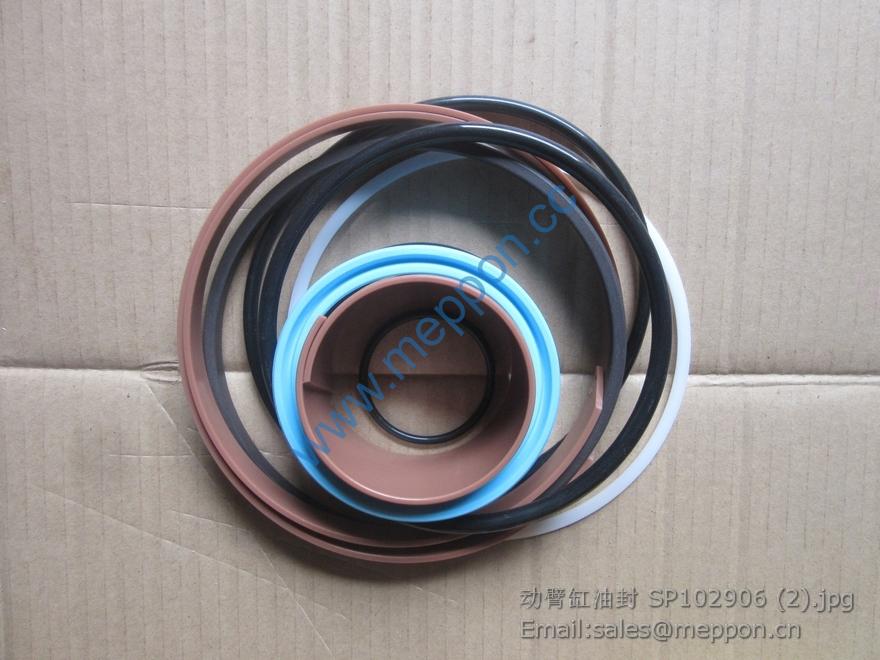

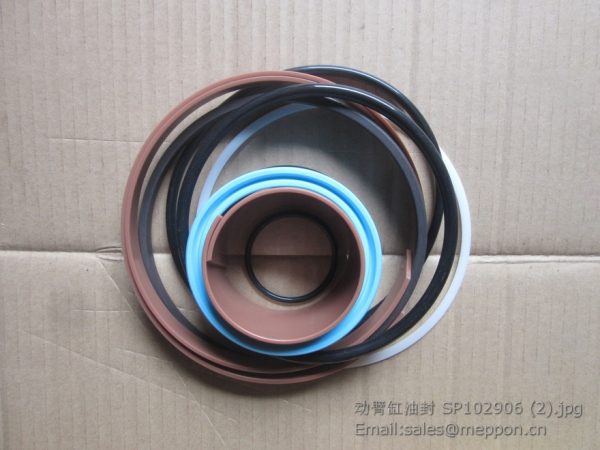

SP102906 liugong lift cylinder kits

114 1765-00069 高低挡拨叉 Fork 1
115 1700-00178 高低挡滑套 Sleeve 1
116 1700-00173 齿轮 Gear 1
117 1700-00317 钢花键垫 Washer 2
118 1700-00177 止推垫 Thrust cushion 2
119 1700-00315 输出轴 Output shaft 1
120 1700-00811 低速齿轮套 Sleeve 1
121 1700-00788 齿轮 Gear 1
122 1700-00766 前输出法兰总成 Front output
Flang
1
123 1700-00147 调整垫片 t0.05 Adjusting shim 2
1700-00148 调整垫片 t0.1 Adjusting shim 1
1700-00149 调整垫片 t0.15 Adjusting shim 2
1700-00150 调整垫片 t0.3 Adjusting shim 2
1700-00151 调整垫片 t0.5 Adjusting shim 2
1700-00152 调整垫片 t1 Adjusting shim 1
124 9401-00990 GB/T5782-2000 螺栓
M24X90-Ep.Zn
Blot 8
125 1700-01757
1700-01758
挂板总成
挂板总成
Support assy
Support assy
1
1

126 9401-01684 GB/T93-1987 垫圈 24-Ep.Zn Washer 8
127 9401-01328 GB/T6170-2000 螺母 M24-Ep.Zn Not 8
128 9401-02526 GB/T5783-2000 螺栓
M16X40-Ep.Zn
Blot 14
129 9401-01676 GB/T93-1987 垫圈 16-Ep.Zn Washer 14
130 9401-01750 GB/T97.1-2002 垫圈 16-Ep.Zn Washer 8
131 1700-01759
1700-01760
挂板总成
挂板总成
Support assy
Support assy
1
1

132 9401-01274 GB/T5782-2000 螺栓
M16X80-10.9
Bolt 4
133 1700-00126 轴座下盖 Cover 2
134 1700-00116 轴座上盖 Cover 2
135 1714-03440 挡套 Spring ring 1X4
136 1700-00814 轴承座 Cover 2

137 1700-00812 高速齿轮套 Sleeve 1
138 1714-00155 油堵 Plug 2

1 9401-01566 GB/T889.1-2000 螺母
M12-Ep.Zn
Nut 40
2 9401-01067 GB/T5783-2000 螺栓
M12X45-10.9-Ct.D3
Bolt 40
3 2203-00057 传动轴 Driving Shaft 2
4 9401-00894 GB/T5782-2000 螺栓
M16X70-Ep.Zn
Bolt 4
5 9401-01750 GB/T97.1-2002 垫圈 16-Ep.Zn Washer 4
6 9401-01573 GB/T889.1-2000 螺母
M16-Ep.Zn
Nut 4
7 2203-00054 中间支撑总成 Middle support
ass’y
1
8 2202-00028 中间传动轴 XCZE6.22.2 Middle driving
Shaft
1
9 2200-00131 锁片 Lock plate 4
10 9401-01236 GB/T5786-2000 螺栓
M12X1.5X30-10.9-Ct.D3
Bolt 8
11 9401-01088 GB/T5783-2000 螺栓
M14X45-10.9-Ct.D3
Bolt 8
12 9401-01570 GB/T889.1-2000 螺母
M14-Ep.Zn
Nut 8
13 2200-00124 变矩器传动轴 XCZE6.22.4 Torque converter
driving shaft
1
14 9401-04442 GB13871-1992 油封 FW
70X90X10
Oil Seal 2
15 9401-03452 GB/T276-1994 轴承 6311-2Z Bearing 2

1 9401-02345 GB/T32.1-1988螺栓M18X45-Ep.Zn Bolt 14
2 9401-01678 GB/T93-1987 垫圈 18-Ep.Zn Washer 14
3 9401-01322 GB/T6170-2000 螺母 M18-Ep.Zn Nut 2
4 9401-01678 GB/T93-1987 垫圈 18-Ep.Zn Washer 2
5 9401-01752 GB/T97.1-2002 垫圈 18-Ep.Zn Washer 2
6 2400-00466 双头螺栓 Bolt 2
7 2400-00467 锥套 Taper sleeve 2
8 2302-00185 前桥主传动总成 Front main speed
reducer assembly
1
9 2402-00941 后桥主传动总成 Rear main speed
reducer assembly
1
10 2300-00023 螺塞 Oil level plug 2
11 9401-00663 GB1235-1976 O 形圈 32X3.5 O-ring 2
12 9411-00162 连接螺栓 Bolt 16
13 9401-01699 GB/T93-1987 垫圈 20-Ep.Zn Washer 16
14 3500-00091 制动钳 Z4J Brake tongs 4
15 9401-01904 JB/T982-1977 垫圈 24 Washer 1
16 2400-00459 透气塞 Air vent seat 1
17 2301-00177 前桥轴 Front axle
housing assembly
1
18 2401-00559 后桥轴 Rear axle housing
assembly
1
19 2305-00187 左轮边减速器总成 Left wheel
reduction gear
assembly
1
20 2305-00201 右轮边减速器总成 Right wheel
reduction gear
assembly
1
21 2300-00268 左轮辋螺母 Nut 16
22 2300-00269 右轮辋螺母 Nut 16
