Description

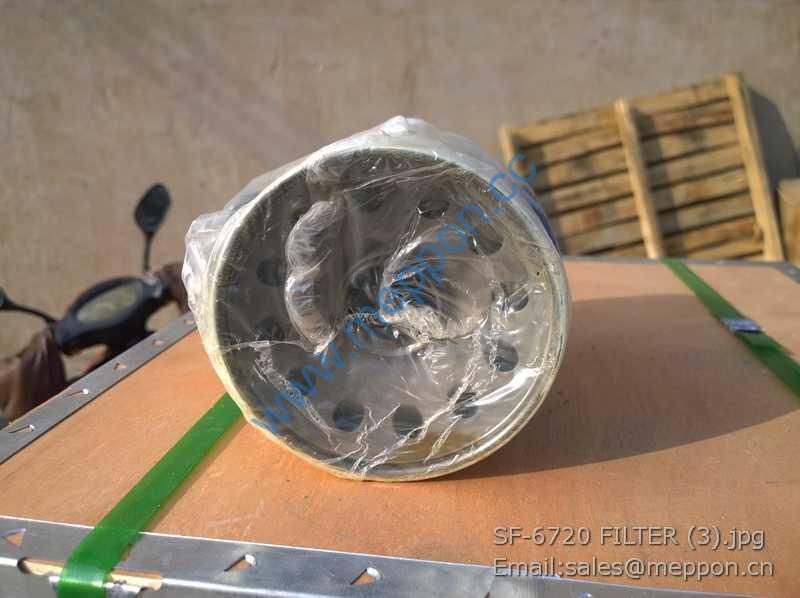

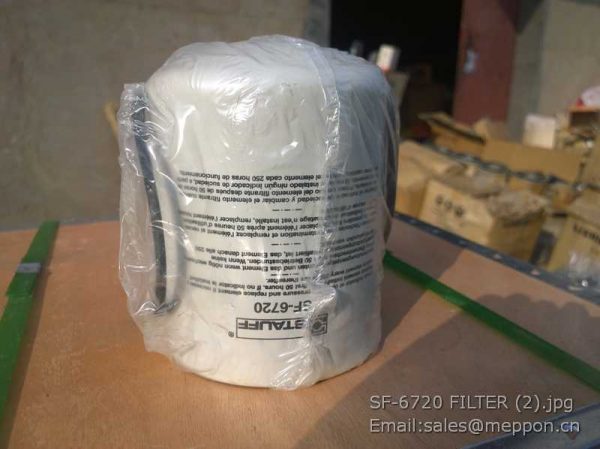

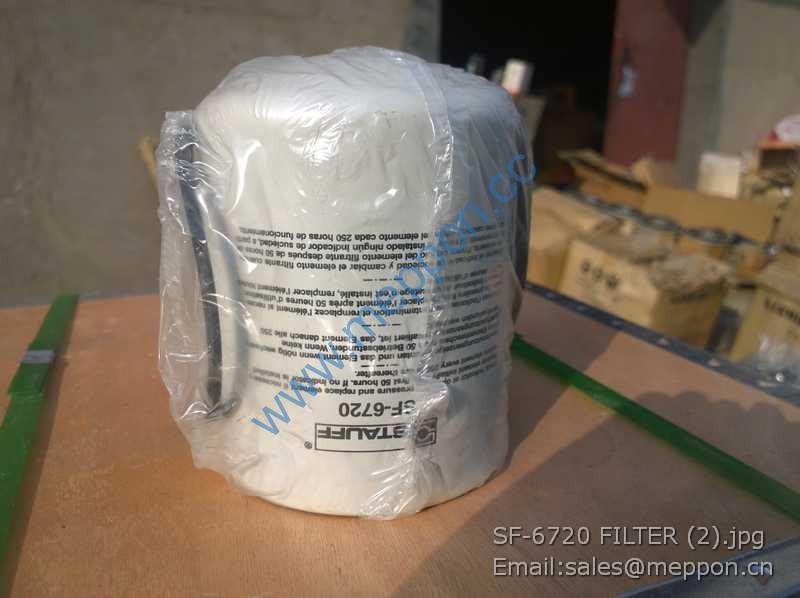

SF-6720 FILTER STAUFF

A3206-1005360A 飞轮及齿圈组件 Flywheel and gear ring subassembly 1
2 6QA1-1005044A 飞轮螺栓 Flywheel bolt 8
3 GB/T276-6205-2RS 深沟球轴承 Deep-groove ball bearing 1
4 397A-1005011 轴承衬垫 Bearing bushing 1
5 6105Q-1600011 扁销 Flat pin 1
6 Q1841445TF2 螺栓 M14X45 Bolt M14X45 2
7 A3200-1600401B 飞轮壳 Flywheel shell 1
8 330-1600016 离合器壳垫片 Clutch shell gasket 1 易损件 EWP
9 Q1840612 螺栓 M6X12 Bolt M6X12 5
10 B3000-1600021 盖板 Cover plate 1
11 6QA1-1600016 盖板-飞轮壳 Cover plate-flywheel housing 1
12 Q1841235TF2 螺栓 M12X35 Bolt M12X35 2
13 Q1841245TF2 螺栓 M12X45 Bolt M12X45 6
14 150-1002062 曲轴后油封 Crankshaft rear oil seal 1
15 YC24-B1224 圆柱销 12X24 Straight pin 12X24 1

M36L1-3407002 传动套 Driving sleeve 1
2 YC208-B05800F O 形圈 2.65×58 O-ring 2.65×58 1 易损件 EWP
3 A3007-3407100 转向泵 Steering pump 1
4 Q40110 垫圈 10 Washer 10 2
5 Q40310 垫圈 10 Washer 10 2
6 Q150B1030 螺栓 M10×30 Bolt M10×30 2
7 G0402-3407003 转向泵进油接头 Oil inlet joint, Steering pump 1
8 YC208-M02360F O 形圈 2.4×23.6 O-ring 2.4×23.6 1 易损件 EWP
EWP= Easy Wear Part

1 6QA6-1307017 管接螺栓 Pipe connecting bolt 4
2 Q/YC149-14 复合式密封垫圈 14 Compound Seal washer 14 8 易损件 EWP
3 J6000-3509440 空压机回水管组件 Air compressor water return parts 1
4 A440B-3509100 空气压缩机 Air compressor 1
5 J6000-3509005 空压机进水管 Air compressor water inlet pipe 1
6 L3000-3509009 空压机垫片 Air compressor gasket 1 易损件 EWP
7 A3000-3509018 空压机齿轮 Air compressor gear 1
8 Q150B1085 螺栓 M10X85 Bolt M10X85 1
9 Q150B1040 螺栓 M10X40 Bolt M10X40 2
10 Q40310 垫圈 10 Washer 10 3
11 Q340B10 螺母 M10 Nut M10 3
12 A3515-3509240 空压机进油管组件 Air compressor oil inlet pipe subassembly 1
13 M3000-1002701A 过油螺栓 Oil hollow bolt 3
14 Q/YC149-10 复合式密封垫圈 10 Compound Seal washer 10 6 易损件 EWP
15 A4130-3509011 空压机进气接头 Air compressor intake joint 1
16 G4606-3509014 密封垫片 Seal gasket 2 易损件 EWP
17 173D-3509012A 排气接头 Exhaust joint seat 1
