Description

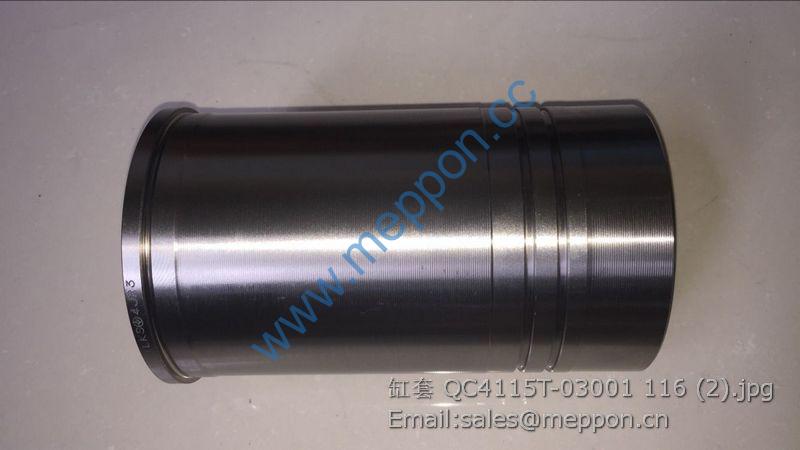

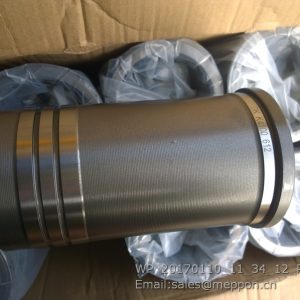

QC4115T-03001 QUANCHAI CYLINDER LINER

FT300.38.012 Differential Assembly 1
1 GBT297-2007113 Bearing 1
2 GBT6170-M12-A3L Nut 8
3 FT300.38.152 Locking Washer 4
4 FT300.38.181 Differential Cover 1
5 FT300.38.147 Half Shaft Gear Gasket 2
6 FT300.38.144 Right Half Shaft Gear 1
7 FT300.38.148 Planet Gear Gasket 4
8 FT300.38.145 Planet Gear 4
9 FT300.38.182 Long Planet Gear Shaft 1
10 FT300.38.183 Short Planet Gear Shaft 2
11 FT300.38.184 Central Ring 1
12 FT300.38.143 Left Half Shaft Gear 1
13 FT300.38.180 Differential Housing 1
14 FT300.38.141 Large Cone Gear 1
15 FT300.38.185 Planet Gear Shaft Thrust Bolt 4
16 FT300.38.019 Differential Lock Assembly 1
17 GBT297-30211 Bearing 1
18 FT300.38.186 Large Cone Gear Fixing Bolt 4

TS04383010000 Differential Lock Control Mechanism Assembly 1
1 GBT3452.1-15.0X2.65G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
2 FT300.38.158a Differential Lock Shift Fork Shaft 1
3 FT300.38.160 Differential Lock Retraction Spring 1
4 FT300.38.159a Differential Lock Shift Fork 1
5 FT300.38.190 Differential Lock Shift Block 1
6 GBT879.1-6X40 Spring-Type Straight Pin 1
7 GBT879.2-3.5X40 Spring-Type Straight Pin 1
8 GBT5781-M8X45-4.8-A2L Hexagon Head Bolt 1
9 GBT91-2X14-A0P Split Pin 1
10 GBT879.1-6X35 Spring-Type Straight Pin 1
11 GBT879.2-3.5X35 Spring-Type Straight Pin 1
12 TS04383010003 Rocker Arm Weldment 1
13 Q72220 Bowl-Shape Expansion Plug 1
14 TS04383010001 Differential Lock Pedal Unit 1
15 GBT882-B6X28 Pin Shaft 1
16 GBT97.1-6-A0P Plain Washer 1
17 GBT6170-M8-8-A2L Hexagon Nut, Style 1 1
18 TG1204.435.4 Seal Lining Seat Assembly 1
18.1 TG1204.435.2-01 Spherical Shaft Seat 1
18.2 TG1204.435.2-02 Spherical Shaft Lining 1
18.3 GBT93-6 Standard Spring Washer 1
18.4 GBT818-M6X14-4.8-A2L Cross Recessed Pan Head Screw 1
19 TB554.383-05 Adjusting Washer On Demand
20 TB554.383-06 Adjusting Washer On Demand
21 TB554.383-07 Adjusting Washer On Demand
22 TB554.383-08 Adjusting Washer On Demand

TC02384010000K Rear Axle Housing Assembly 1
1 TB604.384-01 Rear Axle Housing 1
2 TB604.384.4 Oil Dipstick Assembly 1
3 TC02384010001K Oil Dipstick Pipe Weldment 1
4 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 2
5 GBT93-8-A0P Standard Spring Washer 2
6 GBT3452.1-15.0X2.65G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
7 FT300.38J.206 Reverse Gear Side Cover 1
8 GBT93-10-A0P Standard Spring Washer 9
9 GBT5783-M10X25-8.8-A3L Hexagon Head Bolt 5
10 GBT5782-M10X60-8.8-A2L Hexagon Head Bolt 1
11 GBT70.1-M8X20-8.8 Hexagon Socket Head Cap Screw 2
12 GBT93-12-A0P Standard Spring Washer 24
13 GBT6171-M12X1.25-10-A2L Hexagon Nut, Style 1 24
14 GBT119.1-12m6X28-A0P Column Pin 2
15 FT65.38.026 Oil Plug Assembly 1
16 TB554.384-02 Pin 4
17 GB899-AM12-M12X1.25X150-10.9-A2L Double-Headed Stud 22
18 TB604.384.3 Rear Axle Oil Filler Assembly 1
18.1 TB604.384.3.1 Oil Filler Welding Assembly 1
18.2 TB604.384.3.2 Oil Filler Plug Assembly 1
19 GBT3452.1-32.5X1.80G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
20 GB899-AM12-M12X1.25X160-10.9-A2L Double-Headed Stud 2

TS04385010000 Shuttle Shift Control Mechanism Assembly 1
1 TS04385010008 Shuttle Shift Control Mechanism Assembly 1
2 TS04385010003 Bracket Weldment 1
3 GBT93-8-A0P Standard Spring Washer 2
4 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 2
5 GBT93-6-A0P Standard Spring Washer 2
6 GBT70.1-M6X20-10.9-A3L Hexagon Socket Button Head Screw 2
7 TG1654.373B.1-01 Pin Shaft 2
8 GBT97.1-8-A0P Plain Washer 2
9 GBT91-3.2X20-A0P Split Pin 2
10 TD950.373.2-02 Bush 2
11 GBT894.2-20 Circlip For Shaft 1
12 TB604.385.3 Shuttle Shift Flexible Shaft Subassembly 1
13 TB604.385-02 Rocker Arm 1
14 GBT879.1-3.5X28 Spring-Type Straight Pin 2
15 GBT879.1-6X28 Spring-Type Straight Pin 2
16 GBT3452.1-16.0X2.65G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
17 TB554.385A-01 Shift Lever Shaft Bush 1
18 TB554.385-01 Shifting Lever Rocker Arm 1
19 FT300.38J.203 Fork Shaft, Reverse Gear 1
20 FT300.38J.218 Shift Fork, Reverse Gear 1
21 GBT308-9.5-G100-b Steel Ball 1
22 FT704.42B.163 Retaining Spring, Fork Shaft 1
23 GBT91-4X32-A0P Split Pin 1
24 TB400.385-09 Bolt 2
25 GBT93-10-A0P Standard Spring Washer 4
26 TB604.385.2 Support Plate Weldment 1
27 GBT5783-M10X25-8.8-A3L Hexagon Head Bolt 2
28 FT800A.48L.101 Wire Through Ring (1) 1
29 TS04385010005 Shuttle Shift Control Lever Weldment 1

TB450.391 Left Final Transmission Assembly 1
1 TB450.391-02 Final Transmission Gear Ring 1
2 TB450.391-01 Left Final Transmission Half Axle 1
3 FT300.39.110 Driving Shaft Lock Disc 1
4 FT300.39.112 Driving Shaft Lock Bolt 1
5 TB450.391.1 Final Transmission Planet Carrier Assembly 1
5.1 FT300.39.111 Stop Block 1
5.2 FT300.39.104 Planetary Carrier 1
5.3 FT300.39.109 Rolling Needle Outer Spacing Ring 6
5.4 TB450.391.1-01 Final Transmission Planetary Gear 3
5.5 GBT309-P5X23.8-G2 Rolling Needle 132
5.6 FT300.39.105 Rolling Needle Inner Spacing Ring 3
5.7 GBT879.1-5X26 Spring Column Pin 3
5.8 GBT879.1-8X26 Spring Column Pin 3
5.9 FT300.39.106 Planetary Wheel Shaft 3
6 FT300.39.121 Adjusting Gasket On Demand
7 FT300.39.122 Adjusting Gasket On Demand
8 FT300.39.123 Adjusting Gasket On Demand
9 FT300.39.113 Spacing Sleeve 1
10 GBT276-6211 Deep Groove Ball Bearing 1
11 FT300.39.115 Left Driving Shaft Housing 1
12 GBT276-6212 Deep Groove Ball Bearing 1
13 GBT9877.1-FB70X95X10D Skeleton Oil Seal 2
14 GBT3452.1-115X3.55G O-Ring 1
15 FT300.39.116 Oil Seal Seat 1
16 GBT93-12-A0P Standard Spring Washer 4
17 GBT5783-M12X30-A3L Hexagon Bolt 4
18 FT300.39.136 Rear Hub Bolt (Left) 8
19 FT300.39.118 Driving Shaft 1
20 FT300.39.137 Washer 8
21 GBT6176-M16X1.5-LH-10-A3L Nut 8

TB450.392 Right Final Transmission Assembly 1
1 GBT6176-M16X1.5-10-A3L Nut 8
2 FT300.39.137 Washer 8
3 FT300.39.118 Driving Shaft 1
4 FT300.39.135 Rear Hub Bolt 8
5 GBT5783-M12X30-A3L Hexagon Bolt 4
6 GBT93-12-A0P Standard Spring Washer 4
7 FT300.39.116 Oil Seal Seat 1
8 GBT3452.1-115X3.55G O-Ring 1
9 GBT9877.1-FB70X95X10D Skeleton Oil Seal 2
10 GBT276-6212 Deep Groove Ball Bearing 1
11 FT300.39.114 Right Half Axle Housing 1
12 GBT276-6211 Deep Groove Ball Bearing 1
13 FT300.39.113 Spacing Sleeve 1
14 FT300.39.121 Adjusting Gasket On Demand
15 FT300.39.122 Adjusting Gasket On Demand
16 FT300.39.123 Adjusting Gasket On Demand
17 TB450.391.1 Final Transmission Planet Carrier Assembly 1
17.1 FT300.39.104 Planetary Carrier 1
17.2 FT300.39.111 Stop Block 1
17.3 GBT879.1-5X26 Spring Column Pin 3
17.4 GBT879.1-8X26 Spring Column Pin 3
17.5 FT300.39.106 Planetary Wheel Shaft 3
17.6 FT300.39.109 Rolling Needle Outer Spacing Ring 6
17.7 TB450.391.1-01 Final Transmission Planetary Gear 3
17.8 GBT309-P5X23.8-G2 Rolling Needle 132
17.9 FT300.39.105 Rolling Needle Inner Spacing Ring 3
18 FT300.39.112 Driving Shaft Lock Bolt 1
19 FT300.39.110 Driving Shaft Lock Disc 1
20 TB450.392-01 Right Final Transmission Half Axle 1
21 TB450.391-02 Final Transmission Gear Ring 1
