Description

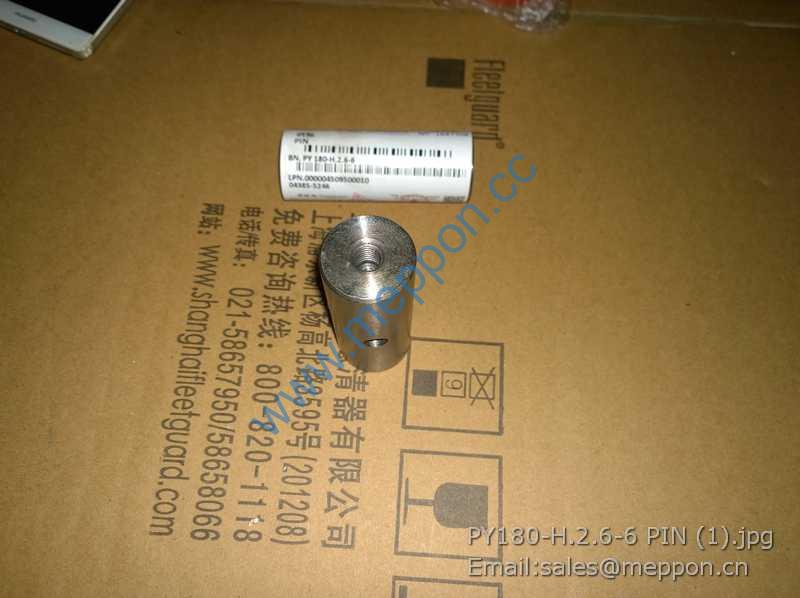

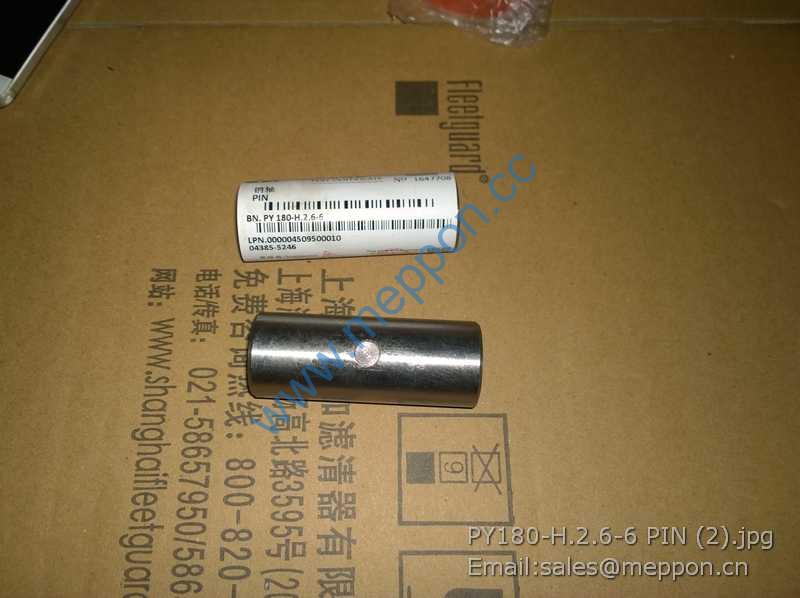

PY180-H.2.6-6 PIN GRADER PARTS
Q1840825TF2 螺栓 M8X25 Bolt M8X25 4
26 J5600-1111304 接头 Joint 1
27 YC208-B04250F O 形圈 2.65X42.5 O-ring 2.65X42.5 1 易损件 EWP
28 Q1200885 螺柱 M8X85 Bolt stub M8X85 2
29 Q1200875 螺柱 M8X75 Bolt stub M8X75 1
30 Q1840875TF2 螺栓 M8X75 Bolt M8X75 1
31 150-1003040F 加机油口盖组件 Oil filler cap assembly 4
32 L3000-1002084A 空压机惰齿轮座 Air compressor idler gear seat 1
33 A3000-1002041 空压机惰齿轮组件 Air compressor idler gear subassembly 1
34 231-1002087 惰齿轮减磨板 Idler gear wear reduction plate 1
35 Q1840820TF2 螺栓 M8X20 Bolt M8X20 2
36 YC208-B02000F O 形圈 2.65X20 O-ring 2.65X20 1 易损件 EWP
37 A3000-1002085B 惰齿轮座螺栓 Idler gear seat bolt 1
L3000-1007013 气门锁夹 Valve stem locks 48 易损件 EWP
2 J5600-1003116 气门弹簧上座 Valve spring upper seat 24 易损件 EWP
3 J5600-1003106 气门弹簧 Valve spring 24 易损件 EWP
4 L3000-1003105SF1 气门杆油封 Valve stem seal 24 易损件 EWP
5 J5600-1003104 气门导管 Valve guide pipe 24 易损件 EWP
6 L3000-1003036A 前吊耳 Front lifting eye 1
7 Q1841225TF2 螺栓 M12×25 Bolt M12×25 5
8 J5600-1003201 气缸盖罩垫片 Cylinder head cover gasket 1 易损件 EWP
9 J5600-1003171A 气缸盖 Cylinder head 1
J5600-1003170 气缸盖组件 Cylinder head subassembly 1
10 A6000-1003001 气缸盖垫片 Cylinder head gasket 1 易损件 EWP
11 J5600-1003173A 进气门座圈 Intake valve seat ring 12 易损件 EWP
12 J5600-1003111 进气门 Intake valve 12 易损件 EWP
13 J5600-1003174A 排气门座圈 Exhaust valve seat ring 12 易损件 EWP
14 J5600-1003103 排气门 Exhaust valve 12 易损件 EWP
15 A30-1003035A 缸盖短螺栓 Cylinder head short bolt 26 易损件 EWP
16 Q40306 垫圈 Washer 9
17 Q150B0612 螺栓 M6X12 Bolt M6X12 9
18 Q72230 塞片 30 Patch 30 14
19 L3000-1003206 瓦塄钢丝团 Corrugated steel wire mass 1
20 Q61904 螺塞 NPT 1/2 Screw plug NPT 1/2 6
21 L3000-1003151 后吊耳 Rear lifting eye 1
22 J5600-1003270 盖板组件 Covering plate subassembly 1
23 Q1840830 螺栓 M8X30 Bolt M8X30 17
24 J5600-1003205A 气缸盖罩 Cylinder head cover 1
25 J5600-1003248 加机油口垫片 Oil filler gasket 1 易损件 EWP
26 Q1840816 螺栓 M8X16 Bolt M8X16 4
27 150-1003043C 密封圈 Seal ring 1
28 150-1003041F 加机油口盖 Oil filler cover 1 易损件 EWP
29 J5600-1003243 加机油口 Oil filler 1
30 YC208-B02580F O 形圈 2.65X25.8 O-ring 2.65X25.8 6
31 J5600-1003176 喷油器铜套 Injector copper sleeve 6
32 L3000-1003088 气缸盖定位销套 Cylinder head dowel pin sleeve 2 易损件 EWP
A30-1004016 第一道气环 First gas ring 6 易损件 EWP
2 A30-1004017 第二道气环 Second gas ring 6 易损件 EWP
3 A30-1004030 油环总成 Oil ring assembly 6 易损件 EWP
A30-1004016* 活塞环组件 Piston ring subassembly 1 包含(including)1、2、3 项
4 A6000-1004001 活塞 Piston 6
5 A30-1004019 活塞销 Piston pin 6
6 Q43040 挡圈 40 Retainer ring 12 易损件 EWP
7 A3000-1004202 连杆衬套 Connecting rod bushing 6
8 A3000-1004201 连杆体 Connecting rod body 6
9 A30-1004005 连杆轴瓦 Connecting rod bearing shell 12 易损件 EWP
10 A3000-1004203 连杆盖 Connecting rod cover 6
11 6105Q-1004054 连杆螺栓 Connecting rod bolt 12 易损件 EWP
A3100-1005034A 皮带轮螺栓 Pulley bolt 6
2 L3000-1005017 组合垫圈 Compound washer 6
3 A3100-1005032E 皮带轮 Belt pulley 1
4 YC24-0814 圆柱销 8×14 Straight pin 8×14 1
5 J5600-1005040A 硅油减振器 Silicon oil vibration damper 1
6 A3100-1005033 环垫 Ring washer 1
7 Q218B1025TF2 螺钉 M10×25 Screw M10×25 6
8 A3100-1005021B 曲轴正时齿轮 Crankshaft timing gear 1
9 A3100-1005018 扁销 Flat pin 2
10 A3100-1005019A 曲轴 Crankshaft 1
11 A30-1005054 主轴瓦（上） Main bearing shell(upper) 7 易损件 EWP
12 6105Q-1005058A 曲轴止推片 Crankshaft thrust plate 4 易损件 EWP
13 YC24-B1226 圆柱销 12×26 Cylindrical pin 12X26 1
14 A30-1005055 主轴瓦（下） Main bearing shell(lower) 7 易损件 EWP
15 A3512-1005015 附加皮带轮 Additional belt pulley 1
16 Q1841035TF2 螺栓 M10X35 Bolt 4
