Description

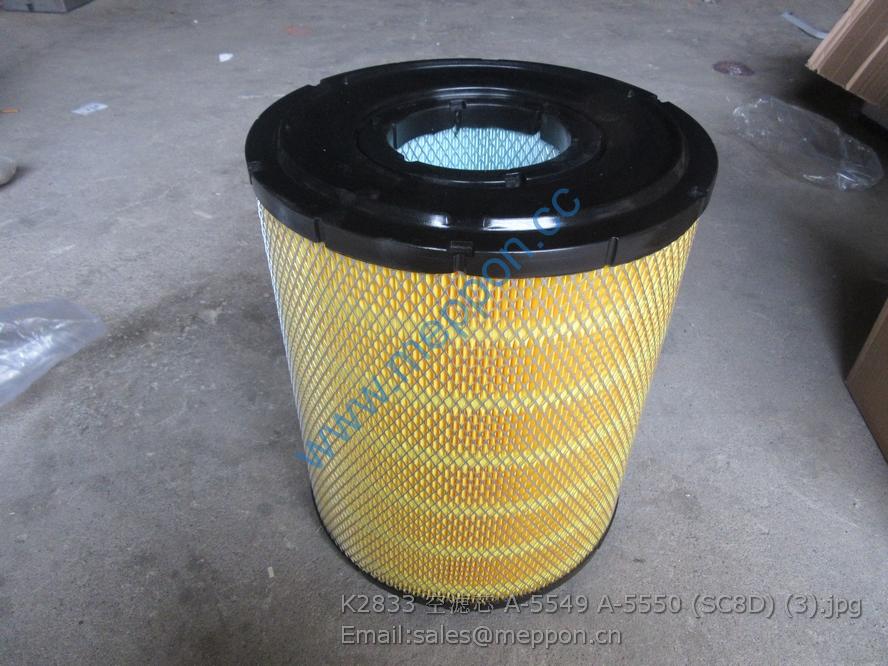

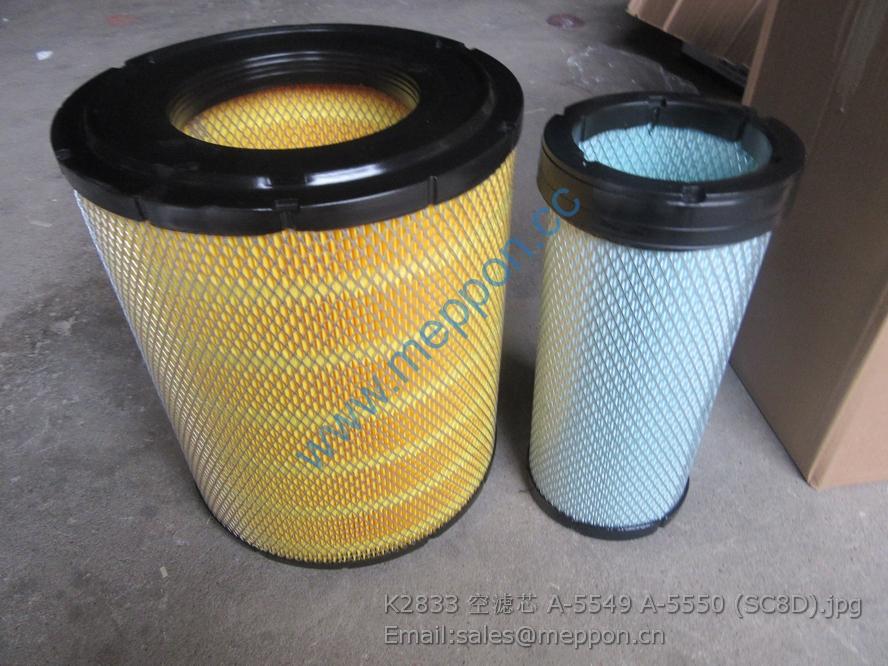

K2833 AIR FILTER A-5549 A-5550 SC8D

1 6105Q-1014010A 呼吸器总成 Breather assembly 1
2 6105Q-1014001 呼吸器垫片 Breather spacer 1 易损件 EWP
3 Q40108 垫圈 8 Lock Washer 8 2
4 Q40308 垫圈 8 Lock Washer 8 2
5 Q150B0825 螺栓 M8X25 Bolt M8X25 2

1 696-1002090 油标尺焊接件 Oil dipstick welded part 1
2 6105Q-1002082 O 形密封圈 9X1.6 O-ring 1
3 6105Q-1008081A 油标尺套管 Oil dipstick sleeve 1

1 330-1104060A 第六缸高压油管组件 Sixth cylinder high pressure fuel pipe 1
2 330-1104050 第五缸高压油管 Fifth cylinder high pressure fuel pipe 1
3 330-1104040 第四缸高压油管 Fourth cylinder high pressure fuel pipe 1
4 330-1104030 第三缸高压油管 Third cylinder high pressure fuel pipe 1
5 330-1104020 第二缸高压油管 Second cylinder high pressure fuel pipe 1
6 330-1104010 第一缸高压油管 First cylinder high pressure fuel pipe 1
7 6105Q-1104023 油管护套 Fuel pipe sheath 14
8 6105Q-1104022 高压油管接螺母 High pressure fuel pipe connecting nut 14
9 330-1104090 三管夹固定总成 Triple pipe clip fixing assembly 1
10 330-1104080 两管夹固定总成 Double pipe clip fixing assembly 1
11 640-1104040 回油软管总成 Oil return hose assembly 1
12 641-1104050 油箱到喷油泵柴油管 Fuel pipe from fuel tank to injection pump 1
13 340-1104140A 两管夹组件 Double pipe clip subassembly 1
14 Q/YC149-14 复合式密封垫圈 14 Seal washer 14 12
15 6105Q-1104090C 柴滤器进油管总成 Fuel filter fuel inlet pipe assembly 1
16 340-1104170 三管夹固定组件 Triple pipe clip fixing subassembly 1
17 340-1104160 两管夹固定组件 Double pipe clip fixing subassembly 1

1 Q150B0830 螺栓 M8X30 Bolt 2
2 Q40208 垫圈 8 Washer 8 6
3 Q40308 垫圈 8 Washer 8 4
4 Q340B08 螺母 M8 Nut M8 2
5 630-1105010 柴油滤清器 Fuel filter 1
6 Q150B1030 螺栓 M10X30 Bolt 2
7 696-1105001 柴油滤清器座 Fuel filter seat 1
8 B7604-1105200 旋装沉淀器 Rotational precipitator 1
9 Q40110 垫圈 10 Washer 10 2
10 Q40310 垫圈 10 Washer 10 2
11 Q340B10 螺母 M10 Nut M10 2
12 Q150B0820 螺栓 M8X20 Bolt M8X20 4
13 6105Q-3509013 垫圈 Washer 2
14 L3007-1105004A 柴油粗滤器支架 Fuel strainer bracket 1

1 1640H-1109100A 空气滤清器部件 Air filter part 1 随机附件 Accessory with engine
2 Q67689 环箍 89 Loop hoop 2 随机附件 Accessory with engine
