Description

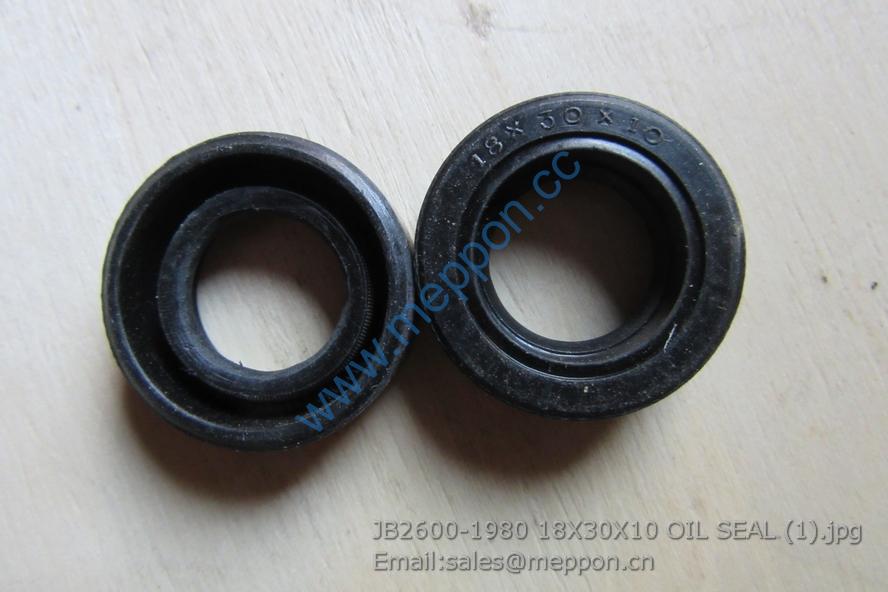

JB2600-1980 18X30X10 OIL SEAL 13B0006 for xm-60 booster

1 630-1003021 气缸盖罩（I） Cylinder head cover 1
2 6105Q-1003022 缸盖罩垫片 Cylinder head cover gasket 2
3 330-1003015B 气缸盖 Cylinder head 2
330-1003015B* 气缸盖组件 Cylinder head subassembly 2
4 630-1003083C 前支承板 Front supporting board 1
5 330-1007019C 进气门座 Intake valve seat 6
6 430-1007018 气门导管 Valve guide pipe 12
7 330-1007021 排气门座 Exhaust valve seat 6
8 B3000-1003011B 气缸盖垫片 Cylinder head gasket 1
9 330-1003013B 气缸盖长螺栓 Cylinder head long bolt 2
10 6105QA-1003017F 垫圈（二） Washer 2
11 Q614B06 螺塞 NPT3/4 Screw plug 4
12 330-1003012B 缸盖螺栓 Cylinder head bolt 8
13 330-1003014B 气缸盖短螺栓 Cylinder head short bolt 6
14 330-1003018B 缸盖短螺栓（II） Cylinder head short bolt 6
15 6105QA-1003017D 垫圈 Washer 6
16 330-1003019B 气缸盖长螺栓（I） Cylinder head long bolt 4
17 6105QA-1003088 气缸盖定位销套 Cylinder head dowel pin sleeve 4
18 6105QA-1003017E 垫圈（一） Washer 4
19 6105Q-1003085 吊耳 Lifter 2
20 6105QA-1003084A 后支承板 Rear supporting board 1
21 340-1013007 机油管夹 Oil pipe clip 1
22 B4000-1003048A 通气软管 Ventilation hose 1
23 630-1003051A 气缸盖罩（II） Cylinder head cover 1 24 Q/YC149-8 复合式密封垫圈 8 Compound seal washer 8 6
25 Q394B08 螺母 M8 Nut M8 6
26 Q67638 环箍 38 Loop hoop 38 1
27 D0300-1003260 上呼吸器组件 Upper breather subassembly 1
28 Q5002040 销φ2X40 Pin 1
29 330-1003053 密封圈 Sealing ring 1
30 630-1003030A 加机油口组件 Oil filler subassembly 1

1 330-1004016 第一道气环 First air ring 6
2 330-1004017B 第二道气环 Second air ring 6
3 330-1004030 油环总成 Oil ring assembly 6
330-1004016* 活塞环组件 Piston ring subassembly 1
4 340-1004001 活塞 Piston 6
5 6105Q-1004019B 活塞销 Piston pin 6
6 Q43038 挡圈 38 Retaining ring 12
7 6105QA-1004050D 连杆部件 Connecting rod part 6
8 330-1004022 连杆轴瓦 Connecting rod bearing shell 12
330-1004022-H 连杆轴瓦组件(红) Connecting rod bearing shell subassembly (red) 1
330-1004022-L 连杆轴瓦组件(蓝) Connecting rod bearing shell subassembly (blue) 1
EWP=Easy wear part (易损件)

1 Q150B1028 螺栓 M10X28 Bolt 4
2 Q40310 垫圈 10 Washer 10 4
3 Q218B1020 螺钉 M10X20 Screw 4
4 696-1005001A 真空泵-皮带轮 Vacuum pump-belt pulley 1
5 696-1005046 嵌块 Quad 1
6 6105QA-1005052 起动爪 Starting dog 1
7 430-1005053 曲轴头垫片 II Crankshaft end gasket 1
8 696-1005030 皮带轮减振器总成 Belt pulley vibration damper assembly 1
9 6105Q-1005021 曲轴正时齿轮 Crankshaft timing gear 1
10 Q5511270 键 12X70 Key 1
11 630-1005020E 曲轴 Crankshaft 1
6105Q-1005054C*-H 曲轴轴瓦组件(红) Crankshaft bearing shell subassembly (red) 1
6105Q-1005054C*-L 曲轴轴瓦组件(蓝) Crankshaft bearing shell subassembly (blue) 1
12 6105Q-1005056A 上轴瓦（宽） Upper bearing shell(wide) 1
13 6105Q-1005058A 曲轴止推片 Crankshaft thrusting piece 4
14 6105Q-1005057C 下轴瓦（宽） Lower bearing shell (wide) 1
15 6105Q-1005054A 上轴瓦（窄） Upper bearing shell(narrow) 6
16 6105Q-1005055C 下轴瓦（窄） Lower bearing shell(narrow) 6
17 696-1005040B 飞轮及齿圈总成 Flywheel& gear ring assembly 1
18 YC24-B1226 圆柱销 12X26 Straight pin 1
19 330-1005044 飞轮螺栓 Flywheel bolt 7
