Description

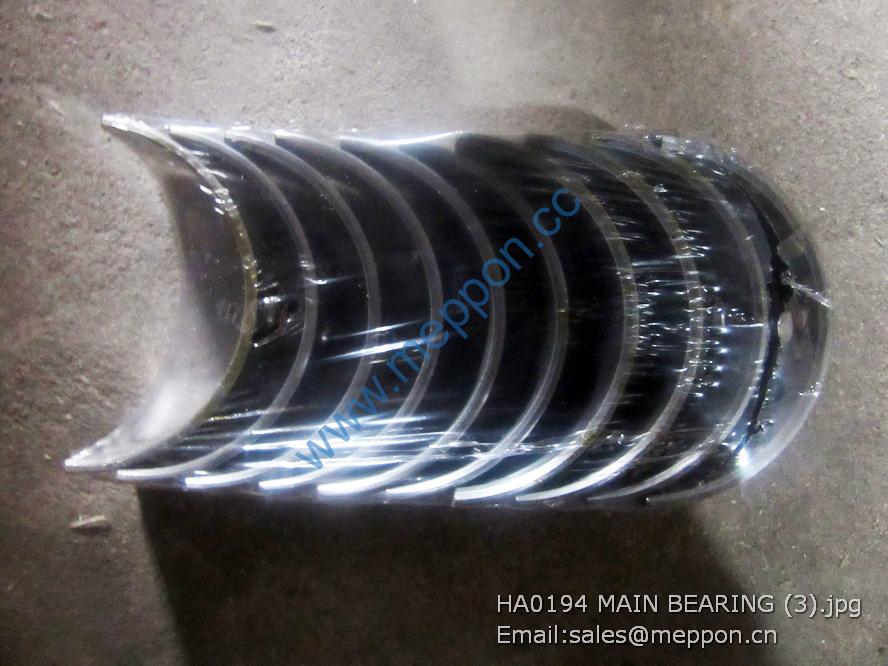

HA0194 MAIN BEARING YN33GBZ

1 01152710 1 碗形塞 Corehole plug
2 13035356 1 进气管 Intake manifold

1 13036457 1 空气滤清器 Air fi lte r
2 01143995 4 2型六角螺母 Hexagon nut (II)
3 01178365 4 弹簧垫圈 Spring washer
4 01152752 4 平垫圈 Flat washer
5 01112861 4 2型六角螺母 Hexagon nut (II)
6 01178366 4 弹簧垫圈 Spring washer
7 13026949 1 空滤器支架 Air fi lte r bracket
8 13020714 4 连接螺栓 Connecting bolt
9 12151677 1 卡箍 Clamp
10 13026948 1 气路连接胶管 Air Connecting Rubber Pipe
11 13021568 1 卡箍 Clamp

1 13031267 1 空气滤清器芯 Air Filter Element
2 13036501 1 空气滤清器体 Air filter

1 13034987 1 水泵 Water pump

1 12158513 1 水泵垫片 Water pump washer
2 13025726 1 中间垫块 Intermediate plate
3 01113391 1 双头螺柱 Stud
4 01177981 13 弹簧垫圈 Spring washer
5 01112829 1 2型六角螺母 Hexagon nut (II)
6 01112331 5 六角头螺栓 Hexagon bolt
7 12200650 1 水泵垫片 Water pump washer
8 01111166 2 六角头螺栓 Hexagon bolt
9 01139584 5 六角头螺栓 Hexagon bolt
10 01133632 1 六角头螺塞 Hexagon plug
11 612600080200 1 密封垫圈 Seal washer

1 13057390 1 水泵皮带轮 Belt pulley of water pump
2 13038761 2 多楔带 Ribbed belt
3 13057421 1 风扇连接盘 Connecting disk of fan
4 01178365 10 弹簧垫圈 Spring washer
5 13022600 4 内六角圆柱头螺钉 Inner hexagon screw
6 13023757 1 风扇 Fan
7 13024405 6 六角头螺栓 Hexagon bolt

1 01133878 2 卡箍 Clamp
2 13023503 1 冷却液连接胶管 Coolant Connecting Rubber Pipe
3 13030507 1 进水接管 Water inlet joint pipe

1 13059425 1 垫片 Gasket
2 13038276 1 机油冷却器回水管 Water return pipe of oil cooler
3 01110560 2 内六角圆柱头螺钉 Inner hexagon screw
4 01177981 1 弹簧垫圈 Spring washer
5 01151569 1 六角头螺栓 Hexagon bolt
6 13035193 1 机油冷却器进水管 Water inlet pipe of oil cooler
7 13034050 2 组合密封垫圈 Unit seal washer
8 13033424 1 空心螺栓 Hollow bolt
9 12151665 2 卡箍 Clamp
10 13035095 1 冷却液连接胶管 Coolant Connecting Rubber Pipe
