Description

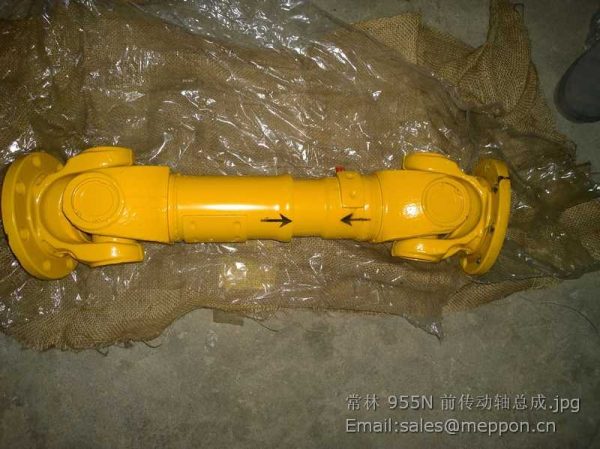

CHANGLIN 955N DRIVE SHAFT

Y221-76A-020000 盖 COVER 1
2 01010-81230 螺栓 M12 x 30 BOLT 20
3 01643-31232 垫圈 12 WASHER 23
4 01010-81020 螺栓 M10 x 20 BOLT 3
5 01643-31032 垫圈 WASHER 5
6 Y221-76A-010000 发动机上罩 COVER 1
7 Y221-76A-030000 气弹簧 SPRING 1
8 Y221-76A-040000 支撑杆 SUPPER BAR 1
9 Y221-76A-000010 支撑杆 SUPPER BAR 1
10 Y221-76A-000020 吸音海绵 SHEET 1
11 Y221-76A-000030 吸音海绵 SHEET 2
12 Y221-76A-050000 锁 LOCK ASS’Y 2
13 Y221-76A-060000 盖 COVER 1
14 Y221-76A-070000 密封条 SEAL STRIP 1
15 Y221-76A-000040 减震块 DAMPING BLOCK 2
16 01224-40616 螺钉 M6 x 16 BOLT 4
17 01010-80820 螺栓 M8 x 20 BOLT 8
18 01643-30823 垫圈 8 WASHER 13
19 04205-00835 销轴 8 x 35 PIN 1
20 04050-03214 开口销 PIN 1
21 01580-00806 螺母 M8 NUT 4
22 Y221-76A-080000 盖板 PLATE 1
23 Y221-76A-090000 盖板 PLATE 1
24 Y246-05A-000090 防滑纸 ANTISKID PAPER 4
25 04205-01235 销轴 PIN 3
26 04050-04025 开口销 PIN 3
27 Y221-76A-000050 帽 CAP 9

Y221-77A-012000 工具箱箱体 TOOL BOX 1
2 Y221-77A-050000 前罩 COVER 1
3 Y221-77A-000010 减震块 DAMPING BLOCK 1
4 04050-11612 开口销 PIN 2
5 01643-30623 垫圈 6 WASNER 2
6 Y221-77A-000030 密封条 SEAL STRIP 1
7 Y221-77A-011200 锁 LOCK ASS’Y 1
8 Y221-77A-011000 门锁 LOCK ASS’Y 1
9 Y221-77A-060001 连杆 LINK ROD 1
10 Y221-77A-011100 合页 HINGE 2
11 01010-51030 螺栓 M10 x 30 BOLT 4
12 Y246-05A-000090 防滑纸 ANTISKID PAPER 2
13 01010-81025 螺栓 M10 x 25 BOLT 4
14 01643-31032 垫圈 WASHER 8

Y221-77A-020000 扶手 HANDRAIL 1
2 Y221-77A-040000 镜子 MIRROR 1
3 Y221-77A-030000 支架 FRAME 1
4 Y221-77A-000020 压板 PLATE 1
5 01252-71030 螺钉 M10 x 30 BOLT 2
6 01010-81225 螺栓 M12 x 25 BOLT 4
7 01643-31232 垫圈 12 WASHER 8
8 Y221-77A-080000 镜子 MIRROR 1
9 Y221-77A-070000 支架 FRAME 1
10 01010-81235 螺栓 M12 x 35 BOLT 4

Y233-31A-010000 左操纵箱 CONTROL BOX（L H） 1
1 Y233-31A-010040 上壳盖板 PLATE 1
2 Y233-31A-010030 上壳 PLATE 1
3 01023-10620 十字螺钉 SCREW 6
4 01641-20608 垫圈 WASHER 4
5 01580-10605 螺母 NUT 4
6 Y233-31A-011000 支架 CONSOLE FRAME 1
7 Y233-31A-010020 下壳 PLATE 1
8 Y233-31A-010060 安全锁 LOCK 1
9 Y233-31A-012030 弹簧 SPRING 1
10 Y233-31A-010010 开关 SWITCH 1
11 01023-10312 十字螺钉 SCREW 2
12 01580-10806 螺母 M8 NUT 2
13 01641-20812 垫圈 8 WASHER 2
14 01023-10812 十字螺钉 SCREW 2
15 Y233-31A-013000 电子器件支架总成 FRAME ASS’Y 1
16 01023-10616 螺钉 M6 x 16 BOLT 2
17 Y233-31A-010050 盖板 PLATE 1
18 Y233-31A-012000 转轴支架总成 FRAME ASS’Y 1
19 01016-51025 螺栓 M10 x 25 BOLT 4
20 01643-31032 垫圈 WASHER 4
21 01235-40325 十字螺钉 SCREW 1

Y233-32A-010000 右操纵箱 CONTROL BOX（R H） 1
1 Y233-31A-010050 上壳盖板 PLATE 1
2 Y233-31A-010030 上壳 PLATE 1
3 01023-10620 十字螺钉 SCREW 2
4 Y233-31A-011000 扶手箱支架 CONSOLE FRAME 1
5 Y233-32A-010010 下壳 PLATE 1
6 01641-20608 垫圈 6 WASHER 6
7 Y233-31A-013000 电子器件支架总成 FRAME ASS’Y 1
8 01580-10605 螺母 M6 NUT 2
9 Y233-32A-010020 上壳盖板 PLATE 1
10 Y233-32A-010030 上壳 BRACKET 1
11 01016-51025 螺栓 M10 x 25 BOLT 4
12 01643-31032 垫圈 10 WASHER 4
