Description

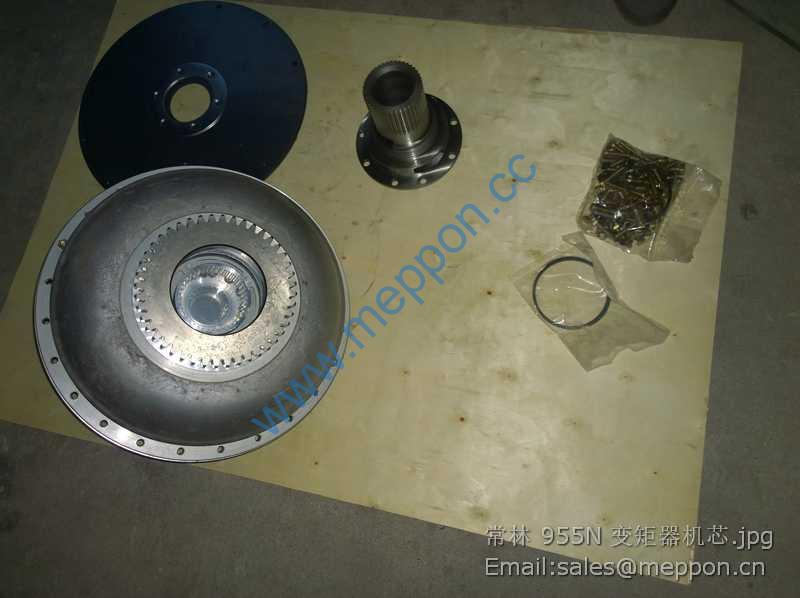

CHANGLIN 955N CONVERTER CORE

21Y-21-10000 回转马达 SLEWING MOTOR 1
2 07000-15310 O 形圈 O-RING 1
3 01010-82060 螺栓 M20 x 60 BOLT 12
4 01643-32060 垫圈 20 WASHER 12
5 07020-00000 油杯 G1/8 OIL CUP 1
6 07023-00612 帽 OIL CUP 1
7 07400-00216 软管 HOSE 1
8 07401-00310 黄油管 TUBE 1
9 Y246-84B-100000 接头 NIPPLE 1
10 Y221-21A-000010 块 BLOCK 1
11 01010-80840 螺栓 M8 x 40 BOLT 1
12 01643-30823 垫圈 8 WASHER 1
13 Y246-21A-000040 堵 PLUG 1
14 Y221-21A-000020 接头 NIPPLE 1
15 Y246-21A-000020 接头 NIPPLE 1
16 Y221-21A-000030 接头 NIPPLE 1

Y221-22A-010000 回转接头 SWIVEL JOINT 1
2 Y221-22A-000010 板 PLATE 1
3 01010-81235 螺钉 M12 x 35 BOLT 4
4 01643-31232 垫圈 12 WASHER 4
5 04205-11665 销轴 PIN 1
6 01643-31645 垫圈 16 WASHER 1
7 04050-14026 开口销 RING 1

Y221-23A-010000 回转支承 SLEWING BEARING 1
2 01643-32260 垫圈 22 WASHER 32
3 Y246-23A-040000 接头 NIPPLE 1
4 01010-82075 螺栓 M20 x 75 BOLT 36
5 01643-32060 垫圈 20 WASHER 36
6 04020-01842 圆柱销 PIN 2
7 07020-01021 油杯 M10 x 1 OIL CUP 2
8 01011-82210 螺栓 M22 x 110 BOLT 32
9 Y221-23A-020000 管 TUBE 1
10 Y246-23A-030000 弯头 ELBOW 1
11 04434-50808 夹 CLIP 1
12 01016-50814 螺栓 M8 x 14 BOLT 1
13 01643-30823 垫圈 8 WASHER 1
14 Y221-23A-000010 盖 COVER 1

Y220-51A-000000 回转平台 REVOLVING FRAME 1
2 22Y-92-00001 橡胶圈 RUBBER BAND 2
3 Y221-92A-000010 护套 GUARD SLEEVE 2
4 Y221-05A-000010 橡胶环 RUBBER RING 4
5 22Y-92-00002 护套 GUARD SLEEVE 2
6 Y221-92A-000060 护套 GUARD SLEEVE 1
7 230-51-00002 橡胶环 RUBBER RING 4
8 Y221-92A-000020 护套 GUARD SLEEVE 2
9 Y221-92A-000030 护套 GUARD SLEEVE 2
10 07Y-83-000016 护套 GUARD SLEEVE 1

01010-81640 螺栓 M16 x 40 BOLT 2
2 01643-31645 垫圈 16 WASHER 2
3 Y221-64A-000020 板 PLATE 1
4 Y221-64A-030000 轴 SHAFT 1
5 Y221-64A-070000 防尘圈 RING,DUST 4
6 Y221-61A-000010 衬套 BUSHING 1
7 Y221-64A-000070 垫片 SPACER
1
8 Y221-64A-0000800 垫片 SPACER
1
9 Y221-64A-000100 垫片 SPACER
1
10 Y223-64A-000050 垫片 SPACER
1
11 Y221-64A-000050 垫片 SPACER
2
12 Y221-64A-000060 垫片 SPACER
2
13 Y220-61A-0100000 动臂 BOOM 1
14 Y221-86A-070000 销 PIN 2
15 Y221-86A-000060 板 PLATE 2
16 01643-31232 垫圈 12 WASHER 2
17 01010-51235 螺栓 M12 x 30 BOLT 2
