Description

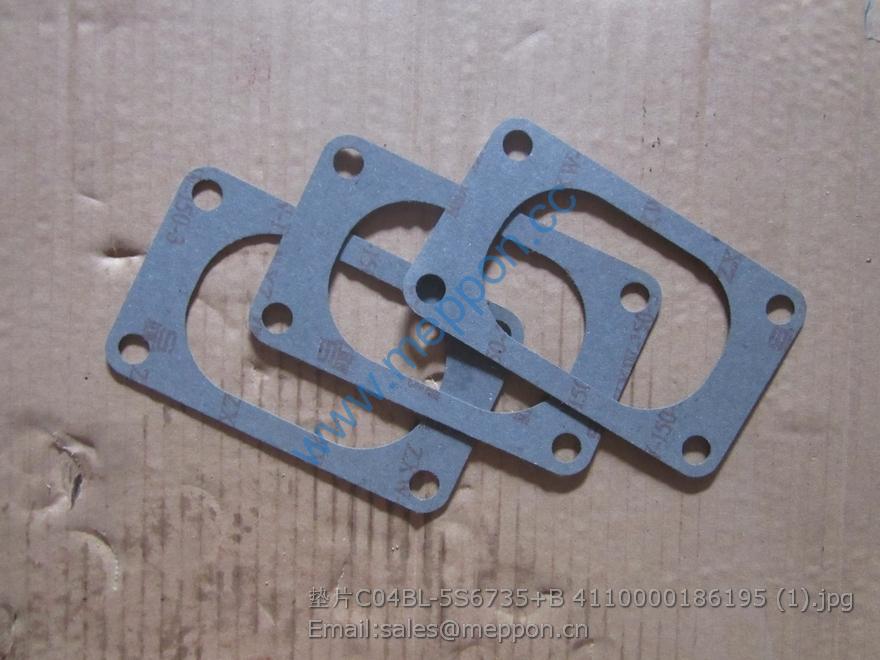

C04BL-5S6735+B 4110000186195 WASHER

3,010 464430321
6
输出轴 Output shaft 1
3,020 464430322
6
输出齿轮 Output gear 1
3,030 063541628
5
滚柱轴承 NJ213 EC3 / J 65×120×23 Roller bearing 1
3,034 120430806
2
调整垫片 Adjusting shim 1
3,040 462030324
7
压板 Pressure plate 2
3,050 063601512
7
螺栓 M10×30 DIN933 8,8 Bolt 4
3,060 126930216
4
螺栓锁片 Bolt locking plate 2
3,070 1701-02154 轴用密封圈/0750111116 Seal ring used for
shaft
2
3,080 075011613
4
球轴承 6311 C3 55×120×29 Ball bearing 1
3,090 063050204
8
孔用挡圈 120×4 DIN472 Retaining ring
used for hole
3
3,100 076912033
8
调整垫片 Adjusting shim 1
3,110 073006229
6
轴套 Axle sleeve 1
3,140 464430354
7
输出法兰 Output flange 1

6,010 4642306050 下隔板 Down plate 1
6,020 1000-01669 密封垫/4644306464 Gasket 1
6,024 1000-01666 密封垫/4644306466 Gasket 1
6,030 4642306149 输油板 Valve adaptor 1
6,050 4642306089 节流嘴 Throttle nozzle 1
6,055 4642306167 节流嘴 Throttle nozzle 1
6,060 0635460027 钢球 Steel ball 2
6,070 0732041226 弹簧 Spring 2
6,080 0636101031 螺栓 M8×30 DIN912 8,8 Bolt 3
6,100 0636101035 内六角螺钉 M8×45 DIN912 8.8 Socket head cap
screw
3
6,120 0636101032 内六角螺钉 M8×35 DIN912 8.8 Socket head cap
screw
6
6,140 4642306163 上隔板 Up plate 1
6,150 1000-01667 密封垫/4642306318 Gasket 1
6,154 1000-01668 密封垫/4642306320 Gasket 1
6,160 0636101035 内六角螺钉 M8×45 DIN912 8.8 Socket head cap
screw
10
6,180 0636101124 内六角螺钉 M8×75 DIN912 8.8 Socket head cap
screw
6
6,260 0636304019 螺塞 M10×1 DIN910 Screw plug 1
6,270 0634801152 紫铜垫圈 A10×13.5 DIN7603 Gasket 1
6,280 0631610025 紧定螺钉 M10×10 DIN913 10,9 Set screw 1
6,290 0634801152 紫铜垫圈 A10×13.5 DIN7603 Gasket 1
6,350 0636304019 螺塞 M10×1 DIN910 Screw plug 1
6,360 0634801152 紫铜垫圈 A10×13.5 DIN7603 Gasket 1

8,010 464430861
8
惰轮轴 Idler pulley axle 1
8,020 063431352
9
O 型圈 57×3 ZFN744 O-ring 1
8,090 464430856
0
惰轮 Idler pulley 1
8,100 063610414
6
螺栓 M12×100 DIN7984 10,9 Bolt 1
8,110 075011821
6
滚柱轴承 Roller bearing 1
8,114 464433022
9
垫圈 Washer 1
8,170 063036282
4
闷盖 Cover 1
