Description

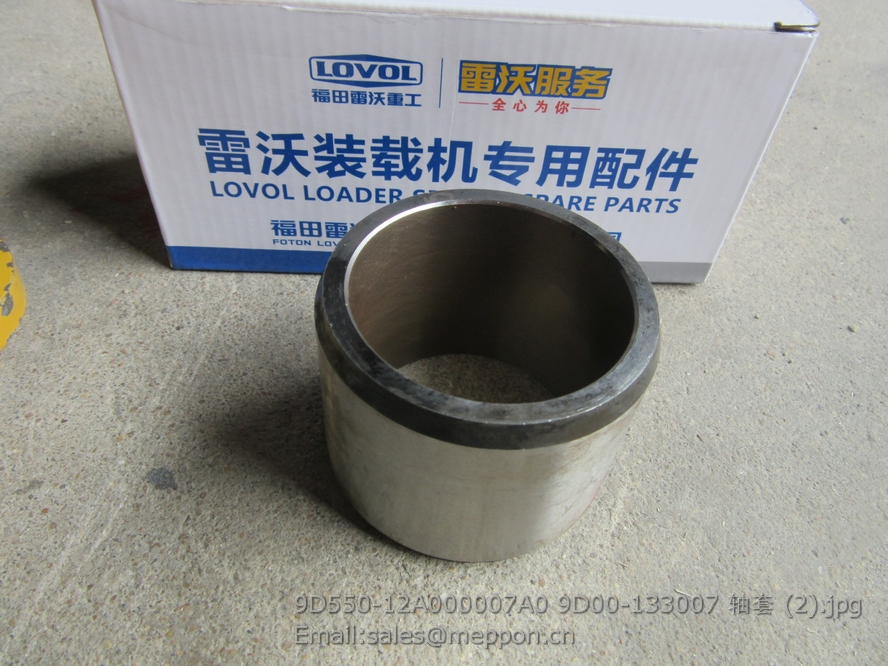

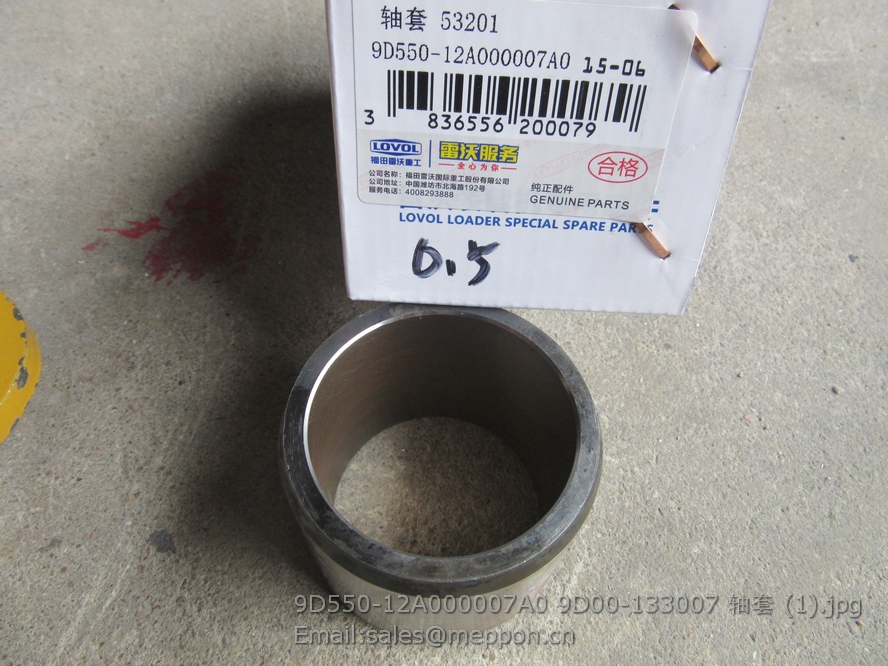

9D550-12A000007A0 9D00-133007 BUSHING FOTON LOVOL

1 GB/T9877.1-1988 油封FB100×130×12 Oil seal FB100×130×12 1
2 GB/T5783-2000 螺栓M18×30 Bolt M8×30 5
3 GB/T93-1987 垫圈8 Washer 8 12
4 GB/T97.1-2002 垫圈8 Washer 8 12
5 QC490Q(DI)-01018 后油封盖 Read oil seal cover 1
机体总成QC495T(DI)-01000、QC498Q-01000
第 3 页6 QC490Q(DI)-01019 后油封盖垫片 Gasket of rear oil seal cover 1
7 GB/T119-2000 销B10×25 Pin B10×25 2
8 QC490Q(DI)-01011 堵片 Plug 1
9 GB/T119.1-2000 销B8×20 Pin B8×20 2
10 N85-03111 螺塞（ZG3/8〃） Plug 2
11 QC490Q(DI)-01015 分油道堵塞 Plug 5
12 QC490Q(DI)-01010-1 凸轮轴后衬套 Preceding bushing of camshaft 1
13 4102Q-02103 碗形塞φ35 Plug φ35 2
14 N85-03022 机油压力报警器 Oil pressure switch assembly 1 6.3插片式
15 QC495T-01038 放水开关接管 Drain valve block tube 1
16 N485Q-03200 放水开关 Drain valve block 1
17 QC495Q（DI）-01029 气缸盖定位套 Orientation sheath 2
QC495Q(DI)-01002
QC498Q-01002 4
19 N85-03016（A） 气缸盖螺栓（乙） Cylinder head bolt (Ⅱ) 4
20 QC490Q(DI)-01003A 气缸盖螺栓（甲） Cylinder head bolt (I) 14
21 QC495Q(DI)-01005 气缸盖垫片 Cylinder hear gasket 1
QC498Q-01001
QC495Q(DI)-01001A 1
23 N85-03102 碗形塞φ30 Plug φ30 10
24 QC490Q(DI)-01017-1 凸轮轴前衬套 Preceding bushing of camshaft 1
25 QC495T-01036 进水口封板 Plug 1
26 GB/T5783-2000 螺栓M8×25 Bolt M8×25 2
27 QC495Q(DI)-01026 主轴瓦（上） Main shaft bearing (bottom) 5
28 QC495Q(DI)-01025 主轴瓦（下） Main shaft bearing (upper) 5
29 QC495Q(DI)-01024 主轴承盖 Main shaft bearing cover 4
30 QC490Q(DI)-01009-1 凸轮轴中衬套 Mid-bushing of camshaft 1
31 QC495Q(DI)-01023 中间堵塞 Plug 1
32 QC490Q(DI)-01022 曲轴止推片（上） Upper thrust bushing 2
33 QC490Q(DI)-01021 曲轴止推片（下） Lower thrust bushing 2
34 QC495Q(DI)-01020 后主轴承盖 Rear Main shaft bearing cover 1
35 QC490Q(DI)-01029 主轴承螺栓垫圈 Washer 10
36 QC490Q(DI)-01016A 主轴承盖螺栓 Bolt 10
气缸套 Cylinder liner 18
机体 Cylinder block 22

1 QC490Q(DI)-02008 凸轮轴止推板 Thrust plate of camshaft 1
2 GB/T97.1-2002 垫圈8 Washer 8 28
3 GB/T93-1987 垫圈8 Washer 8 29
4 GB/T5783-2000 螺栓M8×18 Bolt M8×18 2
5 QC490Q(DI)-02004 正时惰齿轮轴 Timing idle gear of shaft 1
6 QC490Q(DI)-02005 正时惰齿轮衬套 Bushing of timing idle gear 1
QC495T-02001 喷油泵正时齿轮连接盘 Timing gear of fuel pump connenting piate 1
QC498T-02001 喷油泵正时齿轮连接盘 Timing gear of fuel pump connenting piate 1
8 QC490Q(DI)-02003 喷油泵正时齿轮 Timing gear of fuel pump 1
9 QC490Q(DI)-02006 正时惰齿轮 Timing idle gear 1
10 QC490Q(DI)-02012 惰齿轮轴压板 Thrust plate of timing idle 1
11 GB/T5782-2000 螺栓M8×55 Bolt M8×55 2
12 QC490Q(DI)-02009 凸轮轴正时齿轮 Timing gear of camshaft 1
13 QC490Q(DI)-02007 曲轴正时齿轮 Timing gear of crankshaft 1
7
正时齿轮传动系总成QC495T-02000
第 6 页14 N85-04009 凸轮轴正时齿轮压板 Thrust plate of timing gear of camshaft 1
15 GB/T93-1987 垫圈12 Washer 12 1
16 GB/T5782-2000 螺栓M12×45 Bolt M12×45 1
