Description

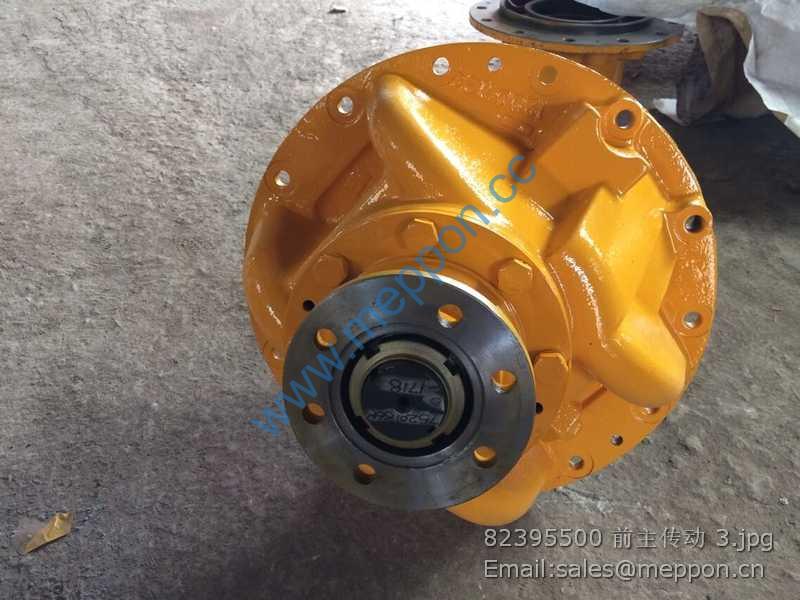

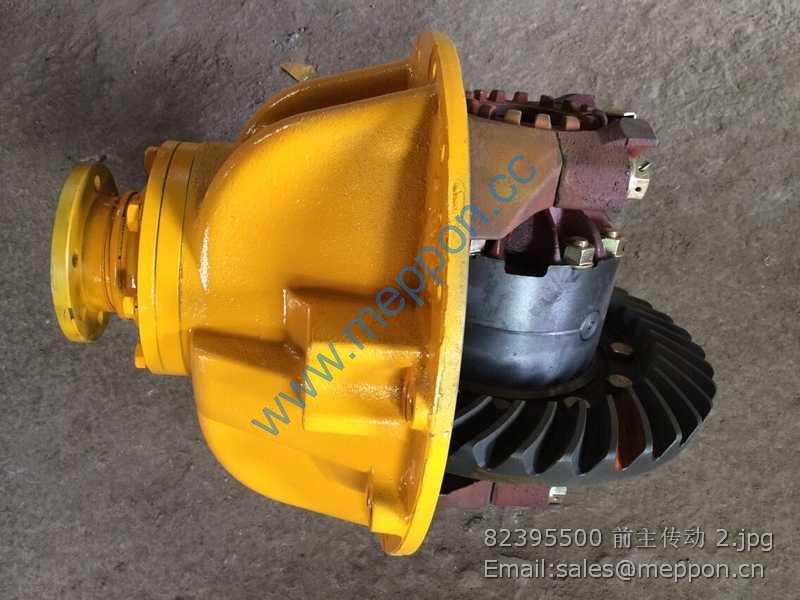

82395500 front main reducer xcmg

B230103002688 1 胶管 Hose
A220401000428 1 多路阀 Valve – Main Control
B230103002517 1 胶管 Hose
B230103002518 1 胶管 Hose
B230103002519 2 胶管 Hose
B230103002689 1 胶管 Hose
A210111000062 11 螺栓M20×60GB578310.9级 Bolt
A210422000003 15 垫圈 Washer
A820301012852 1 回转机构定位销 Dowel – Swing Machanism
B229900006314 1 减速机总成 Reducer As – Swing
A210204000355 4 螺钉M10×40GB70.110.9级 Screw
A210401000001 1 垫圈 Washer
A820101118573 2 管夹 Clamp
A820606010353 8 衬垫 Liner
A210204000206 4 螺钉M12×35GB70.110.9级 Screw
A810201066451 1 动臂油缸硬管 Tube – Hard (Boom Cylinder)
B210780000696 10 对开法兰 Flange – Half
A210204000354 110 螺钉M10×30GB70.110.9级 Screw
B230103002294 4 胶管 Hose
A810406012424 3 下板 Plate

A820205002283 1 Rc1/2-M18接头 Connector
B210780000024 1 管接头 Connector, pipe
B210780001426 1 管接头 Fitting – Pipe
10137010 1 M14-内M18接头 Connector
60006360 1 铜垫圈 Washer – Copper
B220401000916 1 放油阀 三菱 Valve – Fuel Outlet
A229900001347 1 软管环箍 Strap, hose
10192981 1 放油软管 Hose – Fuel Outlet
B230103002318 1 胶管 Hose
B230103002320 1 胶管 Hose
B230103002324 1 胶管 Hose
A210204000335 6 螺钉M10×55GB70.110.9级 Screw
A210111000212 1 螺栓M16×35GB578310.9级 Bolt
A210404000008 3 垫圈 Disk
A810201010243 1 液压油箱总成 Fuel Tank As – Hyd.
变更或见其他配置 12 垫片 Gasket
变更或见其他配置 6 垫圈 Washer
变更或见其他配置 6 螺钉M16×35GB70.110.9级 Screw
A210204000300 4 螺钉GB70.110.9级 Screw
变更或见其他配置 1 O形圈 Seal – O-Ring

A820205001221 1 过渡块 Adapter
A229900001659 4 50 抱箍 Hoop
A210307000031 2 螺母M12GB617010级 Nut
A829900000458 1 U形螺栓 U-Bolt
11159546 1 吸油胶管 Hose – Oil Suction
A820101346109 1 主阀架 Frame – Main Control Valve
B230103002681 1 胶管 Hose
10096836 1 吸油钢管 Tube – Oil Suction
B230103001168 1 胶管 Hose
A820205000187 1 管接头 Fitting – Pipe
变更或见其他配置 16 螺钉M12×30GB70.110.9级 Screw
变更或见其他配置 1 O形圈 Seal – O-Ring
B220301000553 1 柱塞泵 Pump – Main
60014940 2 压力传感器 Sensor – Pressure
A820606010360 12 衬垫 Gasket
A230200000169 3 线夹 Clip – Wire
A210405000007 2 垫圈 Washer
变更或见其他配置 4 螺钉 Screw
变更或见其他配置 4 垫圈 Washer
60049793 1 呼吸阀AB0210BA010A 带橡胶垫 Valve – Breather
