Description

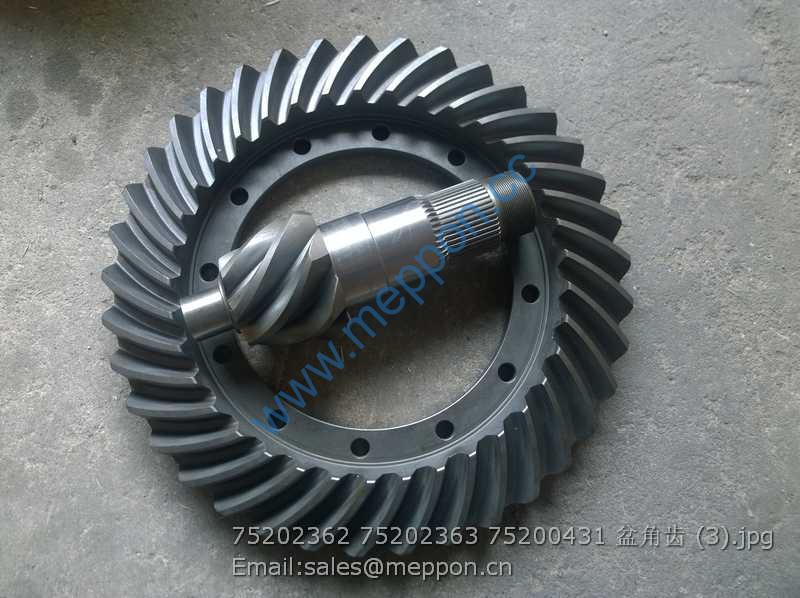

75202362 75202363 75200431 SPIRAL BEVEL GEAR
10950141 1 回转装置 Swing Unit
10713974 1 行走装置 Travel Unit
A810312000126 1 工作装置 Work Equipment
10123868 1 电气系统 Electrical System
10218422 1 涂装 Painting
10135516 1 随机工具及配件 Attached Tools & Fittings
10124877 SY215C8液压挖掘机 (Hyd. Excavator Body) 1-3
A820606030364 1 密封垫 Seal
A820101117871 1 盖 Cover
A210111000202 2 螺栓M12×30GB578310.9级 Bolt
A210405000001 2 垫圈 Washer
10949404 1 回转平台 Plateform – Swing
10124624 1 液压主管路 Hydraulic main pipeline
10473822 1 回转支承总成 Bearing As – Swing
10123994 1 先导管路 Lines – Pilot
11295915 1 驾驶室 Cab
10476447 1 空调系统 Air Conditioner System
A810502000709 1 覆盖件总装 Cover As
11279369 1 配重 Counterweight
10139935 1 动力系统 Power Train
A210110000354 4 螺栓M30×300GB578210.9级 Bolt
A210444000003 4 垫圈 Washer, 30 GB1230
A820101327187 6 垫片 Gasket
A820101327188 6 配重调整垫片 Shim – Counterweight
10949404 1 回转平台 Plateform – Swing
B210780000007 4 对开法兰 Flange, split
变更或见其他配置 4 螺钉M10×45GB70.110.9级 Screw
B230103002692 1 胶管 Hose
A210110000324 2 螺栓M16×65GB578210.9级 Bolt
变更或见其他配置 8 螺钉GB70.110.9级 Screw
A810201060419 1 回油管路 Lines – Oil Return
变更或见其他配置 11 垫圈 Washer
B230103002317 1 胶管 Hose
B230103002316 1 胶管 Hose
A210204000338 7 螺钉M12×40GB70.110.9级 Screw
A210204000356 4 螺钉M10×50GB70.110.9级 Screw
B210780000244 36 对开法兰 Flange – Half
B230103003015 1 胶管 Hose
A820205001175 3 管嘴 Nozzle
A820201000696 1 过渡块 Adapter
B230101000456 1 O形圈 Seal – O-Ring
A820205001351 1 G3/4-M36接头 Connector
变更或见其他配置 3 O形圈 Seal – O-Ring
B230103002690 1 胶管 Hose
A810406012423 3 上板 Plate
