Description

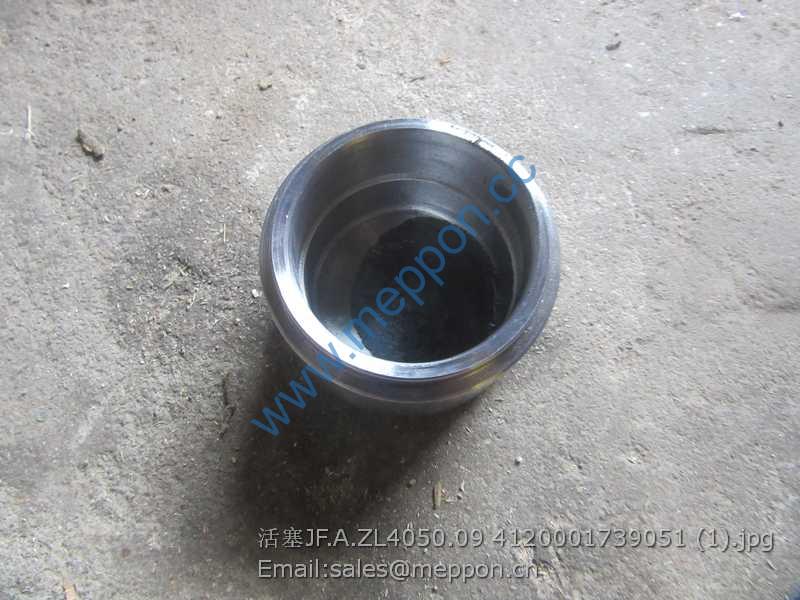

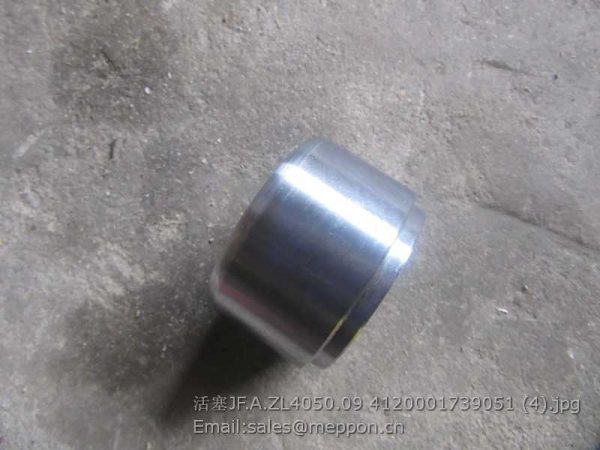

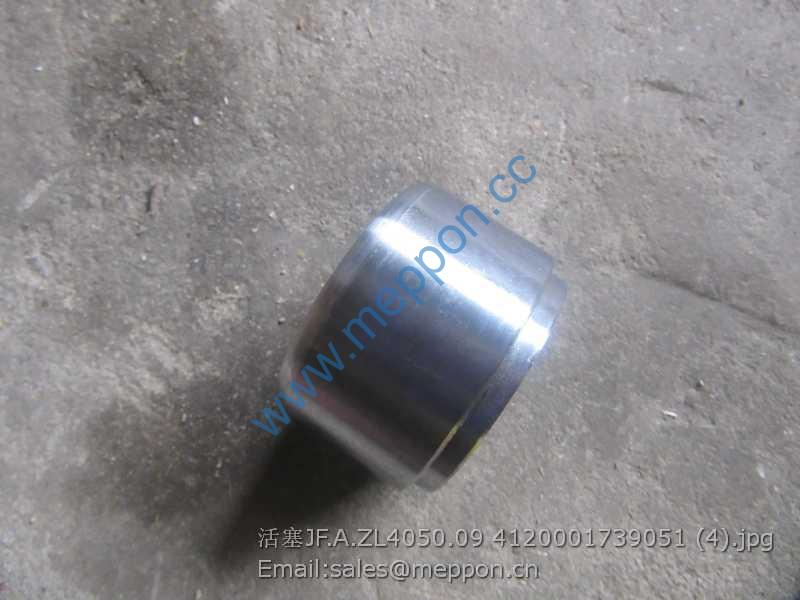

4120001739051 SDLG WHEEL LOADER PISTON JF.A.ZL4050.09
22 VG1700550013 2 2 张紧销 Clamping pin
23 90003862462 2 2 M8×60-8.8-ZN DIN912 内六角圆柱头螺钉 Socket cap screw
24 VG9100570015 1 1 悬臂总成 Suspension bracket
1 VG2600111290 1 前排气歧管 Exhaust manifold (front)
2 VG2600110855 1 后排气歧管 Exhaust manifold (back)
3 VG2600111144 1 前隔热罩 Heat insulation cover (front)
4 VG2600111145 1 后隔热罩 Heat insulation cover (back)
5 VG2600110683 6 隔热罩螺栓 Heat insulation cover bolt
VG2600110962 8 隔热罩螺栓 Heat insulation cover bolt
6 VG260110162 4 排气管密封环 Laminated sealing ring
7 VG1560110111A 6 排气管垫片 Gasket
8 VG1560110104 11 排气管紧固螺栓 Bolt
9 VG1560110105 1 排气管紧固螺栓 Bolt
10 VG609070067 1 止推垫圈 Washer
11 VG2600110871 1 支架 Extension bar
12 VG2600111428 4 4 双头螺柱 Stud
VG1560110187 6 6 双头螺柱 Stud
13 90003888470 10 10 自锁螺母 Self-locking nut
14 HG1500113227 1 废气涡轮增压器 Turbocharger
15 VG1560110210 1 增压器密封垫 Gasket
16 HG2600070071 1 增压器进油管 Oil supply pipe
17 VG1560110152 1 进油管法兰 Two bolt flange
18 VG609E110050 1 进油管垫片 Gasket
19 90003559513 2 2 联管螺母 Pipe connection nu
20 90003559563 2 2 卡套 Bush
21 90003862428 2 DIN912-M8×25-8.8-Zn.D 内六角圆柱头螺钉 Socket cap screw
22 VG188250083 2 自锁垫圈 Self-locking washer
23 HG1560079361 1 回油管总成 Oil return pipe assembly
24 VG2600110048 1 回油管法兰垫片 Gasket
25 VG1460070014 2 回油管螺栓 Bolt
26 90003989340 2 22/29-ZN N05074 软管卡箍 Hose clamp
27 VG2600070071 1 增压器回油用软管 Hose
28 90003936109 14 Q40212 大垫圈 Flat washer
1 VG1560130070 1 水冷空压机 Water-cooled air compressor
2 VG2600130122 1 传动轴 Drive shaft
3 90003320154 1 NJ2207E/7GP-C3 按 N05412 滚柱轴承 Roller bearing
4 61500080158J 2 径向止推滚柱轴承 Ball bearing
5 VG2600130047 1 衬套 Bush
6 VG2600130073 1 挡油盘 Bearing shield
7 VG2600130046 1 夹紧螺母 Compression nut
8 VG2600130123 1 压紧块 Pressure ring
9 VG1500080165 1 盖 Cover
10 90003802432 4 Q150B0830 六角头螺栓 Hex head bolt
11 VG1560130012 1 空压机齿轮 Air compressor gear
12 VG2600130001 1 六角螺母 Hexagon nut
13 VG609070161 1 支撑环 Flat washer
14 VG0003070092 1 轴油封 Gasket
15 VG1500130097 1 油封座 Oil seal carrier
16 90003802415 4 Q150B0818 六角头螺栓 Hex head bolt
17 VG192320002 1 密封圈 Sealing ring
18 VG1560130064 1 喷油泵齿轮 Injection pump gear
19 VG409020045 1 垫片 Washer
20 VG2600130045 1 六角螺母 Hexagon nut
21 VG2600130026 1 水冷空压机水管接头 Pipe connection
22 VG9003080005 1 复合密封垫圈 Sealing ring
23 VG2600130024 1 带纤维夹层橡胶软管 Hose
24 VG2600130027 1 带纤维夹层橡胶软管 Hose
25 90003989336 4 软管卡箍 Hose clamp
26 90003802419 7 Q150B0820 六角头螺栓 Hex head bolt
27 90003800458 1 Q150B0870 六角头螺栓 Hex head bolt
28 90003800569 2 Q150B10150 六角头螺栓 Hex head bolt
29 90003802561 1 Q150B1075 六角头螺栓 Hex head bolt
30 90003932023 16 波形弹簧垫圈 Wave spring washer
31 90003931122 3 波形弹簧垫圈 Wave spring washer
32 VG1560130035 1 空压机进气管接头 Intake pipe connector
