Description

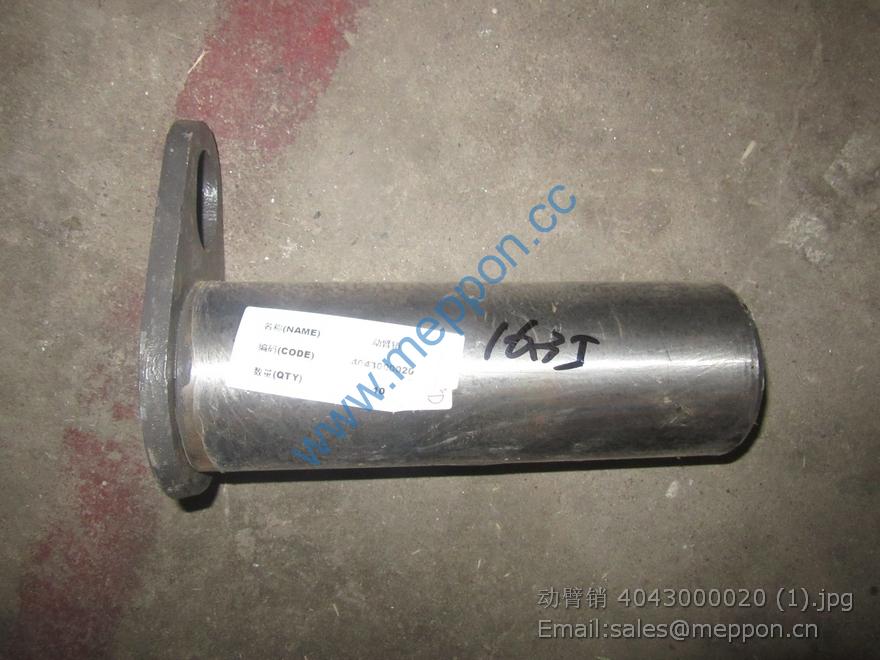

4043000020 pin sdlg wheel loader

1 2302-00204 螺母 M45X1.5 Nut 1
2 9401-03464 GB/T9877.1-1988 油封
FB80X100X10
Oil seal 2
3 2302-00186 输入法兰总成 Input flange
assembly
1
4 9401-02248 GB/T5783-2000 螺栓
M18X50-Ep.Zn
Bolt 8
5 9401-01678 GB/T93-1987 垫圈 18-Ep.Zn Washer 8
6 2402-00515 轴盖 Oil seal seat 1
7 2402-00326 轴承座 Bearing seat 1
8 2402-00303 调整垫片 t0.5 Adjusting shim 2
2402-00304 调整垫片 t1 Adjusting shim 3
9 9304-00876 铁丝 18# Iron wire 0.01
10 9401-00759 GB/T32.1-1988 螺栓
M8X16-Ep.Zn
Bolt 4
11 2402-00336 锁片 Locking plate 2
12 2402-00337 调整螺母 Differential nut 2
13 9401-00723 GB/T297-1994 轴承 32217 Bearing 2
14 2303-00100 差速器总成 Differential
assembly
1
15 9401-01106 GB/T5783-2000
螺栓 M16X40-12.9-Ct.D3
Bolt 16
16 2302-00150 锁片 Locking plate 8
17 2302-00273 前桥主从动锥齿轮总成 Spiral taper gear
assembly (front)
1
2402-02330 后桥主从动锥齿轮总成 Spiral taper gear
assembly(rear)
1
18 2302-00188 主传动壳总成 Main drive case 1
19 2302-00082 套头 Sleeve 1
20 2302-00083 止推螺栓 Fixing bolt 1

21 2302-00084 止动垫圈 Clamping washer 1
22 9401-02579 GB/T6173-2000 螺母
M27X2-Ep.Zn
Nut 1
23 9401-02155 英制轴承 142807Y Inch bearing 1
24 9401-02640 GB/T894.1-1986 挡圈 90 Retaining ring 1
25 9401-00714 GB/T297-1994 轴承 31313 Bearing 2
26 2402-00310 隔套 Bearing sleeve 1
27 2402-00314 调整垫片 t0.1 Adjusting shim 2
2402-00315 调整垫片 t0.15 Adjusting shim 1
2402-00316 调整垫片 t0.2 Adjusting shim 2
2402-00317 调整垫片 t0.5 Adjusting shim 1
2402-00318 调整垫片 t1 Adjusting shim 1

1 2302-00151 左差速器壳 Left differential case 1
2 2402-00335 轴套 8040 Shaft sleeve 2
3 2403-00412 止推垫 t3.9 Thrust spacer 2
4 2303-00101 差速齿轮总成 Differential gear 1
5 2402-00330 衬垫 Washer 4
6 2402-00329 十字轴 Spider 1
7 2402-00331 右差速器壳 Right differential case 1
8 2402-00333 锁片 Locking plate 6
9 9401-02363 GB/T5782-2000 螺栓
M12X70-Ep.Zn
Bolt 12

1 9401-01180 GB/T5783-2000 螺栓
M8X25-Ep.Zn
Bolt 6
2 9401-01697 GB/T93-1987 垫圈 8-Ep.Zn Washer 6
3 2400-00490 端盖 End cap 1
4 2400-00483 螺栓 M20X1.5X42 Bolt 4
5 9401-01699 GB/T93-1987 垫圈 20-Ep.Zn Washer 16
6 2400-00486 左螺栓 Left bolt 16
2400-00485 螺栓 Bolt 16
7 2305-00191 行星轮架总成 Planet gear
assembly
1
8 2305-00188 齿圈总成 Gear ring
assembly
1
9 9401-01600 GB/T894.1-1986 挡圈 60 Retaining ring 1
10 2305-00200 太阳轮 Sun gear 1
11 9401-01405 GB/T70.1-2000 螺钉
M10X1X18-Ep.Zn
Bolt 1
12 9401-01669 GB/T93-1987 垫圈 10-Ep.Zn Washer 1
13 2400-00450 圆螺母 Round nut 1
14 9401-00435 GB/T297-1994 轴承 32226 Bearing 1
15 9401-00663 GB1235-1976 O 形圈 32X3.5 O-ring 1
16 2300-00023 螺塞 Oil level plug 1
17 2305-00199 左轮毂 Left wheel hub 1
2305-00198 右轮毂 Right wheel hub 1
18 9401-04937 GB/T297-1994 轴承 33028 Bearing 1
19 2400-00484 垫圈 Washer 1
20 3502-00120 制动盘 Brake disc 1
21 9401-01587 GB/T893.1-1986 挡圈 200 Retaining ring 1
22 9401-01801 HG4-692-1967 油封
PG160X200X16
Oil Seal 2
23 9401-00762 GB/T32.3-1988
螺栓 M20X1.5X70-Ep.Zn
Bolt 12
24 2403-00409 半轴 Axle shaft 1
