Description

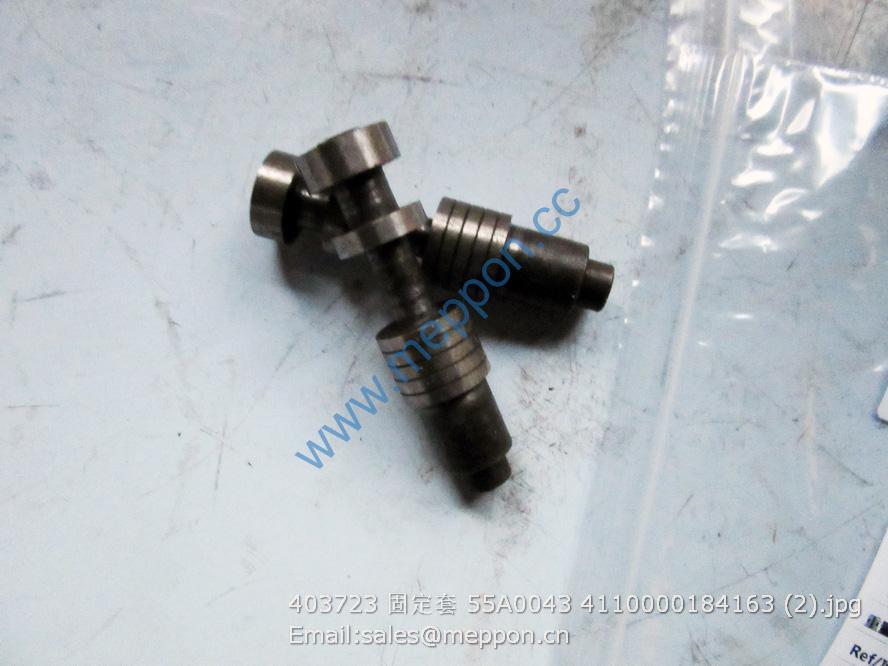

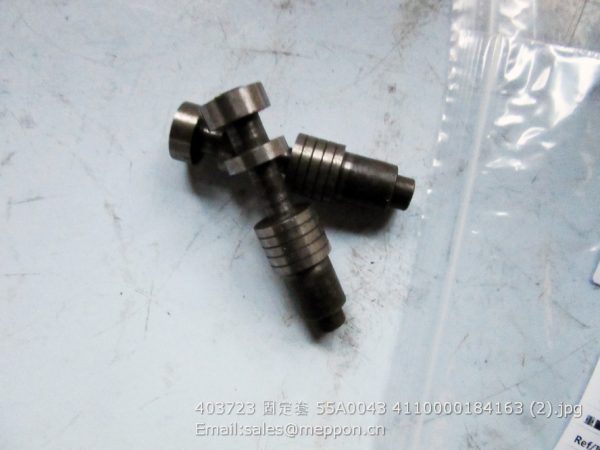

403723 55A0043 4110000184163 MOUNTING BUSHING

1 4110000184152 螺栓 403702 BOLT 403702 N 2
2 4110000184026 垫圈 402106 WASHER 402106 Y 2
3 4110000184153 阀体 403701A VALVE BODY 403701A N 1
4 4110000184154 压力表接头 403727 JOINT 403727 N 1
5 4110000184155 弹簧 403707 SPRING 403707 N 2
6 4090000120 钢球GB308-12.7-GCr15 STEEL BALL GB308-12.7-GCr15 N 2
7 4110000184156 垫片 402001 SPACER 402001 N 1
8 4110000184157 螺栓 403710 BOLT 403710 N 1
9 4110000184158 塑料球3″/16 PLASTIC BALL 3″/16 N 1
10 4110000184159 圆板 403726 PLATE 403726 N 1
11 4110000184160 减压阀杆 403704 VALVE ROD 403704 N 1
12 4110000184161 弹簧座 403725 SPRING SEAT 403725 N 1
13 4110000184162 弹簧 403724 SPRING 403724 Y 1
14 4110000184163 固定套 403723 MOUNTING BUSHING 403723 N 1
15 4110000184164 滑块 403722 SLIDE BLOCK 403722 N 1
16 4110000184165 垫圈 403721 WASHER 403721 N 1
17 4110000184166 螺栓 403720 BOLT 403720 N 1
18 4110000184167 弹簧 403706 SPRING 403706 N 1

19 4110000184168 刹车阀杆 403705 VALVE ROD 403705 N 1
20 4110000184169 圆柱塞 403718 PLUG 403718 N 1
21 4030000634 0形圈GB1235-13*1.9 O-RING GB1235-13*1.9 N 1
22 4110000184170 螺栓 403719 BOLT 403719 N 1
23 4110000184171 螺母 403717 NUT 403717 N 1
24 4110000184172 气阀座 403712 VALVE SEAT 403712 N 1
25 4110000184173 弹簧 403714 SPRING 403714 N 1
26 4110000184174 气阀杆 403713 VALVE ROD 403713 N 1
27 4110000184175 丫型密封圈32*40 403715 SEALING RING N 1
28 4110000184176 气阀体 403716 VALVE BODY 403716 N 1
29 4110000184177 分配阀杆 403708 ALLOCATE VALVE ROD 403708 N 1
30 4110000184178 挡套 403711 SPACER SLEEVE 403711 N 1
31 4030000012 O形圈GB1235-22*2.4 O-RING GB1235-22*2.4 Y 1
32 4030000635 油封JB2600-PD18*30*10 OIL SEAL JB2600-PD18*30*10 Y 1
33 4015000283 挡圈GB893.1-30-65Mn CHECK RING GB893.1-30-65Mn N 1
