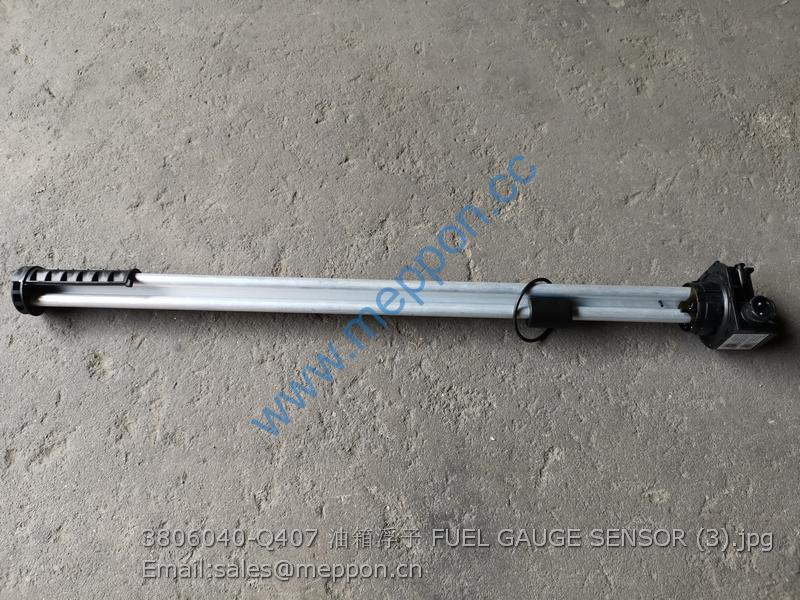

3806040-Q407 FAW FUEL GAUGE SENSOR
1 Hose assembly, cylinder SZ804.40.051A 1 18 Steering oil pipe assembly
(LH)
SZ904.40.012-1 1
Hose assembly, cylinder SZ804.40.052A 1 19 Steering fluid reservoir
assembly
5126670SZ/1.63.804A 1
2 Washer 8-Zn.D GB/T7244-1987 7 19.1 Fluid reservoir assembly,
hydraulic steering gear
5126668/1.63.804 1
3 Hollow bolt 885105699/1.63 1 19.2 Oil tank cap with gasket 5111699/1.63.841B 1
4 Sealing ring 18×24×1.5 10259960/14607 2 19.3 Case, filter 4997991/1.63.857 1
5 Bolt M8×28 16043724/10312 2 19.4 Spring 5103058/1.63.807 1
6 O-ring20.29×2.62 14618/14457581 1 19.5 Filter element assembly 4997992/1.63.858 1
7 Steering pump HLCB-D16/12 1 20 Hose16×950 SZ804.40.509 1
8 Bolt M8×35-Zn.D GB/T5782-2000 4 21 Pad, hose, steering gear SZ804.40.501 1
9 Washer 8-Zn.D GB/T93-1987 4 22 Flange, hose, steering gear 5126690/1.63.875 1
10 Bolt M10×20-Zn.D GB 21-76 2 23 Bolt M8×25-Zn.D GB/T5783-2000 3
11 Washer 10-Zn.D GB/T93-1987 2 24 Steering gear oil return pipe
assembly
885126687/1.63.824 1
12 Bracket, steering fluid reservoir SZ904.40.104 1 25 Sealing ring 21.2×26×2 44019496/1.63.898 10
13 Hoop (Φ22～Φ32mm) JB8870 4 26 Connection, hose, steering
gear
885126686/1.63.877 2
14 Hose 16×300 SZ904.40.106 1 27 Connection, hose, steering
gear
885126685/1.63.878 2
15 Oil pump inlet pipe assembly SZ904.40.025-1 1 28 Hose assembly, steering
gear
SZ804.40.053 3
16 Steering gear oil inlet pipe assembly SZ904.40.019 1 29 Hollow bolt 5112983/1.63.881 1
17 Steering oil pipe assembly (RH) SZ904.40.013-1 1
30 Pipe clamp 880006302/1.63 1
31 Support, steering oil pipe SZ904.40.105 1
32 Bolt M6×20-Zn.D GB/T818-2000 2
33 Washer 6-Zn.D GB/T93-1987 2
34 Bolt M16×80-Zn.D GB/T5782-2000 1
35 Washer 16-Zn.D GB/T93-1987 1
36 Support, oil pipe 5149037/1.63.583 1
37 Oil pipe clamp 5137954/1.63.832 1
38 Washer 6-Zn.D GB/T7244-1987 2
39 Bolt M6×14 10902124/10312 2
40 Oil pipe clamp 4999554/1.63.853 1
41 Support, oil pipe 5149036/1.63.896 1
1 Differential lock-up sign 1.98/880009827 1 16 Hydraulic lifting warning
sign (in Spanish)
1.98.077A/885126654-1 1
2 Starting sign 1.98/880009825 1 17 Machine nameplate (in
Spanish)
SZ700.00.307 1
3 Emergency brake sign 1.98/880009854 1
4 Antifreeze sign SZ804.98.314 1
5 Oil change label SZ804.98.319 1
6 “Keep away from lifter” warning sign 1.98/880009842 1
7 Sign, operation manual 1.98/880009843 1
8 Heat warning sign 1.98/880009846 1
9 Fan warning sign 1.98/880009847 1
10 Clutch adjustment warning sign (in
Spanish)
1.26/8808026005SZ 1
11 Guard safety warning sign (in
Spanish)
1.98/880009810 1
12 Safe operation sign (in Spanish) 1.98/880009812-1 1
13 PTO control warning sign (in
Spanish)
1.98/880009814 1
14 Position sign (in Spanish), lever,
auxiliary clutch
1.98.019A/885011794
-1
1
15 Implement safety sign (in Spanish) 1.98.061A/885011792
-1
1
