Description

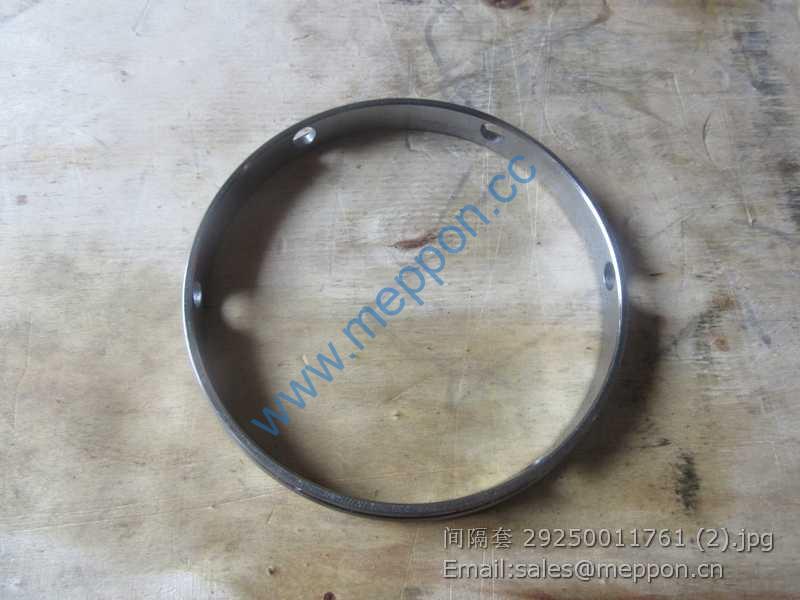

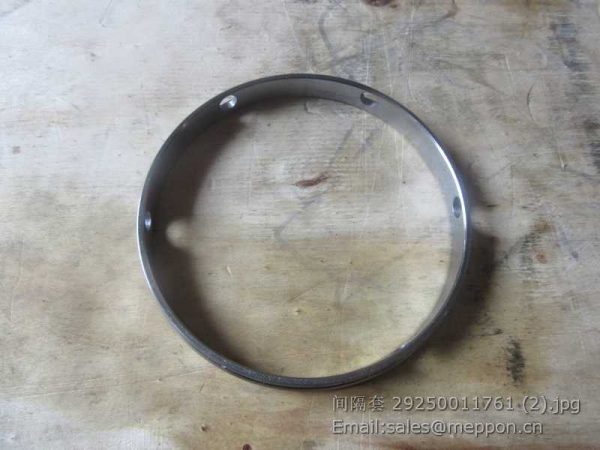

29250011761 SDLG SLEEVE

10 VG1540010006 6 6 气缸套 Cylinder liner
11 VG2600010659 6 6 喷嘴总成 Oil injection nozzle
12 90003909603 6 6 3×8 DIN1481 弹性圆柱销 Spring type straight pin
13 90003962621 6 6 A8 DIN7623-6S 空心螺栓 Hollow bolt
14 90003098015 6 6 A14×20 DIN7603 密封垫圈 Sealing ring
15 VG1500010125 2 2 止推片（付） Thrust washers
16 VG1540010021 7 7 主轴瓦上瓦 Main bearing
17 VG1540010022 7 7 主轴瓦下瓦 Main bearing
18 90003802493 5 5 DIN933-M8×110-8.8-Zn.D 六角头螺栓 Hex head bolt
19 VG1047010050 1 1 后油封 Rear oil seal
20 90003901604 6 6 12m6×20 DIN7 圆柱销 Straight pin
21 90003909626 6 6 6×12 DIN1481 弹性圆柱销 Spring type straight pin
22 VG1460070011 1 1 主油道后螺塞 Main oil gallery screw plug
23 VG2600010735 1 1 复合垫圈 Sealing washer
24 VG2600070097 1 1 回油弯管 Oil return elbow connector
25 VG2600010538A 1 1 油尺管堵 Dipstick jam
26 90003862428 22 22 内六角圆柱头螺钉 Socket cap screw
27 VG188250083 22 22 自锁垫圈 Lock washer
28 VG61000010134 1 1 密封圈 Sealing ring

1 R61540010009 1 1 单缸空压机正时齿轮室 Gearcase
2 VG2600010830 1 1 空压机齿轮盖 Air compressor gear cover
3 VG14010040 1 1 空压机齿轮盖垫片 Gasket
4 VG1047010038 1 1 前油封 Front oil seal
5 VG2600010928 1 1 前油封座 Front oil seal carrier
6 VG2600010934 1 1 前油封座垫片 Gasket
7 VG1500010008A 1 1 凸轮轴齿轮盖 Camshaft gear cover
8 VG14010070 1 1 凸轮轴齿轮盖垫片 Gasket
9 90003813429 10 10 DIN939-M8×22-8.8-Zn.D 双头螺柱 Stud
10 90003932023 11 11 B8 DIN137-Zn.D 波形弹性垫圈 Wave spring washer
11 90003871252 11 11 DIN934m-M8-8-Zn.D 1 型六角螺母 Hexagon nut
12 90003802576 1 1 DIN933-M10×90-8.8-Zn.D 六角头螺栓 Hex head bolt
13 90003932024 1 1 B10 DIN137-Zn.D 波形弹性垫圈 Wave spring washer
14 90003800571 1 1 DIN931-M10×80-8.8-Zn.D 六角头螺栓 Hex head bolt
15 90003931122 9 9 B10 DIN127-Zn.D 弹簧垫圈 Spring lockwasher
16 90003930271 2 2 A10.5 DIN125-st 平垫圈 Flat washer
17 90011260039 6 6 M6×30-8.8-H.Y GB/T5782 六角头螺栓 Hex head bolt
18 90003098015 6 6 A6.5×9.5DIN7603 复合密封垫圈 Sealing washer
19 90003862524 2 2 M10×20-8.8-ZN DIN912 内六角圆柱头螺钉 Socket cap screw
20 90003932025 2 2 A10 DIN137-Zn.D 鞍形弹性垫圈 Saddle shaped spring washer
21 90003813443 1 1 M8×30-8.8-ZN DIN939 双头螺柱 Stud

22 90003962051 1 1 CM30×1.5-5.8 DIN7604 轻型六角头圆柱螺塞 Screw plug
23 90003901507 4 4 10m6×16 DIN7 圆柱销 Straight pin
24 90003802523 3 3 DIN933-M10×25-8.8-Zn.D 六角头螺栓 Hex head bolt
25 90003813638 2 2 M12×35-8.8-ZN DIN939 双头螺柱 Stud
26 90003813628 6 6 M12×30-8.8-ZN DIN939 双头螺柱 Stud
27 90003888453 8 8 VM12-8-ZN DIN980 1 型全金属六角锁紧螺母 Self-locking nut
28 90003900085 4 4 Q5281220 弹性圆柱销 Spring type straight pin
29 90003802561 6 6 DIN933-M10×75-8.8-Zn.D 六角头螺栓 Hex head bolt
30 90003813470 2 2 双头螺柱 Stud
31 HG1500130235 1 1 液压转向泵 Hydraulic steering pump
