Description

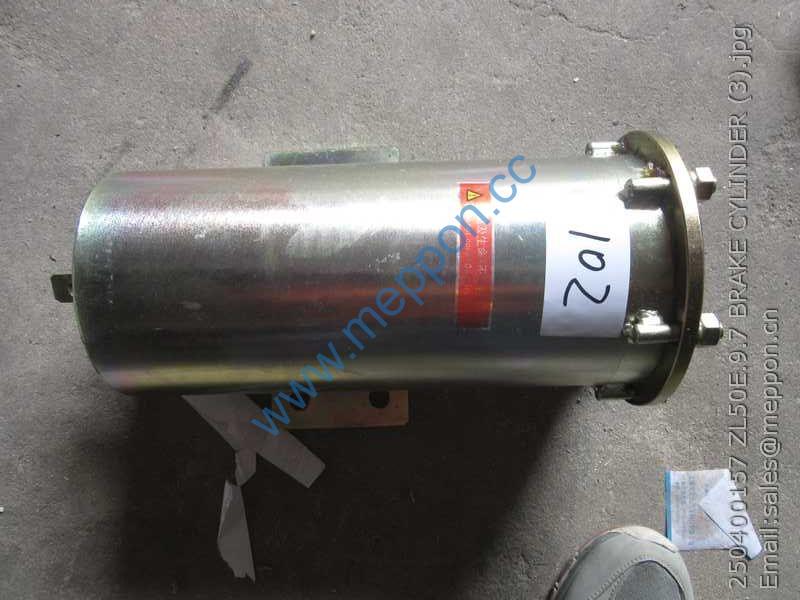

250400157 ZL50E.9.7 BRAKE CYLINDER XCMG
60008878 4 销 Pin
60008531 1 轴承盖板 Cover – Bearing
60008846 4 内六角螺栓 Bolt – Socket Head
B230101000629 1 密封圈 Seal – Oil
60008528 1 驱动轴 Shaft – Drive
60008582 4 垫片 Gasket
60008723 2 挡圈 Ring – Retaining
60008695 2 O形圈 Seal – O-Ring
60008741 2 轴承 Bearing
B229900005455 2 斜盘 Body – Frame
60008543 8 内六角螺栓 Bolt – Socket Head
B229900005456 2 斜盘支撑台 Cover – End
60008728 32 紧定螺钉 Setscrew
60008515 2 泵壳体 Housing – Pump
60008516 2 架体 Body – Frame
B229900005452 2 球面衬套 Retainer
60008545 18 弹簧 Spring
60008725 4 堵 Plug
60008705 4 O形圈 Seal – O-Ring
B229900005451 1 配油盘 Tray – Oil Distribution (Rh)
60008726 2 轴承 Bearing
60008492 1 1号齿轮 Gear
60008514 1 中间体 Block
60008724 4 堵 Plug
60008697 6 O形圈 Seal – O-Ring
60008737 2 销 Pin
60008527 1 驱动轴 Shaft – Drive
B229900005450 1 配油盘 Tray – Oil Distribution (Lh)
B229900005459 2 主泵缸体 Body – Cylinder
60008836 4 内六角螺栓 Screw
60008511 1 盖 Cover – Valve
60008501 2 套 Bushing
60008550 1 盖 Cover
60008843 3 内六角螺栓 Bolt – Socket Head
60008508 1 阀杆 Rod – Valve
60008493 1 阀座 Seat – Valve
60008523 1 挡圈 Ring – Retaining
60008500 1 弹簧 Spring
60008496 1 调节螺杆 Screw – Adjusting
60008505 1 螺母 Nut
60008512 1 机体 Body
60008552 1 齿轮 Gear
60008581 1 齿轮 Gear
60008491 1 滤芯 Element – Filter
60008509 1 机体 Body
60008730 2 螺钉 Screw
60008731 2 螺钉 Screw
60008729 4 螺钉 Screw
60008724 1 堵 Plug
60008504 1 垫圈 Washer
60008695 1 O形圈 Seal – O-Ring
B230101000047 1 O形圈10.8×2.4JISB2401 氟橡胶 Seal – O-Ring
B230101000229 1 O形圈 Seal – O – Ring
60008873 1 垫圈 Washer
