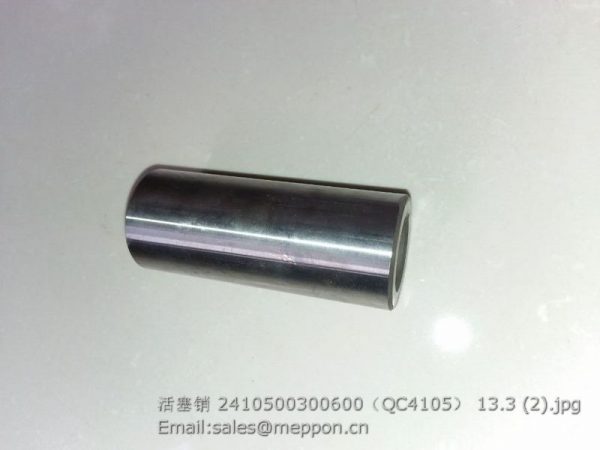

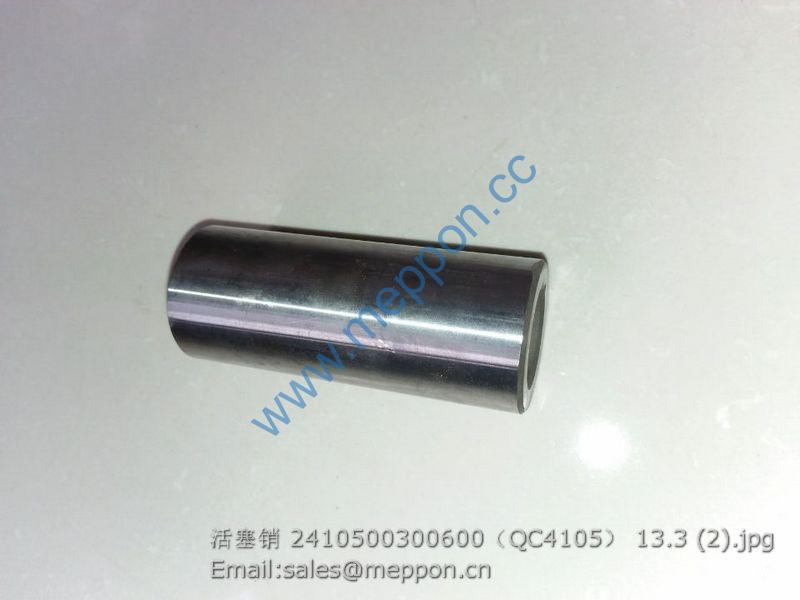

2410500300600 QC4105 PISTON PIN 4105QA-03006

TS10433010000 Braking system control assembly 1
1 TD800.43-01 Pedal retraction spring 2
2 FT800.43.103 Adjusting screw 2
3 GBT 5783-M8X20-8.8-A2L Bolt 1
4 GBT 93-8-A0P Washer 1
5 FT800A.43.053 Brake pedal support shaft weldment 1
6 TS10433010006 Right brake rocker arm unit 1
6.1 TG1654.212B.1-01 Liner 2
6.2 TS10433010005 Right brake rocker arm weldment 1
6.3 GBT 879.1-5X16 Pin 1
6.4 FT800A.43.065 Brake link lock lever weldment 1
7 GBT 6170-M10-8-A3L Nut 2
8 TS10433010004 Left brake rocker arm unit 1
8.1 TG1654.212B.1-01 Liner 1
8.2 TS10433010003 Left brake rocker arm weldment 1
9 GBT 894.1-30 Circlip 1
10 FT800A.43.401 Lock pin 1
11 FT800.43.030 Adjusting screw unit 2
12 JBT 7940.1-M8X1 Straight hydraulic grease nozzle 1
13 TD800.311C.1-01 Oil cup dustproof cap 1
14 TF1004.433-01 Nylon spacing sleeve 4

TS10433010000 Braking system control assembly 1
1 TG1204.433.2 Brake oil tank assembly 1
2 GBT 5783-M10X20-8.8-A3L Hexagon head bolt 2
3 GBT 93-10-A0P Standard spring washer 5
4 TD800.43.2 Brake oil tank trestle weldment 1
5 TG1204.433-04 Snap ring 2
6 Q673B115 Steel strap type spring clamp 2
7 FT800A.43C.105 Oil delivery hose 2
8 FT800.43.115 Oil pipe joint screw 2
9 JBT 982-12 Compound seal washer 4
10 FT800A.43C.018 Brake pump assembly 1
11 GBT 97.1-10-A0P Plain washer 3
12 GBT 5783-M10X30-8.8-A3L Hexagon head bolt 3

TS10433010000 Braking system control assembly 1
1 FT800.43.115 Oil pipe joint screw 2
2 JBT 982-12 Compound seal washer 4
3 TS10433010010 Left brake short oil pipe assembly 1
4 TS10433010008 Right brake short oil pipe assembly 1
5 GBT 5783-M8X40-8.8-A2L Hexagon head bolt 2
6 FT800A.43.315 Straight thread connector, body 2
7 TS10433010012 Right brake long oil pipe assembly 1
8 TS10433010015 Left brake long oil pipe assembly 1
9 FT800A.43C.229 Double-hole pipe clip 4
10 GBT 97.1-8-A0P Plain washer 2
11 GBT 93-8-A0P Standard spring washer 2
12 GBT 6170-M8-8-A2L Hexagon nut, style 1 2
13 TS10433010028 Hexagon bolt M10X1 2
14 JBT 982-10 Compound seal washer 4
15 FT800A.43C.230 Seal sleeve 2

TS11350010000 Traction device assembly 1
1 TD800.35A.1.2 Limitation pin and lock pin assembly 2
1.1 TD800.56C.11.1 Lock pin assembly 1
1.2 TD800.56C.11-02 Connecting ring 1
1.3 TD800.35A.1.2-01 Limitation pin 1
2 FT800.35.112 Spring lock pin 1
3 TS11350010005 Fixing pin 1
4 TS11350010006 EC certification sign 1
5 GBT 827-3X10-A0P Nameplate rivet 2
6 TS11350010001 Traction device assembly 1
6.1 GBT 5783-M16X80-8.8-A3L Hexagon head bolt 2
6.2 TS11350010002 Swing rod 1
6.3 TS11350010003 Bending plate 1
6.4 GBT 93-16-A0P Standard spring washer 2
6.5 GBT 6170-M16-8-A3L Hexagon nut, style 1 2
7 TA700.53C.1.3 Hitch pin and lock pin assembly 1
7.1 TA700.53C.1.3.1 Hitch pin weldment 1
7.2 TD800.35A.1.1.1 Lock pin and chain assembly 1
