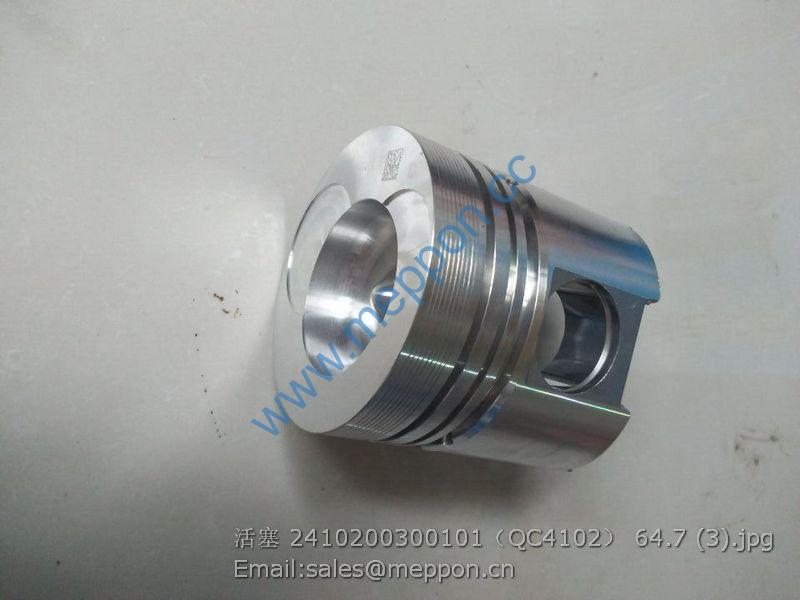

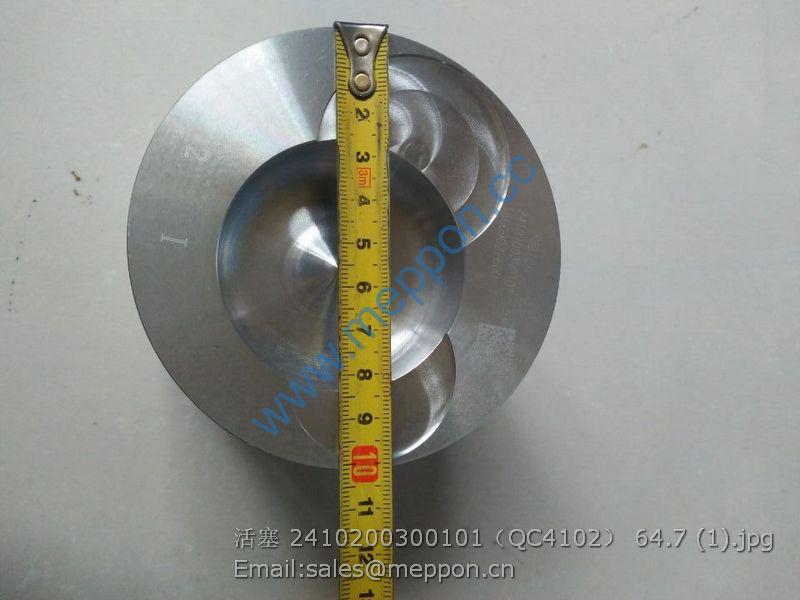

2410200300101 QC4102 4102QA-03001 quanchai piston

TG1204.311D Front drive axle assembly 1
1 024210 Oil nozzle M5×1 2
2 126922 Screw M14×35 12
3 133084 Main pin 2
4 030755 Screw plug DIA14.5 8
5 145026 Steering burl（left） 1
6 022431 Nut M20×1.5 2
7 128881 Main pin 2
8 024211 Oil nozzle M5×1(45℃ ) 2
9 123153 Steering arm component 2
10 049013 Ball hinge 2
11 070787 Nut M24×1.5 2
12 048976 Across pull rod 2
13 133581 Steering cylinder 1
14 128534 Screw M14×35 4
15 140224 Seal ring 2
16 125161 Bush 2
17 145025 Steering burl（right） 1
18 022129 Nut M16 2
19 124748 Screw M16×100 2
20 049213 Rod 1
21 049211 Cylinder end 1
22 049210 Seal package 1

TG1204.311D Front drive axle assembly 1
1 066742 Bevel gear pairs=13/33 1
2 125829 Washer 50×40.5×2 2
3 126369 Adjusting washer 1
4 113717 Locking washer 1
5 115054 Round nut 1
6 134339 Oil seal 1
7 027350 Bearing 1
8 027395 Bearing 1
9 134186 Adjusting washer2.50 As required
9 134187 Adjusting washer2.60 As required
9 134188 Adjusting washer2.70 As required
9 134189 Adjusting washer2.80 As required
9 134190 Adjusting washer2.90 As required
9 134191 Adjusting washer3.00 As required
9 134192 Adjusting washer3.10 As required
9 134193 Adjusting washer3.20 As required
9 134194 Adjusting washer3.30 As required
9 134195 Adjusting washer3.40 As required
10 138443 Double cardan universal joint 2
11 046293 Cross spider (differential end) 2
12 046279 Center body 2
13 046837 Cross shaft 4
14 046246 Cross spider (wheel end) 2
15 145553 Thrust washer 2
16 140023 Washer 2
17 024799 Retainer ring 2

TG1204.311D Front drive axle assembly 1
1 128440 Bolt M6×10 2
2 136024 Locking piece 2
3 107400 Round nut M92×2 2
4 027256 Bearing 2
5 642042 Bolt M10×30 12
6 133151 Front drive hub 1
7 113880 Stator 10
8 113879 Rotor plate 8
9 113883 Rotor plate 2
10 066295 Differential gear component 1
11 115730 Washer 4
12 133155 Shaft 2
13 070273 Pin D7×65 3
14 137537 Joint spider set 1
15 115731 Shaft 1
16 133150 Differential housing 1

TG1204.311D Front drive axle assembly 1
1 047702 Seal ring 2
2 118370 Bearing 4
3 066609 Hub set 2
4 117928 Bolt 20
5 028579 O-ring 2
6 125233 Retainer ring 2
7 139633 Supporting disk of inner gear ring 2
8 119906 Bolt M14×65 16
9 125190 Locating bush 16
10 125186 Inner gear ring 2
11 125229 Bolt M10×50 6
12 132319 Thrust washer 6
13 028370 Needle roller bearing 6
14 125134 Thrust washer 6
15 028301 Needle roller bearing 16
16 128714 Gear Z31 6
17 128731 Thrust washer 6
18 066296 Planet bracket 2
19 125280 Screw plug M30×2 2
20 020490 Bolt M30×20 4
21 TTG1204.34-01 Washer 20
22 GB/T 6176-M20×1.5-10-A3L Nut 20

TG1204.312D Bracket assembly 1
1 GBT5782-M20X100-12.9-A3L Bolt 8
2 TG1204.34-01 Washer 8
3 TG1204.312D-01a Bracket 1
4 TG1204.312C-02 Locating sleeve 2

TG1454.32 Front driving wheel assembly 1
1 TB604.34A.1.2 Tire and tube assembly 14.9-28 1
1.1 GBT2979-14.9-28-6PR-R Diagonal tire with conventional section, tractor driving wheel 1
1.2 GBT2979-14.9-28-R Tube, tractor driving wheel 1
2 TG1454.32.1 Rim assembly 1
2.1 GBT6171-M16X1.5-10-A3L Nut 12
2.2 TG1604.32D.1-04 Gasket 12
2.3 TG1454.32.1-01 Spoke plate 1
2.4 TG1604.32D.1-02 Cushion block 12
2.5 TG1454.32.1.1 Rim welding assembly 1
2.6 TG1604.32D.1-03 Square stud 12
