Description

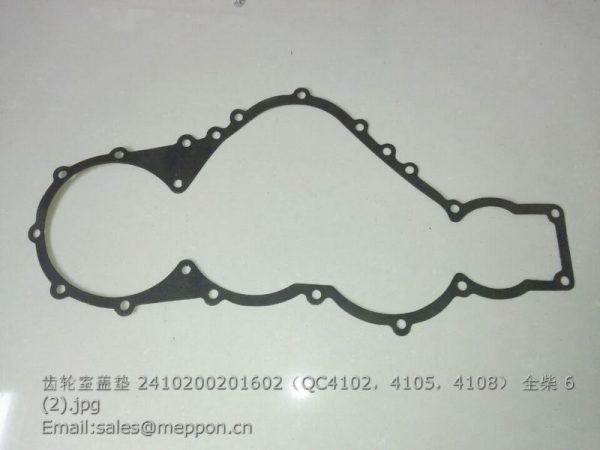

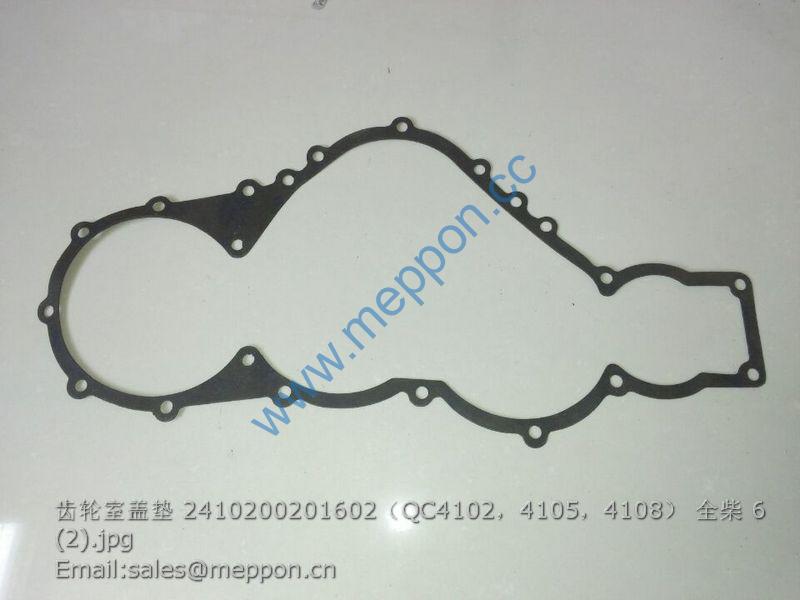

2410200201602 QC4102 QC4105 QC4108 Gasket of gear room cover 4102T-02003

TB400.411D PTO gear assembly 1
1 GBT 894.1-40 Circlip 2
2 GBT 276-6208 Bearing 1
3 FT300.41E.120 PTO high-speed driving gear 1
4 FT300.41E.121 Spacing sleeve 1
5 FT300.41E.106 PTO low-speed driving gear 1
6 GBT 276-6308N Bearing 1
7 GBT 305-90-96.5 Thrust ring 1
8 GBT 812-M25X1.5 Round nut 1
9 GBT 858-25 Thrust ring 1
10 FT300.41.122 Washer 1
11 GBT 276-6306 Bearing 1
12 FT300.41C.118 PTO front circlip 1
13 FT300.41E.105 PTO driven pinion 1
14 JBT 7918-K35X40X27 Bearing 1
15 FT300.41C.117 PTO joggle seat 1
16 FT300.41C.116 PTO joggle sleeve 1
17 FT300.41E.103 PTO driven gear 1
18 Q/LWZ B120-K40X46X34ZW Needle bearing 1
19 FT300.41E.114 Rear circlip 1
20 FT300.41E.119 Thrust ring 1
21 GBT 276-6309 Bearing 1
22 FT300.41E.113 PTO shaft bearing washer 1
23 GBT 9877.1-FB50X72X8D Oil seal 2
24 FT300.41E.115 Oil seal circlip 1
25 FT300.41E.101 Rear end cover I 1
26 GBT 93-12-AOP Washer 8
27 GBT 5782-M12X55-A3L Bolt 4
28 GBT 5781-M12X25-A3L Bolt 4
29 FT300.41.131a Safety shield 1

TB550.412 PTO shaft assembly 1
1 TB550.412-01 Type I38 PTO shaft 1
2 TB550.412-02 PTO shaft head shield 1

TB550.413D PTO control assembly 1
1 FT300.41.015 PTO control handle assembly 1
2 GBT 6170-M10-8-A3L Hexagon nut , Style 1 2
3 TB550.413D.1 Control handle lever weldment, PTO 1
4 FT300.41.128 Spacer bush 1
5 GBT 882-B10X30 Axis pin 2
6 FT300.43.108 Front fork, pull rod 1
7 FT300.41E.112 Control lever 1
8 FT300.41.130 Shaft sleeve 1
9 FT300.41.129 Washer 1
10 GBT 93-12-A0P Standard spring washer 1
11 TB550.413-02 Bolt M12X75 1
12 GBT 97.1-10-A0P Flat washer 2
13 GBT 91-3.2X16-A0P Split pin 2
14 GBT 91-2.5X32-A0P Split pin 1
15 TB550.413-03 Screw 1
16 FT704.42B.163 Retaining spring, fork shaft 1
17 GBT 308-9.5-G100-b Steel ball 1
18 TB550.413-04 Finger-type driving lever 1
19 GBT 3452.1-11.2X2.65G Hydraulic and pneumatic O-ring 1
20 FT300.41E.109 Shift lever shaft sleeve 1
21 GBT 93-8-A0P Standard spring washer 2
22 GBT 5783-M8X20-8.8-A2L Hex head bolt 2
23 FT300.41.012 Gear shift lever welded unit, PTO 1
24 GBT 879.1-6X26 Elastic cylindrical pin 1
25 GBT 879.1-3.5X26 Elastic cylindrical pin 1
26 TB550.413-01a Control shift fork, PTO 1
27 FT300.41C.107a Fork shaft, PTO 1
28 TB550.413D.2 Control connecting-rod assembly, PTO 1
28.1 TB550.413D.2.1 Control connecting-rod weldment, PTO 1
28.2 FT300.41.127 Bush 1
29 GBT 5783-M6X25-8.8-A2L Hex head bolt 2
30 GBT 93-6-A0P Standard spring washer 2
31 GBT 3452.1-16.0X2.65G Hydraulic and pneumatic O-ring 2
32 FT300.43.110 Rear fork, pull rod 1

TB554.421C Transfer Case Body Assembly 1
1 TB554.421C.1 Transfer Case Installation Assembly 1
1.1 FT304.42.102 Idler shaft 1
1.2 FT304.42F.103 Thrust ring 2
1.3 JBT 7918-K25X31X20 Rolling needle bearing 2
1.4 FT304.42.126 Rolling needle inner spacing sleeve 1
1.5 FT304.42F.125 Transfer case idler 1
1.6 FT304.42F.101a Transfer case body 1
1.7 FT304.42.112 Thrust screw 1
1.8 GBT 6173-M10X1-A2L Nut 1
1.9 GBT 276-6306 Bearing 2
1.10 FT304.42.117 Bearing cover 1
1.11 GBT 93-8-AOP Washer 8
1.12 GBT 5783-M8X20-A2L Bolt 8
1.13 GBT 3452.1-17.0X1.80G O-ring 2
1.14 TB554.421E.1.1 Rotary shaft weldment 1
1.15 TB554.423B-02 Rotary shaft spacing sleeve 1
1.16 TB554.421E.1-05 Side cover 1
1.17 GBT 93-10-A0P Washer 4
1.18 GBT 5782-M10X45-A3L Bolt 4
1.19 TB554.421E.1-04 Shift fork shaft 1
1.20 GBT 879.1-6X30 Cylindrical pin 1
1.21 GBT 879.1-3.5X30 Cylindrical pin 1
1.22 GBT 308-10-G100-b Steel ball 1
1.23 FT804.42.151 Spring 1
1.24 TB554.421E.1-06 Release shift fork 1
1.25 JBT 982-18 Washer 2
1.26 FT804.42.110 Screw plug 2
1.27 FT304.42F.105 Transfer case output shaft 1
1.28 TB554.421C.1-01 Transfer case driven gear 1
1.29 GBT 9877.1-FB30X52X7D Oil seal 1
1.30 FT304.42F.106 Bearing seat 1

2 GBT 3452.1-132X3.55G O-ring 1
3 GBT 93-10-A0P Washer 4
4 GBT 5783-M10X30-8.8-A3L Bolt 4
5 GBT 119.1-10m6X20-A0P Pin 2
