Description

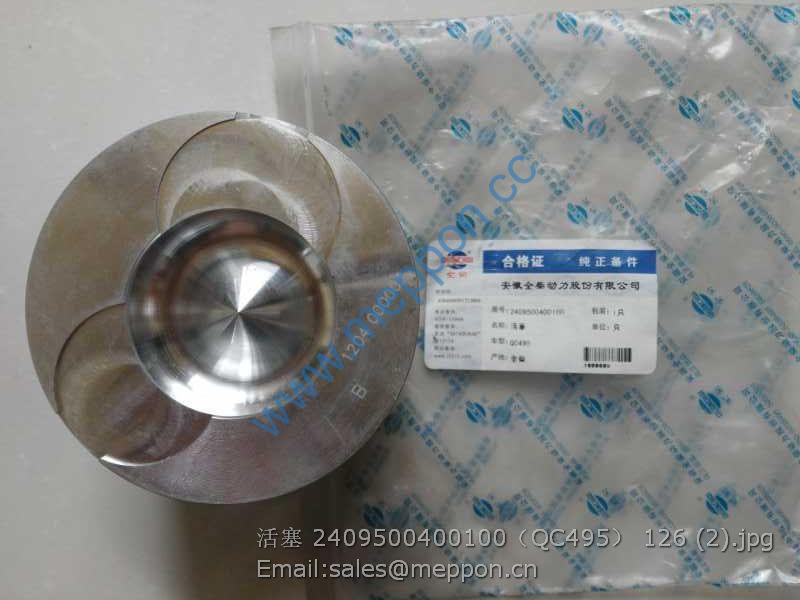

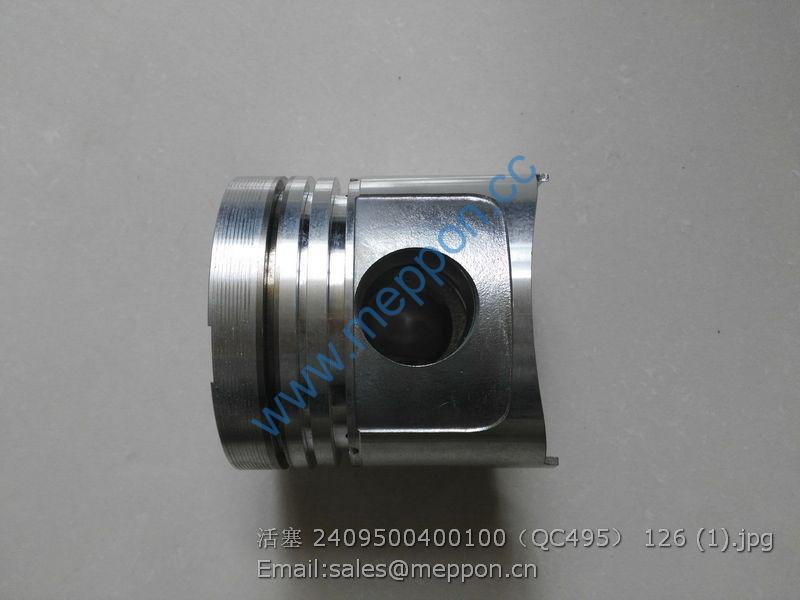

2409500400100 QC495 QUANCHAI PISTON

TG1204.411J PTO gear assembly 1
1 GBT812-M48X1.5 Round nut 2
2 GBT858-48 Washer 1
3 TG1204.411-12 Round nut circlip 1
4 GBT276-6310 Bearing 1
5 TG1204.411-11 PTO transmission shaft middle circlip 1
6 Q/LWZ B120-K66X76X50ZW Roller needle bearing 2
7 TG1204.411-10 PTO gear sliding sleeve 2
8 TG1204.411D-03 PTO low-gear driven gear 1
9 FT800.37.118 Gear Ⅲ – Ⅳ engage sleeve 1
10 FT800.37.119 Gear Ⅲ – Ⅳ engage teeth seat 1
11 TG1204.411D-02 PTO high-gear driven gear 1
12 TG1204.411-08 PTO rear circlip 1
13 GBT297-30212 Taper roller bearing 2
14 GBT9877.1-FB70X90X10D Oil seal 2
15 TG1204.411G-01 PTO transmission shaft rear oil seal seat 1
16 GBT93-16-A0P Spring washer 4
17 GBT5783-M16X40-8.8-A3L Bolt 4
18 TG1204.411-06 PTO transmissions shaft 1

TG1654.412A PTO control assembly 1
1 TG1204.435.3 Handle assembly 1
2 GBT6171-M10X1-A2L Nut 3
3 TG1654.412-01 Control rod 1
4 TG1204.435.2 Seal lining block assembly 1
4.1 GBT818-M6X14-A2L Screw 2
4.2 TE250.362D.1-01 Spherical shaft lining block 2
4.3 TE250.362D.1-02 Spherical shaft lining 1
4.4 GBT93-6-AOP Washer 2
4.5 GBT6170-M6-A2L Nut 2
5 Q722-20 Bowl plug piece 2
6 TG1204.412.1-02 PTO fork steering shaft 1
7 GBT3452.1-17.0X1.80G O-ring 3
8 TG1204.412.1-08 Locating plate 1
9 GBT93-10-AOP Washer 1
10 GBT5783-M10X25-A3L Bolt 1
11 GBT879.1-5X35 Spring column pin 2
12 GBT879.1-8X35 Spring column pin 2
13 FT800A.43B.116 Right revolving pull rod fork 2
14 FT800A.43B.011 Positioning pin riveting piece 3
15 TG1204.412A-01b Rocker 1
16 TG1204.412A.1 Pull rod weldment 1
17 FT800A.43B.119 Left revolving pull rod fork 1
18 TG1204.412A-02 PTO gearshift rocker 1
19 FT800.37.169 Locating plate 1
20 TG1204.412.2-04 PTO high & low gear rocker 1
21 TG1204.412.1-09 Fastening steel wire 2
22 FT800.37.194 Locking screw 2
23 FT800.37A.221 Climb gear fork head 1
24 TG1204.412.2-01 PTO gearshift fork 1
25 TG1204.412A-03 PTO gearshift fork shaft 1
26 GBT308-10-G100-b Steel ball 1

27 FT800.37.139 Spring 1
28 GBT71-M12X40-A3L Screw 1
29 GBT6172.1-M12-A3L Nut 1
30 GBT6171-M10X1-LH-A2L Nut 1
31 TG1204.412A-05 High-gear limitation plate 1
32 GBT70.1-M10X20 Screw 1

TG1204.414A PTO protection shield assembly 1
1 TG1204.411G-02 PTO shaft end shield 1
2 GBT97.1-8-A0P Washer 4
3 GBT93-8-A0P Washer 4
4 GBT5783-M8X16-8.8-A2L Bolt 4
5 TG1204.411-16 PTO protection shield 1
6 GBT93-12-A0P Spring washer 4
7 GBT5783-M12X25-A3L Bolt 4

TG1204.42E Transfer case assembly 1
1 GBT75-M10X25-A3L Check screw 1
2 GBT6172.1-M10-A3L Hex thin nut 1
3 TG1204.42A-04 Transfer case idler shaft 1
4 TG1204.42A-03 Taper roller bearing 2
5 TG1204.42A-01 Transfer case idle wheel 1
6 TG1204.42A-05 Idle wheel spacer bush 1
7 TG1204.42A-06 Round nut shim 1
8 TG1204.42A-07 Lock round nut 1
9 GBT297-32209 Taper roller bearing 2
10 TG1204.42-09 Front driving gear sleeve 1
11 TG1204.42B-01 Transfer case driven gear 1
12 TG1204.42-07 Transfer case friction reducing pad 1
13 TG1204.42-06 Front driving hitching sleeve 1
14 TG1204.42C-01 Transfer case output shaft 1
15 GBT5782-M12X55-A3L Bolt 4
16 GBT93-12-A0P Spring washer 4
17 TG1204.42-01 Oil seal seat 1
18 GBT9877.1-FB45X65X8D Oil seal 2
19 TG1204.42-02 Transfer case bearing adjusting washer On demand
20 TG1204.42-03 Transfer case bearing adjusting washer On demand
21 TG1204.42-04 Transfer case bearing adjusting washer On demand

TG1204.311D Front drive axle assembly 1
1 139879 Front axle housing 1
2 133575 Front support 1
3 101565 Bush 1
4 101575 Bush 1
5 28215 Seal ring 1
6 127376 Thrust washer 1
7 116529 Bush 4
8 126634 Bolt 2
9 024210 Oil filler M6×1 2
10 104988 Breather plug M10×1 1
11 128633 Spherical washer 2
12 147863 Bush 2
13 116962 Bush 2
14 145761 Seal ring 2
15 123726 Globe bearing 2
16 128630 Spherical washer 2
17 137613 Bracket 1
18 126022 Bolt 4
19 072235 Bush 4
20 087660 Pin 15×25 2
21 128050 Screw plug M24×1.5 2
22 133582 Thrust washer 1
23 124592 Bush 1
24 123475 Bush 1
25 28498 O-ring 1
26 133576 Rear support 1
27 28640 Seal ring 1
28 125827 Bolt M12×23 10
29 TG1204.34-01 Washer 4
30 GB/T 5782-M20×95-12.9-A3L Bolt 4
