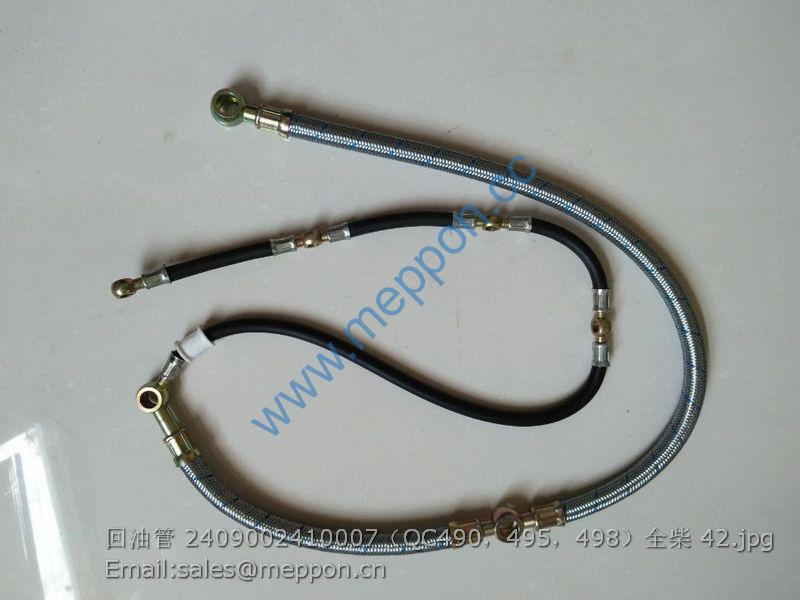

2409002410007 QC490 QC495 QC498 oil return pipe

Description

TG1854.20 Engine control mechanism assembly 1
1 FT650.20.101 Foot pedal 1
2 GBT879.1-5X20-A0P Elastic cylindrical pin 4
3 FT650.20.107 Rubber plug 1
4 GBT5781-M8X50-4.8-A2L Hex head bolt 1
5 GBT6172.1-M8-04-A2L Hexagon thin nut 3
6 TG1204.20A.5 Foot pedal rocker arm weldment 1
7 GBT5783-M8X20-8.8-A2L Hex head bolt 2
8 FT650.20.108 Throttle support 1
9 FT650.20.104 Torsion spring 1
10 GBT97.1-8-A0P Flat washer 2
11 GBT93-8-A0P Washer 4
12 TG1854.20.1 Foot throttle rocker arm weldment 1
13 GBT97.1-6-A0P Flat washer 1
14 GBT91-2X12-A0P Split pin 2
15 GBT882-B5X18-A0P Axis pin 1
16 GBT97.1-5-A0P Flat washer 1
17 TG1204.20A-15 Foot throttle cable assembly 1
18 FT65.45.393 Throttle pedal sealing gland 1
19 TG1204.20A-10 Nylon bush 1
20 TG1204.20A-09 Connecting sleeve 1
21 TG1204.20A-08 Revolving shaft 1
22 TG1204.20A-11 Adjusting shim 1 As required
23 TG1204.20A-12 Adjusting shim 2 As required
24 TG1204.20A-13 Adjusting shim 3 As required
25 TG1204.20A-14 Adjusting shim 4 As required
26 TG1854.20.2 Throttle bracket weldment 1
27 GBT819.1-M8X20-4.8-A2L Cross recessed countersunk head screw 2
28 GBT6170-M8-8-A2L Hexagon nut , Style 1 2

TS08220010000K Exhaust system assy 1
1 TS08220010004K Muffler assy 1
2 GBT6170-M12-8-A3L Type 1 hex nut 1
3 GBT93-12-A0P Standard spring washer 1
4 GBT97.1-12-A0P Flat washer 3
5 GBT5783-M6X16-8.8-A2L Hex bolt 1
6 GBT93-6-A0P Standard spring washer 10
7 GBT6170-M6-8-A2L Type 1 hex nut 2
8 TD900.22B-07 Clamp 2
9 GBT5783-M12X30-8.8-A3L Hex bolt 1
10 GBT5782-M12X50-8.8-A3L Hex bolt 1
11 TF1004.22A-03 Pull rod 1
12 TD900.22B-03 Upper rubber pad 1
13 TS08220010001K Bracket weldment 1
14 GBT96.1-12-A0P Big washer 1
15 SPL6177.1-M12-F3 Hex flange nut 1
16 SPL6175PT-M10X1.5-8F3 Spiralock type 2 hex self-locking anti-off nut 4
17 TG1204.22A.1 Seal assembly 1
18 GBT5783-M10X40-8.8-A3L Hex bolt 4
19 TG1204.22A.4 Lower protective net weldment 1
20 TF1304.22D-01 Upper protective net 1
21 GBT5783-M6X12-8.8-A2L Hex bolt 8
22 GBT97.1-6-A0P Flat washer 4
23 GBT5783-M6X20-8.8-A2L Hex bolt 1

TG1204.211 Clutch assembly 1
1 L-03035-0776-00 Assistant clutch driven plate assy 1
2 L-02103-0334-00 Assistant clutch platen 1
3 L-04133-0009-03 Diaphragm spring 1
4 L-02103-0335-02 Main clutch platen 1
5 L-0305-0105-00 Main driven plate assembly 1
6 L-0210-0014-04 Clutch housing 1
7 L-02615-0034-02 Assistant releasing lever assembly 1
8 L-02615-0035-02 Main releasing lever assembly 1

TG1654.212B Control assembly, master clutch 1
1 GBT5783-M10X20-8.8-A3L Hex head bolt 1
2 GBT93-10-A0P Standard spring washer 2
3 TG1654.212B.2 Support shaft weldment, clutch pedal 1
4 FT800A.43B.125 Gasket 2
5 GBT5783-M10X40-8.8-A3L Hex head bolt 1
6 GBT6170-M10-8-A3L Hexagon nut , Style 1 1
7 TG1654.212B.1 Master clutch pedal cluster 1
7.1 TG1204.212.1.1 Master clutch pedal weldment 1
7.2 TG1654.212B.1-01 Bush 2
8 FT800.21.206 Return spring, clutch pedal 1
9 GBT894.1-30 Retainer ring 1
10 GBT882-B10X30 Axis pin 2
11 GBT848-10-A0P Small gasket 2
12 GBT91-3.2X20-A0P Split pin 2
13 FT800.21.240 Front fork, pull rod 1
14 GBT6171-M10X1-8-A2L Hexagon nut , Style 1 1
15 TG1654.212.1 Master clutch pull-rod weldment 1
16 FT800.21.241 Rear fork, pull rod 1
17 TG1204.212.2 Rocker-arm weldment, master clutch 1
18 FT800.21.239 Fastening screw 1
19 TA800.212B-02 Mild steel wire SZ-1.4 1
20 TG1204.212-01 Master clutch fork shaft 1
21 TG1204.212-03 Axis pin 2
22 TG1204.212-02 Master clutch bearing block 1
23 TG1204.212.5 Master clutch release bearing 65TNK20 1
24 JBT7940.1-M8X1 Straight-through type forced filling oil cup 3
25 TD800.311C.1-01 Dust cap, oil cup 3
26 TF1004.212-02 Clutch pull-rod protecting sleeve 1
27 GBT93-8-A0P Standard spring washer 12
28 TG1204.212-04 Bolt M8X115 12

TG1654.213 Auxiliary clutch control assembly 1
1 TG1204.213.1 Auxiliary clutch control handle assembly 1
1.1 FT800A.21.045 Button assembly 1
1.2 FT800A.21.319 Control handle sleeve 1
1.3 FT800.43.180 Spring 1
1.4 FT800A.21.315 Top rod 1
1.5 FT800A.21.320 Bonnet 1
1.6 GBT68-M4X10-A1L Screw 4
1.7 FT800A.21.044 Control handle assembly 1
1.8 FT800A.21.322 Small pin shaft 1
1.9 FT800A.21.314 Pawl 1
1. 10 GBT894.1-6 Retainer ring 1
1.11 FT800A.21.323 Pin 1
1.12 FT800A.43.310 Ratchet 1
1.13 GBT894.1-13 Retainer ring 2
1.14 FT800A.21.321 Pin shaft 1
1.15 TG1204.213.1.1 Assistant clutch control handle fixing seat unit 1
1.16 TG1204.213.1-01 Assistant clutch pull rod 1
2 GBT5781-M8X60-A2L Bolt 2
3 GBT5781-M8X25-A2L Bolt 2
4 GBT93-8-A0P Washer 4
5 GBT6170-M8-A2L Nut 4
6 TG1654.213-01 Pull rod 1
7 GBT6171-M10X1-LH-A2L Nut 1
8 FT800.21.240 Pull rod front fork 1
9 GBT882-B10X30-A2L Pin shaft 1
10 GBT848-10-A0P Washer 1
11 GBT91-3.2X20-A0P Pin 1
12 GBT5781-M12X30-A3L Bolt 3
13 GBT93-12-A0P Washer 3
14 TG1204.213.3 Assistant clutch bracket weldment 1
15 GBT894.1-30 Retainer ring 1
