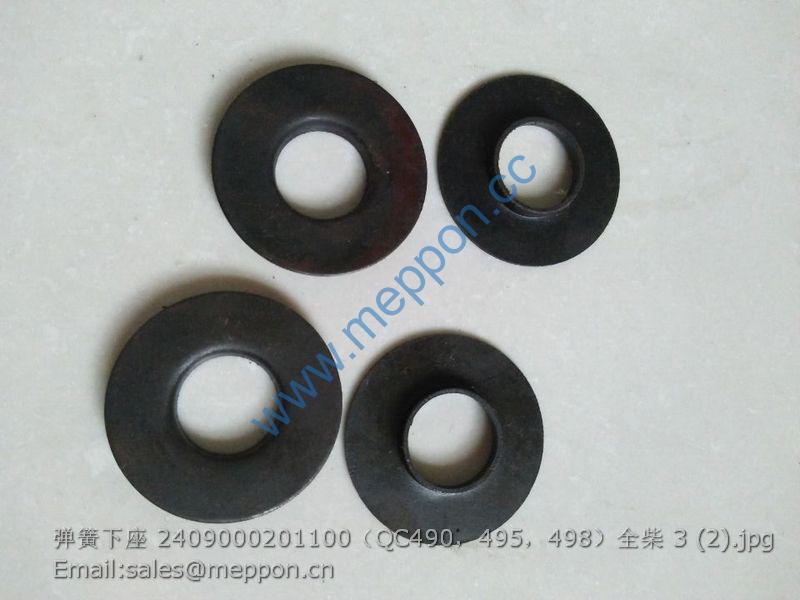

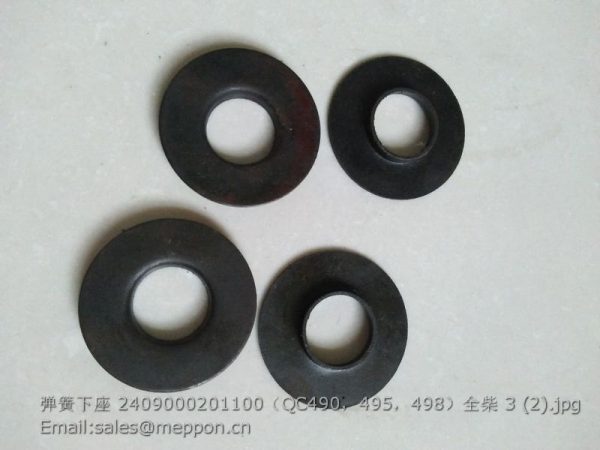

2409000201100 QC490 QC495 QC498 QC490Q(DI)-03011 VALVE SPRING LOWER SEAT

TB300.583A Single-way hydraulic outlet assembly 2 1
1 FT354.58A.104 Oil pipe joint 1
2 FT354.58A.030 Quick-adapt joint 1
3 FT354.58A.103 Dustproof cover 1

TB400.44G Seat mounting assembly 1
1 TB400.44G.1 Seat assembly 1
2 GBT 93-10-A0P Standard spring washer 4
3 GBT 5783-M10X20-8.8-A3L Hex head bolt 4

TB554.452 Floor assembly 1
1 GBT 5783-M6X16-8.8-A2L Hex bolt 27
2 GBT 93-6-A0P Standard spring washer 38
3 GBT 97.1-6-A0P Flat washer 11
4 TB554.452.4 Rear plate weldment 1
5 TB554.452.2 Right mudguard assembly 1
6 TB554.452.3 Floor weldment 1
7 TB554.452.1 Left mudguard assembly 1
8 GBT 5783-M6X25-8.8-A2L Hex bolt 4
9 GBT 96.1-6-A0P Big washer 26
10 GBT 5783-M6X45-8.8-A1L Hex bolt 6

TB554.452 Floor assembly 1
1 TB550.452J.4 Rear-view mirror trestle weldment 1
2 GBT 93-8-A0P Standard spring washer 20
3 GBT 6170-M8-8-A2L Type 1 hex nut 4
4 TB600.45L-02 Instrument panel assembly 1
5 TB600.45L-69 Instrument panel seal strip 1
6 TB400.456A.3 Rear-view mirror assembly 2
7 TB550.452J.5 Right trestle weldment 1
8 TB400B.471-30 Bonnet air spring 2
9 TB550.452J-01 Front windscreen glass 2
10 TA700.452B-02 Plastic cast nut 8
11 TA700.452B-03 Rubber gasket 16
12 GBT 93-5-A0P Standard spring washer 8
13 GBT 5783-M5X16-8.8-A2L Hex bolt 8
14 GBT 5783-M8X65-8.8-A2L Hex bolt 4

TB400.457B Front connection assembly 1
1 TB400.457B-02 Circlip 4
2 TB400.457B-01 Shock absorbing block 2
3 TB400.457B.2 Right front connection weldment 1
4 GBT 97.1-16-A0P Flat washer 2
5 GBT 93-16-A0P Standard spring washer 2
6 GBT 5783-M16X80-8.8-A3L Hex bolt 2
7 GBT 5783-M12X35-8.8-A3L Hex bolt 8
8 GBT 93-12-A0P Standard spring washer 8
9 GBT 97.1-12-A0P Flat washer 8
10 TB400.457B.1 Left front connection weldment 1

TB400.46H Safety frame mounting assembly 1
1 TB400.46C.3 Sunshade assembly 1
1.1 GBT 5783-M6X25-8.8-A2L Hex head bolt 12
1.2 GBT 93-6-A0P Standard spring washer 12
1.3 GBT 97.1-6-A0P Flat washer 12
1.4 TE254.46.2.1-02 Rubber washer 12
1.5 TB400.46C.3.1 Sunshade 1
1.6 GBT 6170-M10-8-A3L Hexagon nut , Style 1 4
1.7 GBT 93-10-A0P Standard spring washer 4
1.8 FT400.46.021 Gasket cluster 4
1.9 TB400.46C.3.3 Sunshade fixed mount weldment 1
1.10 GBT 818-M10X30-4.8-A3L Cross recessed pan head screw 4
1.11 TB400.46C.3-01 Sunshade fixed mount 2
1.12 GBT 6170-M12-10-A3L Hexagon nut , Style 1 4
1.13 GBT 93-12-A0P Standard spring washer 4
1.14 GBT 96.1-12-A3L Big gasket 4
1.15 GBT 97.1-12-A0P Flat washer 4
1.16 GBT 5782-M12X110-8.8-A2L Hex head bolt 4
1.17 GBT 97.1-8-A0P Big gasket 4
1.18 GBT 93-8-A0P Standard spring washer 4
1.19 GBT 5783-M8X20-10.9-A2L Hex head bolt 4
2 TB400.46C-01 Blanking cap 8
3 TB400.46D.1 Safety frame assembly 1
3.1 TB400.46D.1.4 Top bar weldment 1
3.2 TB400.46D.1.1 Left support weldment 1
3.3 GBT 5782-M16X90-10.9-A2L Hex head bolt 6
3.4 GBT 97.1-16-A0P Flat washer 12
3.5 GBT 93-16-A0P Standard spring washer 6
3.6 GBT 802-M16-6 Combined cap nut 6
3.7 TB400.46D.1.2 Right support weldment 1
4 GBT 5783-M14X40-8.8-A3L Hex head bolt 4
5 GBT 93-14-A0P Standard spring washer 12

6 GBT 6170-M14-8-A3L Hexagon nut , Style 1 16
7 GBT 97.1-14-A0P Flat washer 12
8 FT400.46.350 U-bolt 4
9 TB400.46H-01 OECD nameplate 1
10 GBT 12618-3X15 Open-type flat head blind rivet 4
