Description

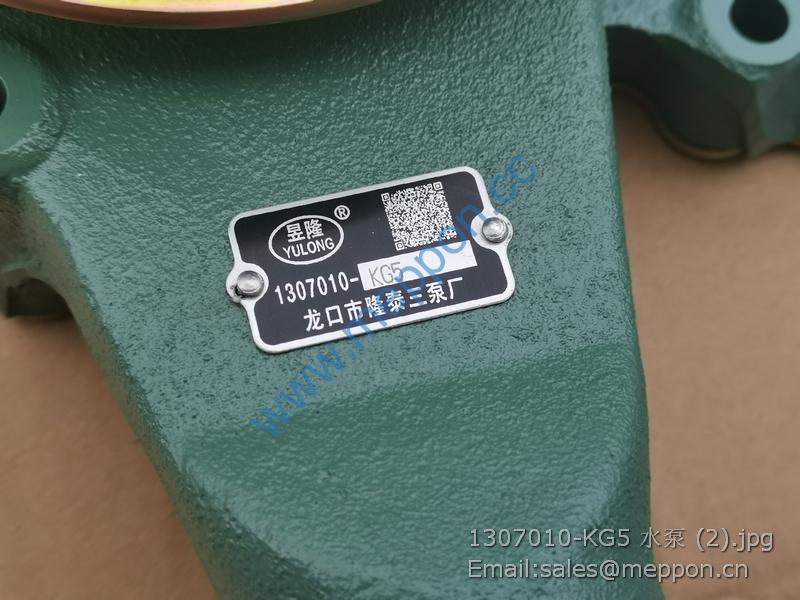

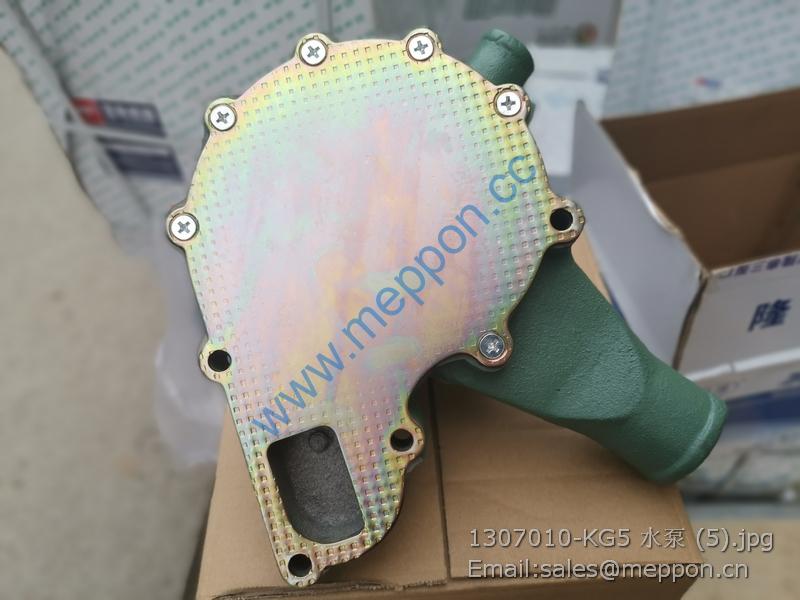

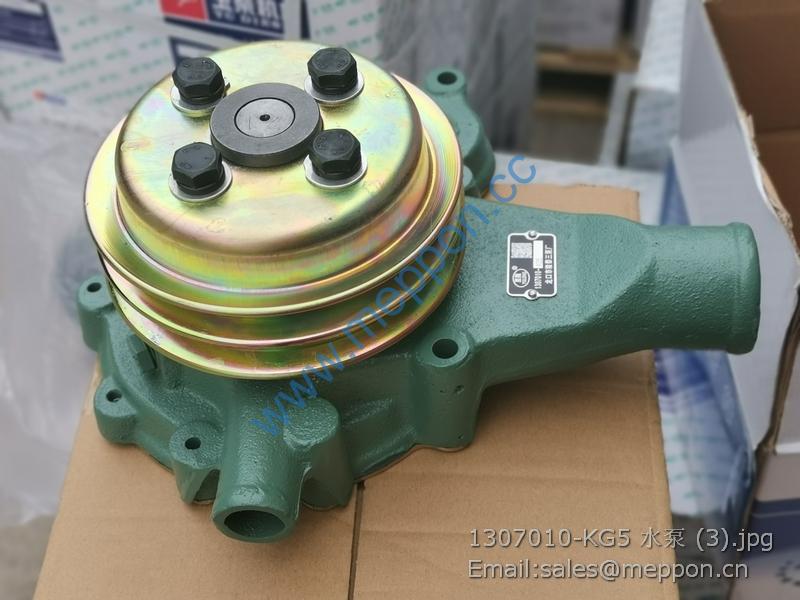

1307010-KG5 WATER PUMP

38 Crank axle 5129386/1.82.506 1 52 O-sealing ring 15.54×2.62 14457281/14618 1
39 Support, lever 5129400/1.82.531 1 53 Shaft, inner lever 5135221/1.82.533 1
40 Spring 4959139/1.63.807 1 54 Bushing, load control lever 5135219/1.82.546 1
41 Bolt, limit adjustment M8×1.25×55 5121522/1.82.540 1 55 Inner lever assembly 5117151/1.82.535 1
42 Screw tube, limit adjustment M8×1.25×20 5121523/1.82.540A 1 56 Control lever (RR), load control 885136355/1.82.548A 1
43 Stopper (FR) 885120284/1.82.539A 1 57 Fork, rod, load control 885136356/1.82.548 1
44 Retainer ring 12 13397576/12248 1 58 Spring clip 11064176/12252 1
45 Pin 5117156/1.82.530 1 59 Cam, position control 5117143/1.82.522 1
46 Raise-Neutral-Lower cam 5129396/1.82.527 1 60 Limit link 5120285/1.82.538 1
47 Cam, load control 5122497/1.82.524 1 61 Spring 4973650/1.82.563 1
48 Screw M8×12 GB 71-85 1 62 Elastic cylindrical pin 3×22 BZ/JHX-SZ 1
49 Bolt M10×1.25×18 GB/T5786-2000 1 63 Elastic cylindrical pin 4×20 BZ/JHX-SZ 1
50 Washer 10 14198800/10182 1 64 Needle bearing 12×16×10 5117138/1.82.537 2
51 Grip, shaft, inner lever, load control 5135220/1.82.515A 1 65 Joystick assembly, main control
valve
5126220/1.82.512 1
66 Bolt M8×20 GB 30-76 2

1 Shaft, pin unit SZ1204.58E.021 1 14 Spacer (LH), lift shaft ME700.55.106 1
2 Double-acting hydraulic
cylinder assembly
SZ1204.55E.018 1 15 Oil cup M10×1 GB/T1152-1987 2
3 Spacer ME700.55.103 1 16 Bolt M10×1.25×16 GB/T5786-2000 1
4 Bolt M10×1.25X25 GB/T5786-2000 1 17 Washer 10 GB/T854-1988 1
5 Washer 10 GB/T93-1987 1 18 Pin, push rod ME700.55.204 1
7 Bushed bracket assembly ME700.55.012A 1 19 Inner lift arm ME700.55.105-1 1
8 Bolt M12×1.25×35-10.9 GB/T5786-2000 11 20 Positioning bolt 5117190/1.82.819 1
9 Washer 12 GB/T93-1987 11 21 Lift shaft 5117187/1.82.808 1
10 Bolt M14×1.5×30 GB/T5786-2000 2 22 Spacer (RH), lift shaft ME700.55.104 1
11 Washer 14 GB/T93-1987 2 23 Lift arm assembly (RH) 5123959/1.82.811A 1
12 Washer, lift shaft 5122898/1.82.817 2 24 Longitudinal sticker, lifter ME700.55.121-1 1
13 Lift arm assembly (LH) ME700.55.014 1 25 Jacket, lift shaft ME700.55.150 1

1 Support assembly, quick change coupler ME700.56.011-1 1 12 Bearer unit, rod (LWR) SZ804.56.020-1 1
2 Pin 3×25 GB/T 91-2000 1 13 Bolt M18×1.5×50-Zn.D GB/T 5785-2000 7
3 Washer 12 GB/T 97.1-2002 1 14 Bolt M10×55-Zn.D GB/T 5785-2000 2
4 Stop spring, diagonal-brace hook 5140549/1.82.067 1 15 Nut M10-Zn·D GB/T 889.2-86 2
5 Hook, link (UPR)(for transport purpose) SZ804.56.026 1 16 Retainer ring, rod (LWR) SZ804.56.113 2
6 Connecting pin assembly (FR), rod (UPR) 5120672/1.89.669 1 17 Dowel pin 15×22 5119529/1.21.071 2
7 Split pin 567406/1.89.945 3 18 Lift link assembly ME700.56.013 2
8
Link assembly (UPR)
ME700.56.012A 1 18.1 Clevis assembly (LWR),
lift link
SZ804.56.038 2
8.1 Screw assembly (FR), rod (UPR) ME700.56.018 1 18.2 Connecting pin (UPR),
lift link (LH & RH)
5111643/1.89.657 2
8.2 Adjustment screw tube assembly, link (UPR) ME700.56.019A 1 18.3 Clevis (UPR), lift link ME700.56.107 2
8.3 Screw assembly (RR), link (UPR) ME700.56.020 1 8.4 Locking nut ME700.56.114 2
8.4 Locking nut ME700.56.114 1 18.5 Adjustment screw tube
assembly, lift link
ME700.56.022 2
9 Pin (RR), upper link 822483/1.82.967 1
10 Lock pin assmbly 4967704/1.82.941A 1
11 Link assembly (LWR) ME700.56.014 2

1 Support, limit link SZ804.56.118 2 5.3 Sleeve assembly, limit rod ME700.56.023 2
2 Bolt M18×1.5×50-Zn.D GB/T 5786-2000 6 5.4 Pin (RR), limit link 885103861/1.89.956 2
3 Pin (FR), limit link 5125861/1.89.955 2 5.5 Section (RR), limit link ME700.56.112 2
4 Pin 6.3×40 GB/T 91-2000 4 5.6 Pin unit (RR), limit rod 5123274/1.89.958A 2
5 Limit link assembly ME700.56.015 2 6 Locking pin assembly SZ804.56.040 2
5.1 Section assembly (FR), limit
link
5103858/1.89.950A 2 7 Washer, pin (LWR), lift
link
562106/1.89.962 2
5.2 Pin (FR), limit link 5103862/1.89.959A 2

Distributor assembly SZ804.57.001-1 1 20 Adjusting knob, control valve,
lowering speed
5120798/1.82.476 1
1 Head, handle, lever, sensitivity
adjustment
5120762/1.82.433 1 21 Nut M10×1.25 6173-86 1
2 Positioning spring 5120761/1.82.431 1 22 Retainer ring GB 5117726/1.82.454 2
3 Steel ball 7.938 GB 308-84 1 23 Main control valve assembly 5117723/1.82.446A 1
4 Lever, sensitivity adjustment 5117736/1.82.438 1 24 Bolt M12×1.25×20 14360524/10356 1
5 Plug, sensitivity adjustment 5120760/1.82.437 1 25 Seal washer 12 JB 1002-77 1
6 Seal washer 22×28×1 JB 1002-77 1 26 Pin, sensitivity adjustment 5117735/1.82.436 1
7 Sector plate, adjusting handle 5120763/1.82.435 1 27 Cylindrical pin 3×16 BZ/JHX-SZ 1
8 O-ring26.5×1.8 GB/T3452.1-2000 1 28 O-ring8.75×1.8 GB/T3452.1-2000 1
9 Sensitivity control valve 5117731/1.82.471A 1 29 Plug M6 10269150/14545 3
10 Retainer ring 12 13420376/12248 1 30 Plug M10 10269350/14545 2
11 Spring washer 5122030/1.2.494 1 31 Distributor housing unit with
oil return valve
5117743/1.82.401A 1
12 Spring, pilot valve 5115469/1.82.497 1 32 Spring , return valve 5117729/1.82.448 1
13 O-ring30×2.65 GB/T3452.1-2000 1 33 Screw plug, return valve 5117734/1.82.455 1
14 Plug, valve, sensitivity adjustment 5122029/1.82.493 1 34 Descent speed control valve
adjusting screw
5117741/1.82.474 1
15 Spring, main control valve 4973361/1.82.444 1 35 O-ring6.9×1.8 GB/T3452.1-2000 1
16 Seat, main control valve 5117725/1.82.490 1 36 Retainer ring 5120771/1.82.479 1
17 O-ring25×1.8 GB/T3452.1-2000 1
18 Pilot valve 5117732/1.82.492 1
19 O-sealing ring 17×2.65 GB/T3452.1-2000 5
