Description

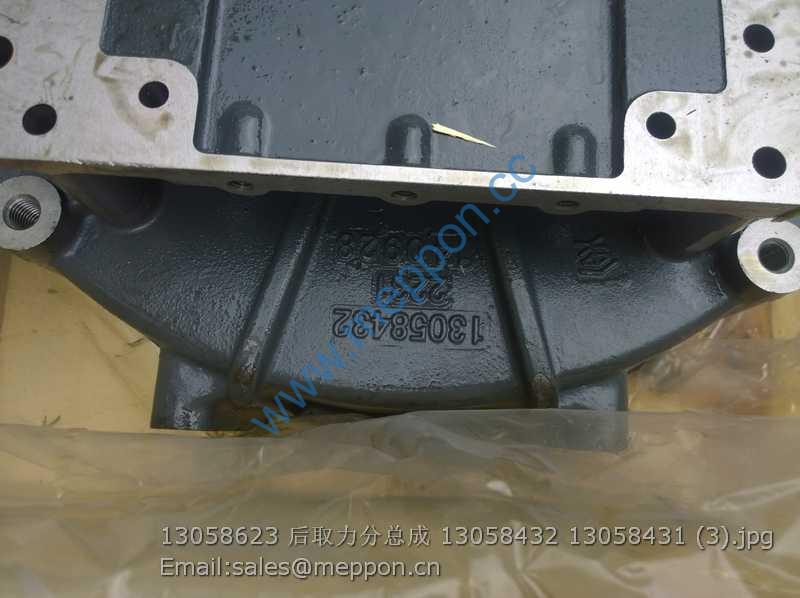

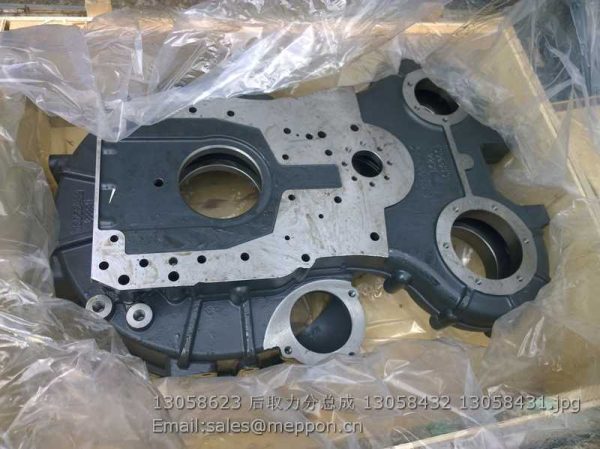

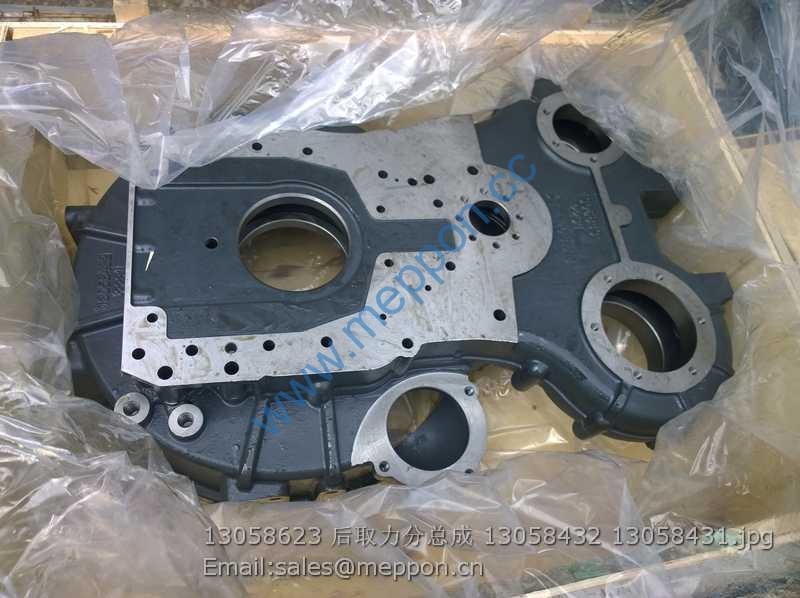

13058623 13058432 13058431 WEICHAI POWER TAKE-OFF

Y223-83C-050000 软管 HOSE 1
2 Y223-83C-010000 软管 HOSE 1
3 Y223-83C-060000 软管 HOSE 1
4 Y221-83A-010010 O 型圈 O-RING 2
5 07372-21035 螺栓 M10 x 35 BOLT 32
6 01643-51032 垫圈 10 WASHER 32
7 Y223-85A-000020 分离式法兰 FLANGE 4
8 Y221-83A-010040 O 型圈 O-RING 6
9 Y221-83A-010050 分离式法兰 FLANGE 8
10 Y223-85A-000010 分离式法兰 FLANGE 4
11 Y223-83C-020000 软管 HOSE 1

Y221-84A-010010 分离法兰 FLANGE 6
2 07372-21235 螺栓 M12 x 35 BOLT 12
3 Y221-84A-010020 O 型圈 O-RING 3
4 01643-51232 垫圈 12 WASHER 12
5 Y221-84C-010000 胶管 HOSE 1
6 Y221-84A-015001 胶管 HOSE 1
7 Y221-84A-012000 接头 JOINT 2
8 07400-010A5 胶管 HOSE 1

21Y-84-22000 回油组合阀 OIL SCAVENGE VALVE 1
1 01252-71235 螺钉 M12 x 35 BOLT 4
2 07Y-84-00002 分离式法兰 FLANGE 2
3 21Y-84A-22100 阀体 VALVE 1
4 21Y-84A-22004 阀芯 SPOOL 1
5 230-84-23009B 弹簧 SPRING 2
6 07000-03046 O 型圈 O-RING 2
7 21Y-84A-22002 螺塞 PLUG 1
8 21Y-84A-22003 阀芯 SPOOL 1
9 21Y-84A-22001 接头 JOINT 1
10 230-81-14001 螺塞 PLUG 1
11 07000-12011 O 型圈 O-RING 1
12 Y221-84C-000010 O 型圈 O-RING 1

01643-51032 垫圈 10 WASHER 32
2 07372-21030 螺栓 M10 x 30 BOLT 16
3 Y221-83A-010020 分离式法兰 FLANGE 8
4 Y221-84A-020020 支座 BRACKET 1
5 01010-52060 螺栓 M20 x 60 BOLT 2
6 01643-32060 垫圈 20 WASHER 2
7 Y221-84A-020030 块 BLOCK 2
8 01252-71025 螺钉 M10 x 25 SCREW 8
9 Y221-84A-020040 块 BLOCK 2
10 Y221-84C-030001 软管 HOSE 1
11 Y221-83A-010050 分离式法兰 FLANGE 8
12 Y221-83A-010040 O 型圈 O-RING 4
13 07372-21035 螺栓 M10 x 35 BOLT 16
14 Y221-84C-020001 软管 HOSE 1
15 Y221-84A-022000 软管 HOSE 2
16 Y221-83A-010010 O 型圈 O-RING 4

Y221-81A-010000 接头 JOINT 5
2 Y221-81A-030000 弯管接头 ELBOW 1
3 07401-00228 软管 HOSE 1
4 07401-00225 软管 HOSE 1
5 Y221-81A-020000 滤芯接头 JOINT 1
6 07401-002A5 软管 HOSE 1
7 07000-12011 O 型圈 O-RING 1
