Description

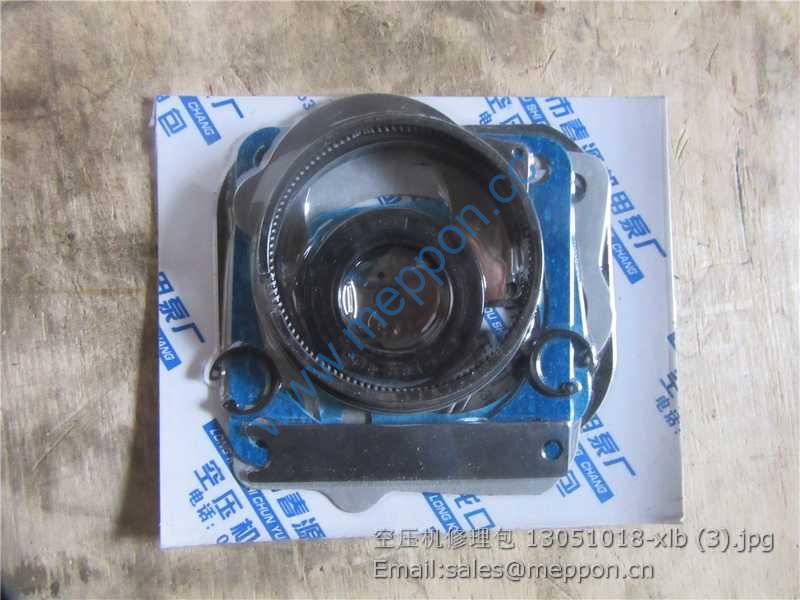

13051018-xlb AIR COMPRESSOR REPAIR KITS
曲轴总成 Crankshaft ass 61500020071 1
2 堵头 Jam VG2600020311 6
3 法兰 Flange VG1500020070 1
4 曲轴齿轮 Crankshaft gear VG14020038 1
5 平键 Key 90003960569 1
6 圆柱销 Dowel pin 90003901418 1
7 减振器 Vibration damper VG1560020010 1
8 多楔带 Ribbed belt VG1087060001 1
9 皮带轮 Belt pulley VG1560020022 1
10 中间法兰 Flange HG1500029067 1
11 六角头螺栓 Bolt 90003802558 8
12 飞轮 Flywheel AZ1500020220A 1
13 六角头螺栓 Bolt VG1500020046 9
14 飞轮齿圈 Ring gear VG2600020208 1
15 向心球轴承 Ball bearing 90003311416 1
16 孔用弹性挡圈 62×2 Circlip 90003934310 1
17 波形弹性垫圈 B10 Spring washer 90003932023 6
18 六角头螺栓 Bolt Q150B0830 6
19 双头螺柱 Stud 90003813571 2
连杆总成 Connecting rod 161500030009 6
2 连杆衬套 Connecting rod bush VG1500030077 6
3 连杆螺栓 Connecting rod bolt VG1500030023 12
4 连杆轴瓦上瓦 Connecting rod bearing VG1560037034 6
5 连杆轴瓦下瓦 Connecting rod bearing VG1560037033 6
6 活塞销 Piston pin VG1560030013 6
7 活塞销挡圈 Piston pin retaining ring VG1560030012 12
8 活塞 Piston VG1560030010 6
9 活塞环套件 Conical ring VG1540030005 6
气缸盖总成 Cylinder head AZ1095040123 6
2 喷油器衬套 Nozzle holder VG1096040001A 6
3 喷油器衬套密封圈 Nozzle holder gasket VG1406060010 6
4 气门导管 Valve guide VG1560040031 12
5 气门杆密封套 Scraper VG1560040032 12
6 碗形塞片 Core plug 90003989725 6
7 碗形塞片 Core plug 90003989277 6
8 碗形塞片 Core plug 90003989721
9 碗形塞片 Core plug 90003989294 6
10 进气门座 Ring (outlet) VG1560040057 6
11 排气门座 Ring (inlet) VG1560040037 6
12 气缸盖衬垫 Joint VG1500040065 6
13 夹紧块 Clip VG1200040027 2
14 夹紧块 Clip VG1099040013A 2
15 油孔堵塞 Bolt VG1540040011 6
16 气缸盖主螺栓 Bolt VG1500040023 24
17 气缸盖罩衬垫 Ring VG14040021 6
18 气缸盖罩 Rocker cover VG14040065 6
19 夹紧块 Clip VG1200040023A 5
20 带肩螺母 Nut VG1200040034 21
21 夹紧块 Clip VG1500040009 5
22 出水管 Pipe HG1500040030A 1
23 六角头螺栓 Bolt 90003800466 12
波形弹性垫圈 Spring washer 90003932023 24
25 六角头螺栓 Bolt Q150B0855 12
26 凸轮轴 Camshaft VG1500050096 1
27 凸轮轴止推片 Flange VG14050133 1
28 凸轮轴正时齿轮 Camshaft gear VG14050053 1
29 中间齿轮垫片 Intermediate gear Joint VG1540059032 1
30 中间齿轮轴 Intermediate gear-axle VG1540059031 1
31 衬套 Holder VG1560050054 1
32 中间齿轮总成 Intermediate gear ass VG1560050053 1
33 挡板 Clamp VG1560050045 1
34 密封圈 O-ring 90003120602 1
35 盖板 Cover VG1560050046A 1
36 排气门摇臂 Outlet valve rocker arm VG14050049 6
37 气门帽 Valve cap VG1500020105 12
38 气门推杆总成 Push rod assembly VG1092050020 12
39 气门挺柱 Push rod VG1500050032 12
40 气门摇臂座 Rocker arm pedestal VG1096050010 6
41 气门锁夹 Valve cone VG1500050025 24
42 气门弹簧上座 Spring plate VG1500050109 12
43 气门外弹簧 Valve spring VG1500050002 12
44 气门内弹簧 Valve spring VG1500050001 12
45 排气门 Outlet valve VG1560050027 6
46 进气门摇臂 Inlet valve rocker arm VG14050048 6
进气门 Inlet valve VG1560051001 6
48 六角头螺栓 Bolt 90003802399 2
49 圆柱销 Dowel pin 90003901409 1
50 六角头螺栓 Bolt 90003802443 4
51 六角头螺栓 Bolt VG1560050059 4
52 波形弹性垫圈 Spring washer 90003932023 3
53 内六角圆柱头螺钉 Socket cap screw 90003862419 1
六角头螺栓 Bolt 90003802399 2
54 气门间隙调整螺母 Nut VG2130050065 12
55 六角头螺栓 Bolt 90003802655 12
56 气门间隙调整螺钉 Bolt VG1500050017 6
57 进气门弹簧下座 Spring lower plate(intake) VG14050017 6
58 排气门弹簧下座 Spring lower plate(exhaust) VG1500040014 6
59 气门间隙调整螺钉 Bolt VG14050010 6
60 六角头螺塞 Bolt 90003962014 1
61 复合密封垫圈 Spring washer VG9003080003 1
