Description

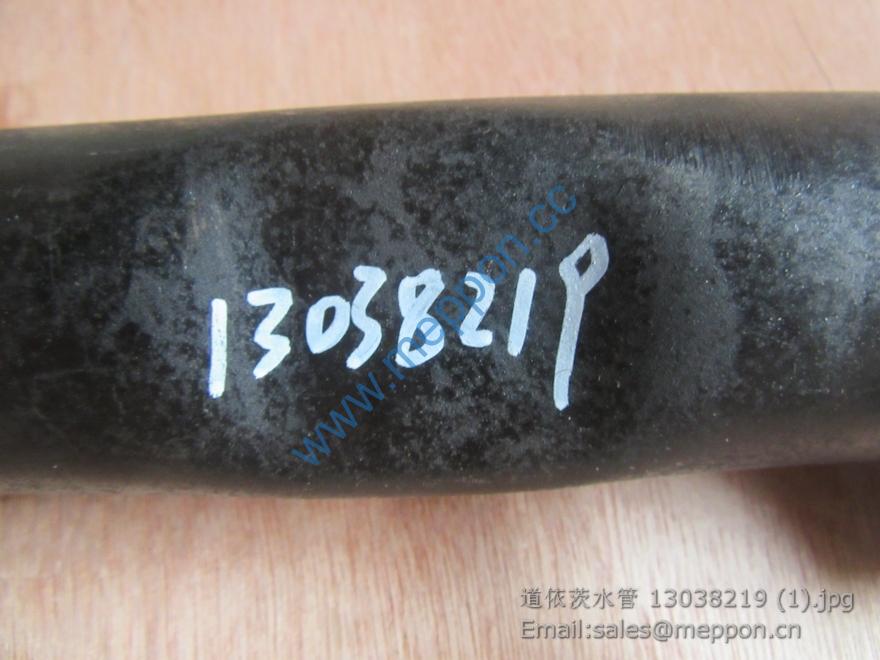

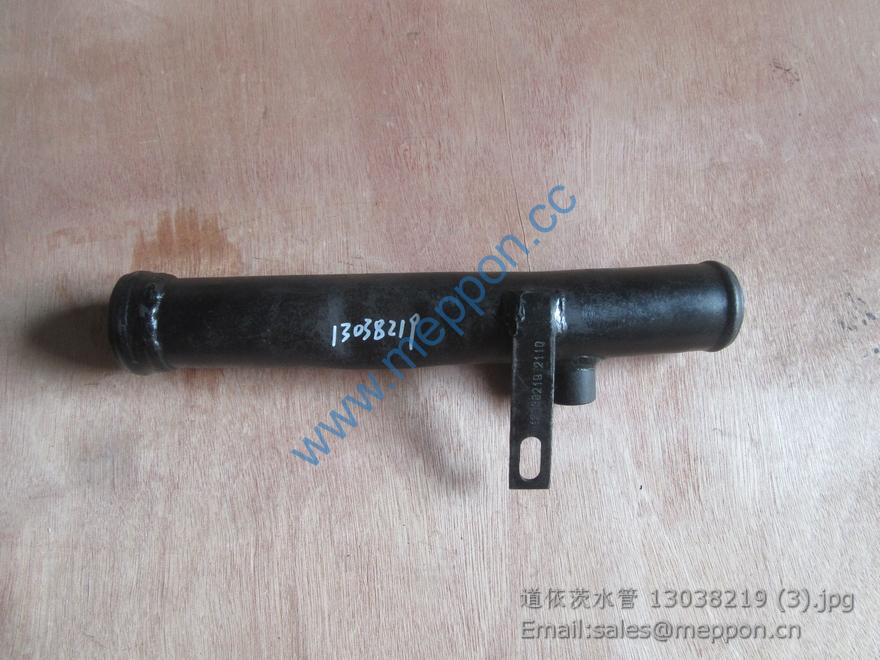

13038219 4110002989036 HOSE WEICHAI DEUTZ
620CH.13-7 1 轴 Shaft
620CH.13-8 1 调整垫片 Washer
WZC20.22-14 1 调整垫片Ⅴ Washer
620CH.13-9 1 轴环 Bushing
B-G057820-00222 1 螺栓M14×140-10.9ZnD Blot
B-J07940A-00001 1 油杯M10×1 Grease cup
WZ30.22-23 1 挡圈 Washer
WZ30.22-22 1 垫片 Washer
620CH.13-6 2 轴 Shaft
620CH.13.4 2 摇臂Ⅱa Rocker
620CH.13-11 1 轴 Shaft
620CH.13.3-1 2 动臂前轴套 Bushing
620CH.13-2 1 轴 Shaft
620CH.13.1-3 1 轴套 Bushing
620CH.13.3-2 3 动臂后轴套 Bushing
620CH.13-10 1 轴 Shaft
620CH.13.6 2 拉杆Ⅱ(左) Left link
B-G000620-00001 1 蝶形螺母M8ZnD Nut
B-G000960-00002 1 垫圈8ZnD Washer
B-G000930-00017 1 垫圈8 Washer
620CH.13.8 1 撑杆 Link
B-G061700-00010 1 螺母M14ZnD Nut
620CH.13.5 2 摇臂Ⅱb Rocker
620CH.13-3 1 调整垫片 Washer
WZC20.22-1 1 挡圈 Washer
WZC20.22-2 1 垫片 Washer
620CH.13.7 2 拉杆Ⅱ(右) Right link
620CH.13.3.1 3 动臂 Frame
620CH.13-13 1 调整垫片 Washer
620CH.13.6-1 3 轴套 Bushing
620CH.13.6-2 2 轴套 Bushing
620CH.13-4 2 轴 Shaft
620CH.13-5 1 调整垫片 Washer
WZ30.22-23 1 挡圈 Washer
WZ30.22-22 1 垫片 Washer
620CH.13-3 1 调整垫片 Washer
620CH.13-2 1 轴 Shaft
B-J07940A-00001 1 油杯M10×1 Grease cup
620CH.13-4 1 轴 Shaft
620CH.13.9 2 摇臂Ⅰ Rocker
620CH.13.2 1 拉杆Ⅰ link
B-G057820-00118 1 螺栓M20×230-10.9ZnD Bolt
B-Q020490-00011 1 垫圈20 Washer
620CH.13.1-5 1 隔套L=154 Spacer
B-G061700-00018 1 螺母M20ZnD Nut
620CH.13.1-2 1 轴套 Bushing
620CH.13.1.1 1 斗 Bucket
190C.13-27 1 螺母 Nut
620CH.13.1-4 1 铲齿 Medium tooth
620CH.13.1-1 1 垫片 Shim
220C.13-6 1 螺栓 Bolt
620CH.13.1-3 1 轴套 Bushing
620CH.14.1A 1 液压油箱 Oil Tank
B-G057830-00101 1 螺栓M20×60ZnD Bolt
B-G00097B-00010 1 垫圈20ZnD Washer
WZ30.14-5 1 垫圈 Washer
W-16-01269 1 软管总成1T/12×21513 Hose ass’y
-08-22/21593-08-22×1250
B-G00097B-00004 1 垫圈12 Washer
B-G057830-00025 1 螺栓M12×16ZnD Bolt
W-16-01944 1 软管总成1T/25×21513 Hose ass’y
-16-36/21593-16-36×930
W-15-00590 1 吸油过滤器TF-400×100F-1 Filter
B-G000930-00001 1 垫圈10 Washer
B-G000700-00005 1 螺钉M10×25ZnD Bolt
B-Q020710-00093 1 O形圈75×3.1 O-ring
620CH.14.2 1 过渡法兰 Flange
B-G057830-00010 1 螺栓M10×30ZnD Bolt
W-02-00485 1 预紧力弹簧卡箍65 Clamp
630.14-2 1 波纹管 Tube
B-G057830-00034 1 螺栓M12×30ZnD Bolt
B-G000930-00003 1 垫圈12 Washer
620CH.14.3A 1 泵进油管 Tube
B-Q020710-00085 1 O形圈65×3.1 O-ring
WZ30.4-4 1 线夹 Clip
