Description

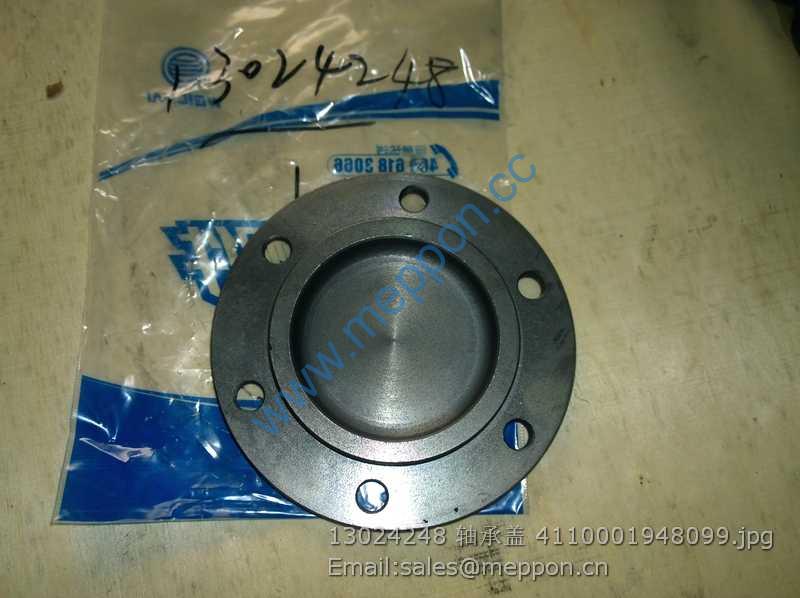

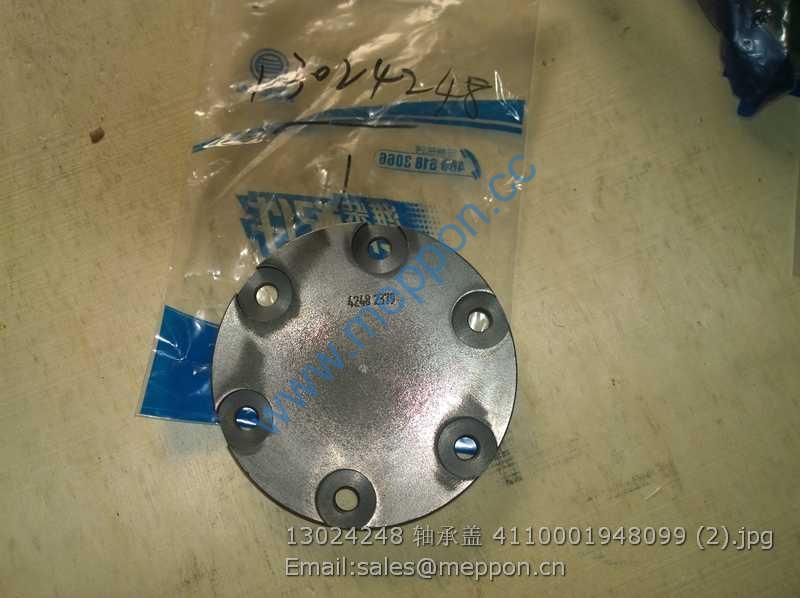

13024248 WEICHAI BEARING COVER 4110001948099

Y221-72A-210000 右侧门 DOOR(R.H) 1
2 Y246-72A-200030 海绵 SHEET 1
3 Y221-72A-100040 海绵 SHEET 1
4 01010-51230 螺栓 M12 x 30 BOLT 10
5 01643-31232 垫圈 12 WASHER 10
6 Y246-72A-260000 座 SEAT 1
7 Y221-72A-200020 吸音海绵 ACOUSTIC SHEET 1
8 Y221-72A-220000 支架 FRAME 1
9 Y246-72A-230000 限位块 LIMIT STOP 1
10 01580-11008 螺母 M10 UNT 1
11 Y221-72A-200030 板 PLATE 1
12 Y221-72A-200040 板 PLATE 1
13 Y246-72A-200050 支架 FRAME 1
14 Y221-72A-230000 支架 FRAME 1
15 01010-50612 螺栓 M6 x 12 BOLT 2
16 01643-30623 垫圈 6 WASNER 4
17 Y246-72A-280000 鸠尾榫 DOVE TAIL 1
18 Y246-72A-200010 鸠尾榫 DOVE TAIL 1
19 Y246-72A-270000 座 SEAT 1
20 01010-50616 螺栓 M6 x 16 BOLT 2
21 Y221-77A-011000 门锁 LOCK ASS’Y 1
22 Y246-72A-211000 铰链 HINGE 2
23 Y221-72A-300000 右门 DOOR(R.H) 1
24 01010-51220 螺栓 M12 x 20 BOLT 4
25 01643-51232 垫圈 12 WASHER 4
26 Y246-72A-000010 套 COLLAR 2

Y221-74A-010000 导风板 PLATE 1
2 Y221-74A-020000 封板Ⅰ PLATE Ⅰ 1
3 01010-51020 螺栓 M10 x 20 BOLT 46
4 01643-31032 垫圈 WASHER 50
5 Y221-74A-030000 支架 FRAME 1
6 Y221-74A-040000 支架 FRAME 1
7 01010-51225 螺栓 M12 x 25 BOLT 24
8 01643-31232 垫圈 12 WASHER 24
9 Y221-74A-050000 后板 PLATE 1
10 Y221-74A-060000 支架 FRAME 1
11 Y221-74A-070000 支架 FRAME 1
12 Y221-74A-080000 支架 FRAME 1
13 Y221-74A-090000 前支架 FRAME 1
14 Y221-74A-000010 板 PLATE 1
15 Y221-74A-0A0000 前板 PLATE 1
16 Y221-74A-0B0000 框架 FRAME 1
17 Y221-74A-0C0000 封板Ⅱ PLATE Ⅱ 1
18 Y221-74A-0D0000 板 PLATE 1
19 01010-51025 螺栓 M10 x 25 BOLT 4
20 Y221-74A-0E0000 板 PLATE 1
21 Y221-74A-0F0000 板 PLATE 1
22 Y221-74A-0G0000 支架 FRAME 1

Y221-76A-020000 盖 COVER 1
2 01010-51230 螺栓 M12 x 30 BOLT 20
3 01643-31232 垫圈 12 WASHER 22
4 01010-51020 螺栓 M10 x 20 BOLT 3
5 01643-31032 垫圈 WASHER 5
6 Y221-76A-010000 发动机上罩 COVER 1
7 Y221-76A-030000 气弹簧 SPRING 1
8 Y221-76A-040000 支撑杆 SUPPER BAR 1
9 Y221-76A-000010 支撑杆 SUPPER BAR 1
10 Y221-76A-000020 吸音海绵 SHEET 1
11 Y221-76A-000030 吸音海绵 SHEET 2
12 Y221-76A-050000 锁 LOCK ASS’Y 2
13 Y221-76A-060000 盖 COVER 1
14 Y221-76A-070000 密封条 SEAL STRIP 1
15 Y221-76A-000040 减震块 DAMPING BLOCK 2
16 01224-40616 螺钉 M6 x 16 BOLT 4
17 01010-50820 螺栓 M8 x 20 BOLT 8
18 01643-30823 垫圈 8 WASHER 14
19 04205-00835 销轴 8 x 35 PIN 2
20 04050-02012 开口销 PIN 2
21 01580-00806 螺母 M8 NUT 4
22 Y221-76A-080000 盖板 PLATE 1
23 Y221-76A-090000 盖板 PLATE 1
24 Y246-05A-000090 防滑纸 ANTISKID PAPER 4
25 04205-01235 销轴 PIN 2
26 04050-04025 开口销 PIN 2
27 Y221-76A-000050 帽 CAP 9
