Description

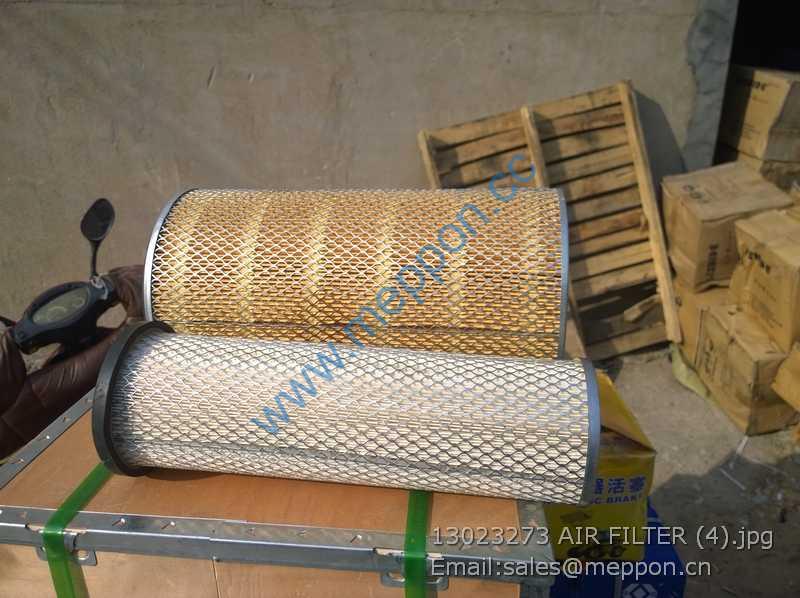

13023273 AIR FILTER 4110000991027 SP102069 D7327-1109101 4110000991027LC

S3519GH-010FT 前左制动室总成 Front left brake chamber assy
S3519GH-015FT 前右制动室总成 Front right brake chamber assy
Q151B1235 螺栓-紧固制动室用 Nut-tightening brake
Q40312 弹簧垫圈 Spring washer
35R-01031 前制动室左支架 Front brake chamber left bracket
35R-01032 前制动室右支架 Front brake chamber right bracket
Q701B70 弯颈滑脂嘴 Bent lubricating nipple
3519C-041 制动室连接叉 Brake chamber connector fork
Q350B12 螺母 Nut
Q510B1238 平头肖-制动室连接叉 Plain head pin – connecting fork of brake chamber
Q40112 垫圈 Washer
Q500B0425 开口销 Split pin
3510R-046 制动凸轮轴垫圈 Ring-rear brake camshaft
Q500B0645 开口销 Split pin
QZ92B-00/QY92B-00 前左/自动调整臂总成 Front automatic adjusting arm assy(LH)
ZJ01-00 控制支架 Control bracket
3501C-044 制动凸轮轴调整垫片 Brake camshaft adjusting washer
3501N-076 堵塞 Plug
3501N-023 上防尘罩 Upper dust-proof cover
3501N-021 下防尘罩总成 Lower dust-proof cover assy
Q150B1016-5 螺栓-紧固防尘罩用 bolt,dust-proof
Q40310 弹簧垫圈 Spring washer
Q701B45 弯颈滑脂嘴 Bent lubricating nipple
3501R-026/126 前左/右制动底板 Front brake bottom plate (LH/RH)
3501N-134 螺钉-紧固制动蹄轴用 Screw for tightening brake shoe shaft
Q50512200 钢丝锁线 Locking wire
3501N-132 蹄片轴 Shoe shaft
3501R-085 前上制动蹄带磨擦片滚轮固定销总成 Front upper brake shoe assy with friction lining and roller fixing pin
3501R-185 前下制动蹄带磨擦片滚轮固定销总成 Front lower brake shoe assy with friction lining and roller fixing pin
3501N-106 铆钉 Rivet
3501N-105 前制动摩擦片 Front brake friction lining
3501R-101 前制动蹄 Front brake shoe
3501N-093 前制动蹄衬套 Front brake shoe bush
3501N-064 回动弹簧 Retracting spring
3501N-108 回动弹簧固定销 Retracting spring fixing pin
3501N-118 卡环 Circlip
2S35J-01113 滚轮总成 Roller wheel assy
2S35J-01102 滚轮轴 Roller shaft
3501R-041 前左制动凸轮 Front left brake cam
3501R-042 前右制动凸轮 Front right brake cam
3501N-034 制动底板油封总成 Brake bottom plate oil seal assy
3501N-039 制动底板衬套 Brake bottom bush

QDT2401010-FT Rear axle housing assy
Q151B1440TF2 Fixing bolt of main reductor housing
QDT2401068 Air plug assy
QDT2401063 Fixing bolt of main reductor housing
Q341B14 Nut
Q40314 Heavy spring washer
QDT2402010(I=5.571) Rear axle main reducer assy
Q62104 Magnetic plug assy
QDT2401039A Oil filler plug washer
QDT2401163-LB Oil filler plug
QT435D5-3502100 Rear brake assy(LH)
QDT3104075D Rear nave oil seal seat ring
3104045-4EB1 Rear nave inside oil seal
30621 Rear nave inner bearing
QDT2401090 Half-axle oil seal
CQ34120 Inner nut of rear wheel
QDT3502571E Rear brake drum
QDT3104015A02 Rear nave
ZL3104051B116-F-1 Rear wheel bolt
3103070-4E Nut of rear wheel
32217 Rear nave outside bearing
QDT2401076A01 Lock nut,the side of rear wheel
QDT2401081 Rear wheel side axle neck lock plate
CQ1500816 Rear wheel side Stop screw
Q40308 Spring washer
QDT2403064 Gasket-half shaft
QDT2403065-FT Half-axle
Q40316 Spring washer
QDT2403063 Half-shaft bolt

QDT2402119-A1 Fixing bolt ,bearing cover of inter wheel differential housing
Q150B1020-S Fixing bolt ,inter wheel differential housing
Q40310 Spring washer
QDT2402383 Inter-wheel differential stopper shim,rear axle
QDT2402117 Bearing cover of inter wheel differential housing,rear axle
QDT2402381 Adjusting nut of bearing,inter wheel differential of rear axle
QDT2402310 Inter-wheel differential assy,rear axle
QDT2402110 Main reductor housing assy ,rear axle
QDT2402083 Adjusting washer,bearing seat of main reductor
Q43135 Spring circlip for shaft
NUP308X Rear bearing of driving bevel gear bearing
QT435D2-2402025/2402026(I=5.571) Driving/driven bevel gear(I=5.571),rear axle
31314 Front bearing of driving bevel gear bearing
QDT2402049 Bearing seat of main reductor spacer
QDT2402036 Bearing seat of main reductor
Q40514 Spring washer
Q1801440 Fixing bolt,bearing seat of main reductor
QDT2402041-1 Adjusting washer,front bearing of driving bevel gear bearing
31311 Front bearing of driving bevel gear bearing
QDT2402058 Rear axle drive cone gear oil seal
QDT2402066 Flange assy,driving bevel gear
QDT2402069 Flange”O”sealig ring ,rear axle
QDT2402071 Flange adjusting washer ,rear axle
QDT2402072A01 Flange nut,rear axle

32218 Bearing of inter wheel differential ,rear axle
QDT2402356 Rear axle driven cone gear tightening bolt
QDT2402315 Inter wheel differential housing assy,rear axle
QT435D2-2402025/2402026(I=5.571) Driving/driven bevel gear(I=5.571),rear axle
QDT2402336 Gear gasket of half axle which is on inter wheel differential
QT435D2-2403001 Gear of half axle which is on inter wheel differential
QDT2402346 Washer of planetary gear,inter-wheel differential of rear axle
QT435D2-2403003 Planetary gear of inter wheel differential
QDT2402331 Crosspin,inter-wheel differential of rear axle
Q1811680 Bolt, tightening differential casing
