Description

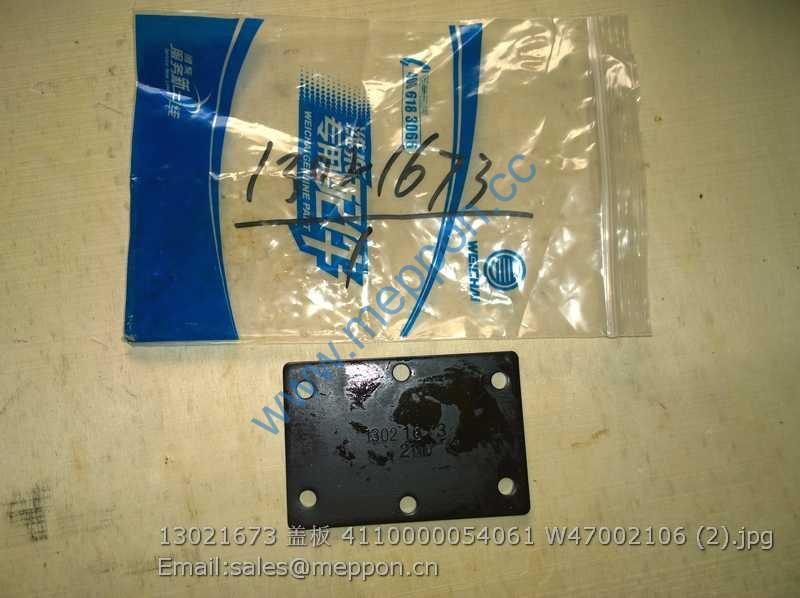

13021673 PLATE 4110000054061 W47002106

Y221-86A-030000 铲斗油缸 BUCKET CYLINDER 1
1 02213.0025Y.100A 活塞杆 ROT PISTON 1
2 Q/HL 102101 -2010 端盖Φ176/Φ115 x Φ80 HEAD 1
3 02213.0025Y.200 缸体 CYLINDER 1
4 02213.0025Y.300 油管 TUBE 1
5 Φ70 Xφ85 x 82 轴套 BUSHING 2
6 ME8 Φ70 xΦ85 x 5 防尘圈 RING,DUST 4
7 GB1153 —89 90·油杯 M10 x 1 OIL CUP 1
8 02213.0025Y.400 卡箍 CLAMP 1
9 GB5780-2000 螺栓 M10 x 40 BOLT 2
10 GB93-87 垫圈 10 WASHER 3
11 Q/HL 102118 —2010 压板 YB—05 PLATE 1
12 GB5780-88 螺栓 M10 x 50 BOLT 1
13 GB6170 —2000 螺母 M10 NUT 2
14 2-217 O 型圈Φ29.74 x 3.53 O-RING 1
15 GB70.1-85 螺钉 M10 x 35 BOLT 4
16 GB80 — 85 螺钉 M12 x 12 BOLT 1
17 GB308—89 钢球Φ8 STEEL BALL 1
18 GB1152 —89 油杯 M10 x 1 OIL CUP 1
19 Q/HL 102104 —2010 螺母 M64 x 3 NUT 1
20 Φ115 xΦ107x 8 纳污环 RING 2
21 Φ115/Φ110 x 9.7 导向环 SLEEVE GUIDE 2
22 Q/HL102103 — 2010 活塞Φ115/Φ65.5 x 68 PISTON 1
23 GS0626V5
密封圈 SPGW
Φ115/Φ100 x 12
SEAL RING 1
24 Q/HL 102122 —2010 挡圈Φ85/Φ65.5 x 0.5 COLLAR 1
25 Q/HL102102 — 2010 缓冲套 d80 CUSHION COVER 1
26 Φ115/Φ109.5 x 1.5 挡圈 COLLAR 1
27 2 — 244 O 型圈Φ107.54 x 3.53 O-RING 1
28 Q/HL102123 — 2010 挡圈 d80/Φ91 x 3.5 COLLAR 1
29 DUB 8030 滑动轴套 BUSHING 1
30 FQ0246F6
缓冲圈 HBY 80
Φ80/Φ95.5 x 6
CUSHION COVER 1
31 Φ95/Φ80 x 3 挡圈 COLLAR 1
32 FU0942F0
密封圈 IDI 80
Φ80/Φ95 x 10
SEAL RING 1

FD3720E0

防尘圈 DKBI 80
Φ80/Φ94 x 8/11
RING,DUST 1
34 Q/HL102106 — 2010 挡圈 d80/Φ99 x 2 COLLAR 1
35 GB70.1-85 螺钉 M16 x 75 BOLT 12

Y221-65A-000010 接头 ELBOW 2
2 Y221-65A-040000 黄油管 PLUG 1
3 Y221-65A-050000 黄油管 PLUG 1
4 01010-51016 螺栓 BOLT 6
5 01643-31032 垫圈 WASHER 6
6 04435-50810 夹 CLIP 1
7 Y246-65A-000030 接头 JOINT 5
8 07020-00000 油杯 OIL CUP 5
9 Y221-65A-010000 黄油管 PLUG 1
10 Y221-65A-020000 黄油管 PLUG 1
11 Y221-65A-030000 黄油管 PLUG 1
12 04435-51410 夹 CLIP 2
13 04434-50810 夹 CLIP 3
14 Y221-65A-060000 黄油管 TUBE 2
15 Y246-65A-000010 接头 JOINT 3
16 Y221-65A-070000 黄油管 TUBE 1

Y221-21C-010000 回转马达 SLEWING MOTOR 1
2 07000-15310 O 形圈 O-RING 1
3 01010-52060 螺栓 M20 x 60 BOLT 12
4 01643-32060 垫圈 20 WASHER 12
5 07020-00000 油杯 G1/8 OIL CUP 1
6 07023-00612 帽 OIL CUP 1
7 Y221-21A-020000 软管 HOSE 1
8 Y221-21A-030000 黄油管 TUBE 1
9 Y246-84B-100000 接头 NIPPLE 1
10 Y221-21A-000010 块 BLOCK 1
11 01010-50840 螺栓 M8 x 40 BOLT 1
12 01643-30823 垫圈 8 WASHER 1
13 Y246-21A-000040 堵 PLUG 1
14 Y221-21A-000020 接头 NIPPLE 1
15 Y246-21A-000020 接头 NIPPLE 1
16 Y221-21A-000030 接头 NIPPLE 1
