Description

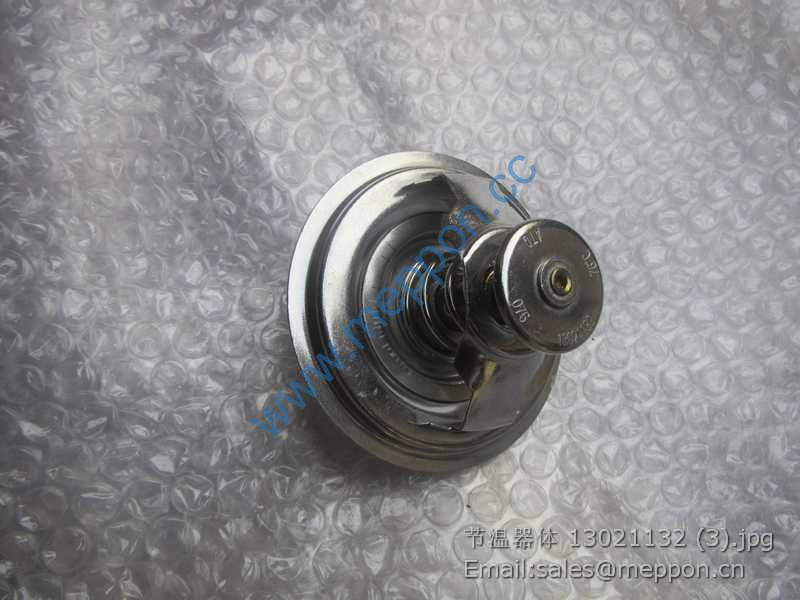

13021132 WEICHAI THERMOSTAT 4110000846038 SP107076 W010250110 13024466
21 VG209190017 2 2 拉紧销 Clamping pin
22 VG1700550013 2 2 张紧销 Clamping pin
23 90003862462 2 2 M8×60-8.8-ZN DIN912 内六角圆柱头螺钉 Socket cap screw
24 VG9100570015 1 1 悬臂总成 Suspension bracket
1 VG2600111290 1 1 前排气歧管 Exhaust manifold (front)
2 VG2600111280 1 1 后排气歧管 Exhaust manifold (back)
3 VG2600111144 1 1 前隔热罩 Heat insulation cover (front)
4 VG2600111145 1 1 后隔热罩 Heat insulation cover (back)
5 VG2600110683 10 10 隔热罩螺栓 Heat insulation cover bolt
VG2600110961 10 10 隔热罩螺栓 Heat insulation cover bolt
6 VG260110162 4 4 排气管密封环 Laminated sealing ring
7 VG1560110111A 6 6 排气管垫片 Gasket
8 VG1560110104 11 11 排气管紧固螺栓 Bolt
9 VG1560110105 1 1 排气管紧固螺栓 Bolt
10 VG609070067 1 1 止推垫圈 Washer
11 VG2600110871 1 1 支架 Extension bar
12 VG2600111428 4 4 双头螺柱 Stud
13 90003930282 4 4 自锁螺母 Self-locking nut
14 HG1500118895 1 1 废气涡轮增压器 Turbocharger
15 VG1560110210 1 1 增压器密封垫 Gasket
16 HG1500079011 1 1 增压器进油管 Oil supply pipe
17 VG1560110152 1 1 进油管法兰 Two bolt flange
18 VG609E110050 1 1 进油管垫片 Gasket
19 90003559513 2 2 联管螺母 Pipe connection nu
20 90003559563 2 2 卡套 Bush
21 90003862428 2 2 DIN912-M8×25-8.8-Zn.D 内六角圆柱头螺钉 Socket cap screw
22 VG188250083 2 2 自锁垫圈 Self-locking washer
23 HG1560079361 1 1 回油管总成 Oil return pipe assembly
24 VG2600110048 1 1 回油管法兰垫片 Gasket
25 VG1460070014 2 2 回油管螺栓 Bolt
26 90003989340 2 2 22/29-ZN N05074 软管卡箍 Hose clamp
27 VG2600070071 1 1 增压器回油用软管 Hose
28 90003936109 14 14 Q40212 大垫圈 Flat washer
29 VG1560110187 6 6 双头螺柱 Stud
30 90003888470 6 6 自锁螺母 Self-locking nut
1 HG1560139099 1 1 水冷空压机 Water-cooled air compressor
2 VG2600130122 1 1 传动轴 Drive shaft
3 90003320154 1 1 NJ2207E/7GP-C3 按 N05412 滚柱轴承 Roller bearing
4 61500080158J 2 2 径向止推滚柱轴承 Ball bearing
5 VG2600130047 1 1 衬套 Bush
6 VG2600130073 1 1 挡油盘 Bearing shield
7 VG2600130046 1 1 夹紧螺母 Compression nut
8 VG2600130123 1 1 压紧块 Pressure ring
9 VG1500080165 1 1 盖 Cover
10 90003802432 4 4 Q150B0830 六角头螺栓 Hex head bolt
11 VG1560130012 1 1 空压机齿轮 Air compressor gear
12 VG2600130001 1 1 六角螺母 Hexagon nut
13 VG609070161 1 1 支撑环 Flat washer
14 VG0003070092 1 1 轴油封 Gasket
15 VG1500130097 1 1 油封座 Oil seal carrier
16 90003802415 4 4 Q150B0818 六角头螺栓 Hex head bolt
17 VG192320002 1 1 密封圈 Sealing ring
18 VG1560130064 1 1 喷油泵齿轮 Injection pump gear
19 VG409020045 1 1 垫片 Washer
20 VG2600130045 1 1 六角螺母 Hexagon nut
