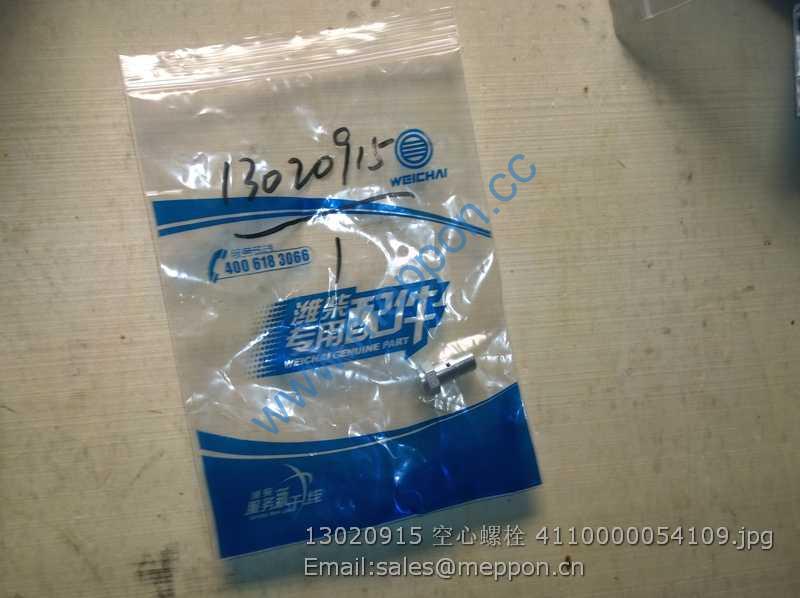

13020915 BOLT WEICHAI 4110000054109

Y221-83A-010020 法兰 FLANGE 2
2 Y221-83A-010010 O 形圈 O-RING 4
3 Y221-83A-010000 软管 HOSE 2
4 Y221-86A-030000 铲斗油缸 BUCKET CYLINDER 1
5 07372-21035 螺栓 BOLT 16
6 01643-51032 垫圈 WASHER 16

Y221-86A-010000 动臂油缸（左） BOOM CYLINDER(L.H.) 1
2 Y221-83A-010010 O 形圈 O-RING 4
3 Y221-83A-010020 法兰 FLANGE 8
4 07372-21035 螺栓 BOLT 16
5 Y221-83A-013000 软管 HOSE 4
6 01643-51032 垫圈 WASHER 16
7 Y221-86A-020000 动臂油缸（右） BOOM CYLINDER(R.H.) 1

Y221-86A-010000 动臂油缸（左）
BOOM
CYLINDER(L.H.)
1
1 02213.0026Y.100 活塞杆 ROT PISTON 1
2 Q/HL 01 -2009 端盖Φ181/Φ120 x Φ85 HEAD 1
3 02213.0026Y.200 缸体 CYLINDER 1
4 Φ70 xΦ85 x 82 轴套 BUSHING 1
5 ME8 Φ70 xΦ85 x 5 防尘圈 RING , DUST 2
6 2-217 O 型圈Φ29.74 x 3.53 O-RING 2
7 02213.0026Y.400(L) 油管 B TUBE B 1
8 GB70.1-85 螺钉 M10 x 35 BOLT 8
9 Q/HL 18 —2006 压板 YB—01 PLATE 2
10 02213.0026Y.500 卡箍 CLAMP 1
11 GB6170-88 螺母 M10 NUT 2
12 GB5780-88 螺栓 M10 x 40 BOLT 2
13 GB93-87 垫圈 10 WASHER 2
14 GB5780-88 螺栓 M14 x 85 BOLT 1
15 GB93-87 垫圈 14 WASHER 1
16 GB6170-88 螺母 M14 NUT 1
17 02213.0026Y.300(L) 油管 A TUBE A 1
18 GB308-89 钢球Φ8 STEEL BALL 1
19 GB/T80 — 85 凹端螺钉 M12 x 12 BOLT 1
20 Q/HL22 — 2009 垫片Φ85/Φ63.5 x 0.5 WASHER 1
21 Q/HL04 — 2006 螺母 M62 x 3 NUT 1
22 Φ120 xΦ112 x 8 纳污环 RING 2
23 Q/HL03 — 2009 活塞Φ120/Φ63.5 x 68 PISTON 1
24 SPGW 120 密封圈Φ120/Φ105 x 12 SEAL RING 1
25 Φ120/Φ115 x 9.7 导向环 SLEEVE GUIDE 2
26 Q/HL06 — 2006 挡圈 d85/Φ104 x 2 COLLAR 1
27 DKBI 85 防尘圈Φ85/Φ99 x 8/11 RING,DUST 1
28 IDI 85 密封圈Φ85/Φ100 x 10 SEAL RING 1
29 Φ85/Φ100 x3 开口挡圈 COLLAR 1
30 HBY 85 缓冲圈Φ85/Φ100 .5 x 6 CUSHION COVER 1
31 MB 8530 滑动轴套 BUSHING 1
32 Q/HL23 — 2009 挡圈 d85/Φ96 x 3.5 COLLAR 1

Φ120/Φ114.5 x 1.5 挡圈 COLLAR 1
34 2-245 O 型圈 O-RING 1
35 Q/HL02 — 2006 缓冲套 d85 CUSHION COVER 1
36 Q/HL07 — 2006 挡圈 d85/Φ81 COLLAR 1
37 GB70.1-85 螺钉 M16 x75 BOLT 12
38 Φ95 xΦ80 x 35 B 型轴套 BUSHING 2
39 ME8 Φ80 xΦ95 x 5 防尘圈 RING,DUST 2
40 GB1152 —89 油杯 M10 x 1 OIL CUP 3

Y221-86A-020000 动臂油缸（右）
BOOM
CYLINDER(R.H.)
1
1 02213.0026Y.100 活塞杆 ROT PISTON 1
2 Q/HL 01 -2009 端盖Φ181/Φ120 x Φ85 HEAD 1
3 02213.0026Y.200 缸体 CYLINDER 1
4 Φ70 xΦ85 x 82 轴套 BUSHING 1
5 ME8 Φ70 xΦ85 x 5 防尘圈 RING,DUST 2
6 2-217 O 型圈Φ29.74 x 3.53 O-RING 2
7 02213.0026Y.400(R) 油管 B TUBE B 1
8 GB70.1-85 螺钉 M10 x 35 BOLT 8
9 Q/HL 18 —2006 压板 YB—01 PLATE 2
10 02213.0026Y.500 卡箍 CLAMP 1
11 GB6170-88 螺母 M10 NUT 2
12 GB5780-88 螺栓 M10 x 40 BOLT 2
13 GB93-87 垫圈 10 WASHER 2
14 GB5780-88 螺栓 M14 x 85 BOLT 1
15 GB93-87 垫圈 14 WASHER 1
16 GB6170-88 螺母 M14 NUT 1
17 02213.0026Y.300(R) 油管 A TUBE A 1
18 GB308-89 钢球Φ8 STEEL BALL 1
19 GB/T80 — 85 凹端螺钉 M12 x 12 BOLT 1
20 Q/HL22 — 2009 垫片Φ85/Φ63.5 x 0.5 WASHER 1
21 Q/HL04 — 2006 螺母 M62 x 3 NUT 1
22 Φ120 xΦ112 x 8 纳污环 RING 2
23 Q/HL03 — 2009 活塞Φ120/Φ63.5 x 68 PISTON 1
24 SPGW 120 密封圈Φ120/Φ105 x 12 SEAL RING 1
25 Φ120/Φ115 x 9.7 导向环 SLEEVE GUIDE 2
26 Q/HL06 — 2006 挡圈 d85/Φ104 x 2 COLLAR 1
27 DKBI 85 防尘圈Φ85/Φ99 x 8/11 RING,DUST 1
28 IDI 85 密封圈Φ85/Φ100 x 10 SEAL RING 1
29 Φ85/Φ100 x3 开口挡圈 COLLAR 1
30 HBY 85 缓冲圈Φ85/Φ100 .5 x 6 CUSHION COVER 1
31 MB 8530 滑动轴套 BUSHING 1
32 Q/HL23 — 2009 挡圈 d85/Φ96 x 3.5 COLLAR 1

Φ120/Φ114.5 x 1.5 挡圈 COLLAR 1
34 2-245 O 型圈 O-RING 1
35 Q/HL02 — 2006 缓冲套 d85 CUSHION COVER 1
36 Q/HL07 — 2006 挡圈 d85/Φ81 COLLAR 1
37 GB70.1-85 螺钉 M16 x75 BOLT 12
38 Φ95 xΦ80 x 35 B 型轴套 BUSHING 2
39 ME8 Φ80 xΦ95 x 5 防尘圈 RING,DUST 2
40 GB1152 —89 油杯 M10 x 1 OIL CUP 3

Y221-86A-040000 斗杆油缸 CYLINDER LEVER 1
1 02213.0027Y.100 活塞杆 ROT PISTON 1
2 Q/HL 01 -2009 端盖Φ208/Φ135 x Φ95 HEAD 1
3 02213.0027Y.200 缸体 CYLINDER 1
4 02213.0027Y.400 卡箍 CLAMP 1
5 SZY21—DG—05 油路块 OIL SEAT 1
6 2—219 O 型圈 O-RING 1
7 Φ80 xΦ95 x 35 轴套 BUSHING 2
8 ME8 Φ80 xΦ95 x 5 防尘圈 RING,DUST 2
9 GB70.1-85 螺钉 M10 x 75 BOLT 4
10 Q/HL 18 —2006 压板 YB—05 PLATE 1
11 GB5780-88 螺栓 M10 x 40 BOLT 2
12 GB93-87 垫圈 10 WASHER 3
13 02213.0027Y.300 油管 TUBE 1
14 GB5780-88 螺栓 M10 x 50 BOLT 1
15 GB70.1-85 螺钉 M10 x 35 BOLT 4
16 2-217 O 型圈 O-RING 1
17 Q/HL05.3 —2009 挡环Φ54 x 5.6 COLLAR 1
18 Q/HL07 — 2009 缓冲套Φ47 CUSHION COVER 1
19 Q/HL05.2 —2009 缓冲套Φ60 x 47 CUSHION COVER 1
20 Q/HL05.1 —2009 卡圈Φ70 x 6.1 CLAMP 1
21 GB/T80 — 85 螺钉 M14 x 14 BOLT 1
22 GB308—89 钢球Φ8 STEEL BALL 1
23 Φ135 xΦ127x 8 纳污环 RING 2
24 Φ135/Φ130 x 15 导向环 SLEEVE GUIDE 2
25 Q/HL03 — 2009 活塞 D135/D95 M75 x 3 PISTON 1
26 SPGW 135 密封圈Φ135/Φ112 x 15.5 SEAL RING 1
27 Q/HL02 — 2009 缓冲套 d95 CUSHION COVER 1
28 Q/HL07 —2006 缓冲泄压环 D95/Φ91 COLLAR 1
29 2-352 O 型圈 O-RING 1
30 Φ135/Φ126.3x 2 挡圈 COLLAR 1
31 Q/HL23 — 2009 挡圈 d95/Φ106 x 3.5 COLLAR 1
32 MB 9540 滑动轴套 BUSHING 1

HBY 95 缓冲圈Φ95/Φ110.5 x 6 CUSHION COVER 1
34 GB70.1-85 螺钉 M18 x 90 BOLT 12
35 Φ115/Φ95 x 3 挡圈 COLLAR 1
36 IDI 95 密封圈Φ95/Φ115 x 12 SEAL RING 1
37 DKBI 95 防尘圈Φ109/Φ95 x 8/11 RING,DUST 1
38 Q/HL06 — 2006 挡圈 d95/Φ114 x 2 COLLAR 1
39 Φ80 xΦ95 x 40 B 型轴套 BUSHING 2
40 GB1153 —89 90·油杯 M10 x 1 OIL CUP 2
41 GB6170 —2000 螺母 M10 NUT 2
