Description

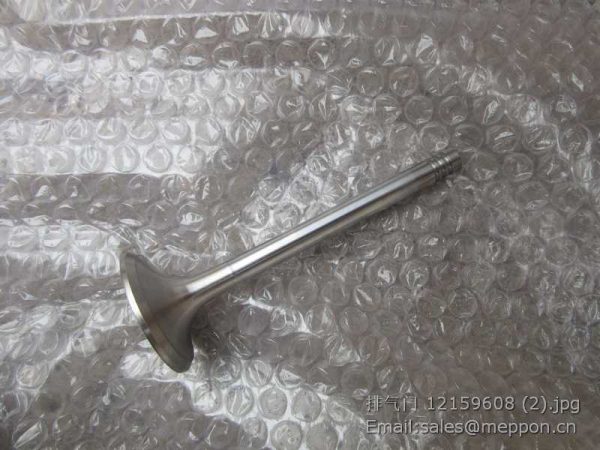

12159608 weichai valve exhaust

1 161500020071 1 1 1 1 1 曲轴总成 Crankshaft assembly
1-1 161500020012 1 1 1 1 1 曲轴 Crankshaft
1-2 VG14020038 1 1 1 1 1 曲轴齿轮 Crankshaft gear
1-3 VG1500020070 1 1 1 1 1 法兰 Flange
1-4 VG1560029001* 6 6 6 6 6 堵塞(选用) Jam
1-5 90003901418 1 1 1 1 1 8m6×18 DIN7 圆柱销 Straight pin
1-6 90003960569 1 1 1 1 1 Q5510828 普通平键 Straight key
2 VG2600020208 1 1 1 1 飞轮齿圈 Starter ring gear
HG1500020009 1 飞轮齿圈 Starter ring gear
3 HG1500020050 1 1 1 1 飞轮 Flywheel
HG1500020020 1 飞轮 Flywheel
4 HG1500020012 1 1 1 1 飞轮镶套 Flywheel studded cover
5 HG1500020016 1 1 1 1 飞轮接盘 Connecting ring, flying wheel
HG1500020044 1 飞轮接盘 Connecting ring, flying wheel
6 Q150B1065TF2 12 12 12 12 六角头螺栓 Hex head bolt
Q150B1030TF2 12 六角头螺栓 Hex head bolt
7 VG1500020046 9 9 9 9 9 六角头螺栓 Hex head bolt
8 90003802523 6 6 6 6 六角头螺栓 Hex head bolt
9 90003932024 6 6 6 6 波形弹性垫圈
10 VG1560020010 1 1 1 1 1 减振器 Vibration damper

1 161500030009 连杆总成 Connecting rod assembly
2 VG1500030077 连杆衬套 Connecting rod bush
3 VG1500030023 连杆螺栓 Connecting rod bolt
4 HG2600030015 活塞 Piston
5 VG1560030050 活塞环组 Piston rings
6 VG1560037033 连杆轴瓦（下瓦） Sleeve bearing
7 VG1560037034 连杆轴瓦（上瓦） Sleeve bearing
8 VG1560030013 活塞销 Piston pin
9 VG1560030012 活塞销挡圈 Retaining ring

1 HZ2600040167 6 6 6 6 6 气缸盖总成 Cylinder head assembly
1-1 HZ2600040168 6 6 6 6 6 气缸盖 Cylinder head
1-2 VG1560040037 6 6 6 6 6 排气门座 Exhaust valve seat
1-3 VG1560040057 6 6 6 6 6 进气门座 Intake valve seat
1-4 VG1560040049 6 6 6 6 6 喷油器衬套 Nozzle holder insert
1-5 VG1560040031 12 12 12 12 12 气门导管 Valve guide
1-6 VG406060010 6 6 6 6 6 环状密封圈 Sealing ring
1-7 90003989294 24 24 24 24 24 30/8N05564 碗形塞 Core hole plug
1-8 90003989721 6 6 6 6 6 22/8DIN05564 碗形塞 Core hole plug
1-9 90003989277 6 6 6 6 6 12/8N05564 碗形塞 Core hole plug
1-10 90003989725 6 6 6 6 6 25/8DIN05564 碗形塞 Core hole plug
2 VG1500040014 6 6 6 6 6 排气门弹簧下座 Spring base
3 VG1560040032 12 12 12 12 12 气门阀杆密封套 Valve guide bush
4 VG1500040049 6 6 6 6 6 气缸盖衬垫 Cylinder head gasket
5 VG1500040023 24 24 24 24 24 气缸盖主螺栓 Cylinder head bolt
6 VG1500040009 5 5 5 5 5 夹紧块 Clamping yoke
7 VG1500040012 2 2 2 2 2 吊环夹紧块 Clamping yoke
8 VG14010388 2 2 2 2 2 吊环螺钉 Eye screw
9 HG1500040011 1 1 1 1 1 吊环螺钉接杆 Clamping yoke
10 VG1200040027 2 2 2 2 2 夹紧块 Cylinder head clamp
