Description

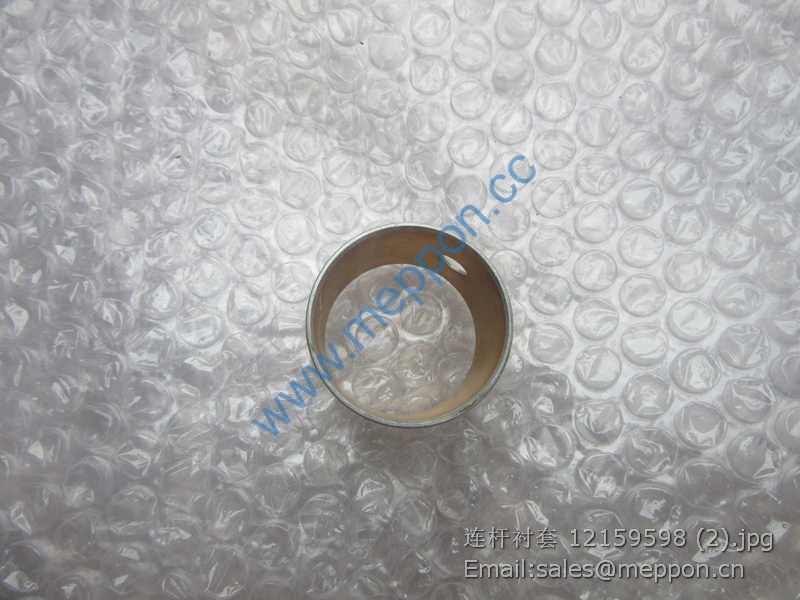

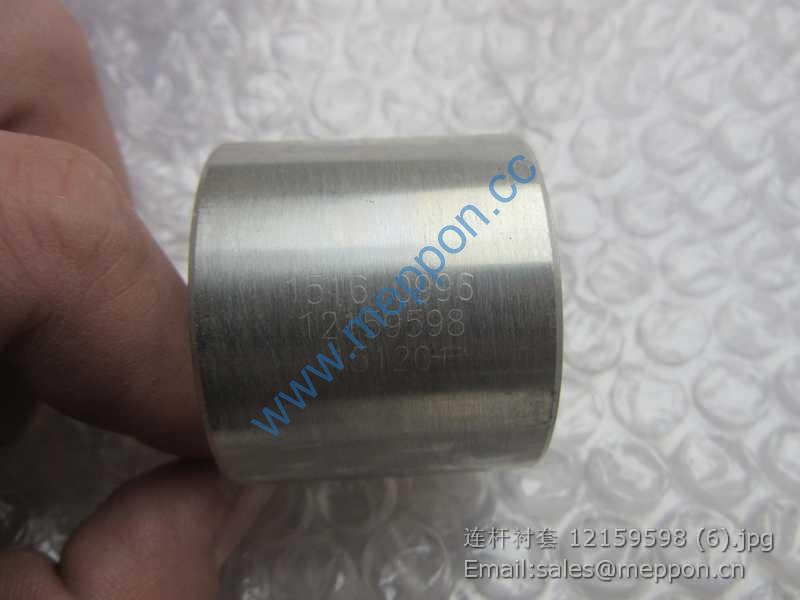

12159598 WEICHAI ROD BUSH

软管卡箍 Hose clamp 90003989318 2 2
46 带纤维夹层橡胶软管 Hose VG2600110824 1 1
47 强力卡箍 Hose clamp VG9003980003 2 2
48 共轨支架 Support VG1540110016A 1 1
49 焊接六角螺母 M8 Nut M8 DIN929 2 2
50 线束支架 Support VG1540110053C 1 1
51 线束下支架 Support VG1096119055 1 1
52 中冷管支承板焊接件 Support VG1540110051A 1 1
53 前隔热罩 Insulation cover VG2600111144 1 1
54 后隔热罩 Insulation cover VG2600111145 1 1
55 大垫圈 Washer 90003936109 12 12
56 隔热罩螺栓 Bolt VG260110962 12 12
57 中冷管 Compressor outlet pipe HG1500110205 1 1

水冷空压机 Air compressor assembly HG1500130147 1 1
2 传动轴 Drive shaft VG2600130122 1 1
3 滚柱轴承 Roller bearing 90003320154 1 1
4 双列径向止推滚柱轴承 Ball bearing 161500080158J 2 2
5 衬套 Bush VG2600130047 1 1
6 挡油盘 Bearing shield VG2600130073 1 1
7 夹紧螺母 Compression nut VG2600130046 1 1
8 压紧块 Pressure ring VG2600130123 1 1
9 盖 Cover VG1500080165 1 1
10 六角头螺栓 Hex head bolt 90003802432 4 4
11 空压机齿轮 Air compressor gear VG1560130012 1 1
12 六角螺母 Hexagon nut VG2600130001 1 1
13 支撑环 Flat washer VG609070161 1 1
14 空压机传动轴油封 Oil seal VG0003070092 1 1
15 油封座 Oil seal carrier VG1500130097 1 1
16 六角头螺栓 Hex head bolt 90003802415 4 4
17 密封圈 Sealing ring VG192320002 1 1
18 喷油泵齿轮 Injection pump gear VG1560130064 1 1
19 垫片 Washer VG409020045 1 1
20 六角螺母 Hexagon nut VG2600130045 1 1
21 水冷空压机水管接头 Pipe connection VG2600130026 1 1
22 密封垫圈 Sealing ring 90003098014 1 1

带纤维夹层橡胶软管 Hose VG2600130027 1 1
24 软管卡箍 Hose clamp 90003989336 4 4
25 带纤维夹层橡胶软管 Hose VG2600139012 1 1
27 六角头螺栓 Hex head bolt 90003802419 7 7
28 六角头螺栓 Hex head bolt 90003800458 1 1
六角头螺栓 Hex head bolt Q150B0865 1 1
29 六角头螺栓 Hex head bolt 90003800569 2 2
30 六角头螺栓 Hex head bolt 90003802561 1 1
31 波形弹簧垫圈 Wave spring washer 90003932023 17 17
32 波形弹簧垫圈 Wave spring washer 90003931122 3 3

油底壳总成 Oil pan HG1500159678 1 1
2 密封垫 Joint VG14150004 1 1
3 磁性螺塞总成 Plug VG2600150108 1 1
4 密封垫圈 Washer VG2600150106 1 1
5 油底壳托块 Holding piece VG14150046 12 12
6 六角头螺栓 Bolt 90003802442 12 12
7 平垫圈 Washer 90003930261 12 12
8 波形弹性垫圈 Wave spring washer 90003932023 12 12
