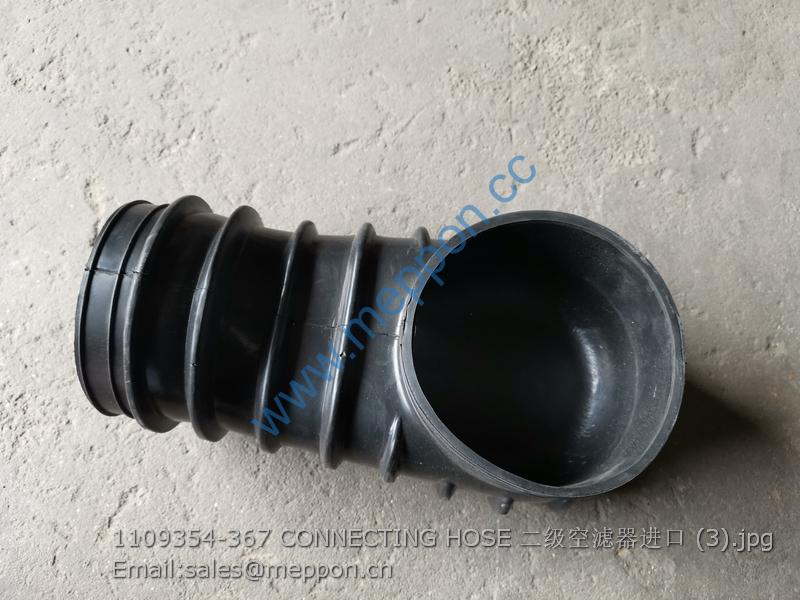

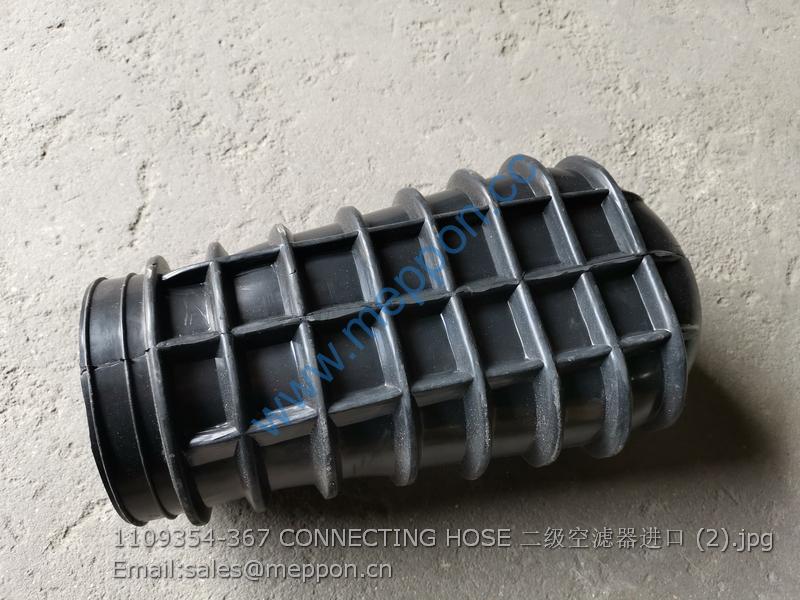

1109354-367 CONNECTING HOSE FAW
1 Fuel tank unit SZ804.50.030 1 23 Oil tank cap with lock LHYXG-3.1 1
2 Oil pipe, cock to oil filter 5133999/1.04.607 2 24 Bolt M10×45-Zn.D GB 5782-86 2
3 Bearing plate, oil pipe cock 5132605/1.04.0 1 25 Washer 10-Zn.D GB 93-87 2
4 Oil pipe cock assembly 885120589/1.04.625A 1 26 Buffer washer
11×32×3-Zn.D, fuel tank
4998710/1.04.077 4
5 Washer 10-Zn.D GB/T97.1-2002 1 27 Buffer, fuel tank 4952241/1.87.038 4
6 Nut M10-Zn.D GB/T6171-2000 1 28 Spacer, buffer, fuel tank 4998708/1.04.076 2
7 Bolt M8×16- Zn.D GB/T5783-2000 2 29 Edge-flange joint 4984904/1.85.078 1
8 Washer 8-Zn.D GB/T7244-2000 3 30 Pin 3.2×20 GB/T91-2000 1
9 Washer 8-Zn.D GB/T97.1-2002 3 31 Washer 10-Zn.D GB/T97.1-2002 1
10 Connector tube, fuel tank SZ804.50.303 1 32 Strap unit SZ804.50.032 1
11 Clamp 25～38 5129538/1.04.619 2 33 Pin B10×70 GB/T886-1986 1
12 Joint, oil through pipe 5150930/1.04.6 1 34 Bolt 16×1.5×55 GB/T5786-2000 2
13 Composite gasket 28, diesel
tank
SZ804.50.028 3 35 Washer 16 GB/T93-1987 4
14 Plug M28×1.25 SZ804.50.212 1 36 Bolt 16×1.5×45 GB/T5786-2000 2
15 Link bolt for pipe joint
M12×1.5
10181714/14256 1 37 Bracket unit, auxiliary tank LY1054.50.031 1
16 Seal washer 12×18×1.5 10298460/14607 2 38 Nut M8-Zn.D GB/T6170-1986 1
17 Banjo union 884671700/0.20.131 1 39 Breather hose, additional
tank
SZ804.50.301 1
18 Breather connection unit,
additional tank
5119825/1.04.637A 1 40 Clamp 8-12 JK-0000 11
19 Bearing pad, fuel tank 5141798/1.04.040B 1 41 Baffle SZ804.50.302-1 1
20 Side pad, fuel tank 5141796/1.04.039B 2 42 Hoop 38-25 QC/T619 2
21 Fuel tank assembly 881200406/1.04.0 1 43 Clamp connecting rubber
strip
LJT01A1530 2
22 Wrap, flange, fuel tank 4998724/1.04.055 1
44 Oil pipe joint SZ804.80.104 3
45 Oil-water separator SQCL500-80 1
1 Bracket assembly, traction coupler 5124430/1.89.008 1
8808089051/1.89（for
assembling single
auxiliary cylinder）
1
2 Trailer pin assembly SZ804.53.014 1
3 Trailer hook assembly SZ804.53.011 1
4 Lock pin 44007661/1.82.945 1
5 Lock pin 4996920/1.89.051 2
6 Horizontal hitch pin 5117437/1.89.026 2
1
Lift arm assembly (RH)
1.82.811A/5123959 1 18 Support assembly, auxiliary
cylinder
SZ904.55.010 1
2 Washer, lift shaft 885111082/1.82.818 2 19 Slave cylinder assembly SZ804.55.081 1
3 Inner lift arm assembly SZ804.55.083 1 20 Oil pipe, auxiliary cylinder 5133117/1.82.193A 1
4 Piston rod 5121221SZ/1.82.812 1 21 Oil delivery hose to
cylinder
5126672/1.63.566 1
5 Pin, push rod 5122356/1.82.813 1 22 Sleeve, pivot, auxiliary
cylinder
1204.55.116 1
6 Oil seal 55×70×8, lift shaft 5105903/1.82.821 2 23 Bolt M8X×50-Zn.D GB5782-86 1
7 Lift shaft 5117187/1.82.808 1 24 Bolt M10×1.25×16 GB5786-86 1
8 Positioning bolt 5117190/1.82.819 1 25 Locking plate 10 14198801/10188 1
9 Washer 10 GB 854-88 2 26 Fastening pad 44002815/1.32.032 1
10 Bolt M10×1.25×16 GB/T5786-2000 1 27 Pin, slave cylinder 8851010297/1.82.191 1
11 Bolt M14×1.5×40 GB/T5786-2000 4 28 Nut M8 GB6185.1-87 1
12 Bolt M14×1.5×35 GB/T5786-2000 1
13 Support weldment, rod (UPR) SZ804.55.020 1
14 Washer, lift shaft 5122898/1.82.817 2
15 Washer 14 GB 93-86 2
16 Bolt M14×1.5×30 GB/T5786-2000 2
17 Lift arm weldment (LH)
(crank)
1.82/8B08082053SZ
