Description

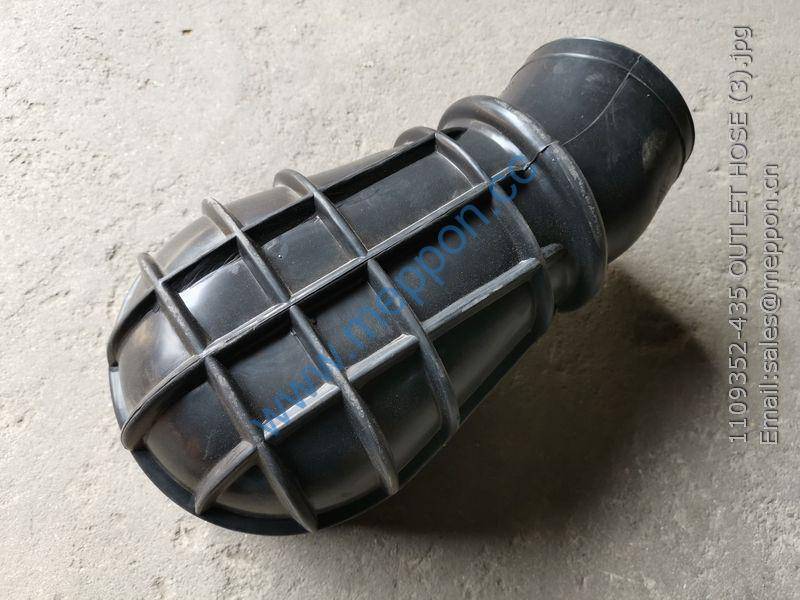

1109352-435 OUTLET HOSE FAW
1 Roof 1.87.760/5137614 1
2 Welded mounting bracket
assembly (RH), roof
SZ700.46B.011 1
3 Welded mounting bracket
assembly (LH), roof
SZ700.46B.010 1
4 U-bolt SZ700.46B.202 4
5 Washer 12 GB7244 8
6 Nut M12×1.5-Zn.D GB6176 8
7 Nut M8 GB889.1 6
8 Washer 1.87.706F/5137571 12
9 Pad (UPR) 1.87.706D/5137569 6
10 Pad (LWR) 1.87.706E/5137570 6
11 Spacer 1.87.706G/5137572 6
1 Bolt M12×1.25×30 GB/T5786-2000 4 18 Bolt M10×1.25×40 GB/T5785-2000 4
2 Washer 12 GB/T97.1-2002 4 19 Nut M16×1.5-Zn.D GB/T6171-2000 4
3 Washer 12 GB/T93-1987 4 20 Cover (UPR), buffer washer 4997421/1.87.043 4
4 Nut M12×1.25-Zn.D GB/T6171-2000 4 21 Buffer washer 4997423/1.87.038 8
5 Bracket unit (RH) 885147444/1.87.0 1 22 Inner spacer, rear
suspension
5132015/1.87.0 4
6 Bolt M14×1.5×35 GB/T5786-2000 8 23 Bolt M16×1.5×150 SZ804.47.716 4
7 Washer 14 GB/T93-1987 8 24 Washer (LWR) 4997422/1.87.039 8
8 Bracket unit (LH) 8A5145508SZ/1.87.0 1 27 Vehicle step SZ900.47A.071 2
9 Washer 16-Zn.D GB/T93-1987 6 28 ROPS assembly LX804.47.011-1 1
10 Bolt M16×1.5×160 SZ804.47.717 2 32 Washer, elastic suspension
(FR)
8A1208706/1.87.0 2
11 Inner spacer, suspension (FR) 5132014/1.87.0 2 33 Washer, elastic suspension
(FR)
885130819/1.87.0 4
12 Washer (UPR), front suspension 5132013/1.87.0 2 34 Bolt M8×30-Zn.D GB5783-2000 12
13 Mounting plate, front
suspension
5130167/1.87.0 1 35 Washer 8-Zn.D GB/T7244-1987 12
14 Elastic support, front
suspension, floor
5132016/1.87.0 2 36 Washer 8-Zn.D GB/T96.1-2002 12
15 Washer (LWR), front
suspension
5132012/1.87.0 2 37 Nut M8-Zn.D GB/T6170-2000 8
16 Nut M10×1.25-Zn.D GB/T6171-2000 4
17 Washer 10-Zn.D GB/T7244-1987 4
1 Air Filter Assembly KY250A7 1
2 Transition support weldment,
air cleaner
4RCT4.220100-SZ 1
3 Bolt M10×20-Zn.D GB/T5783-2000 1
4 Washer 10-Zn.D GB/T93-1987 6
5 Bracket unit, air cleaner 6RTF.210350 6
6 Bolt M8×30-Zn.D GB/T70.1-2000 1
7 Washer 8-Zn.D GB/T7244-1987 2
9 Hose clamp（76-92） QC/T619-1999 2
10 Intake connecting hose 4MCT.210001SZ 1
11 Clamp（80-100） QC/T619-1999 1
12 Washer 10-Zn.D GB/T97.1-2002 4
13 Bolt M8×20-Zn.D GB/T5783-2000 2
