Description

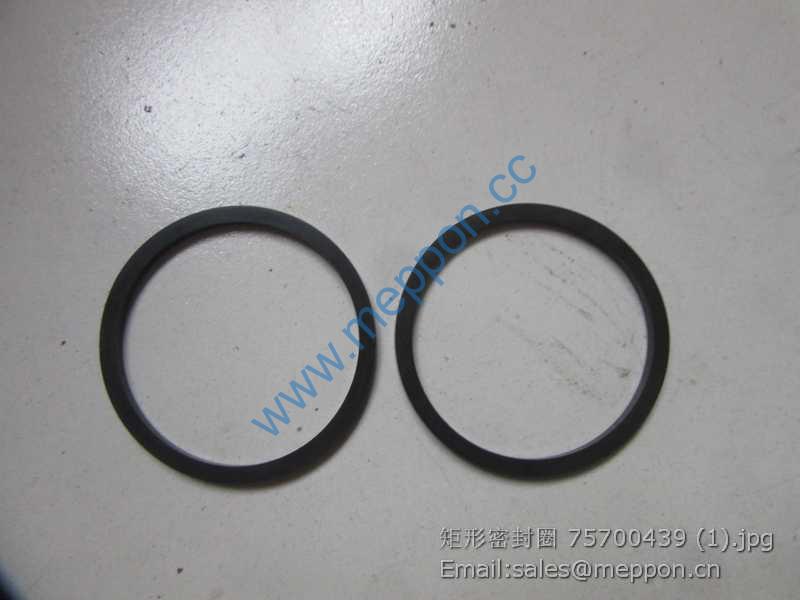

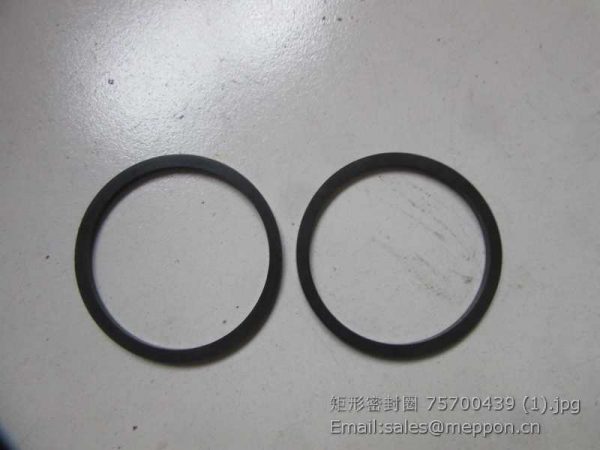

075700439 ZF SEAL RING
61500010393 1 1 气缸体总成 Cylinder block assembly
1-1 61560010096 1 1 气缸体 Cylinder block
1-2 61500010366C 1 1 曲轴箱 Crankcase
1-3 90003982121 4 4 45/12 N05564 碗形塞 Core hole plug
1-4 90003989210 6 6 75/14 N05564 碗形塞 Core hole plug
1-5 90003989289 4 4 40/12 N05564 碗形塞 Core hole plug
1-6 90003901604A 2 2 Q5221226 圆柱销 Straight pin
Q5211220 1 1 圆柱销 Straight pin
1-7 VG2600010990 1 1 凸轮轴衬套 Camshaft bush
1-8 VG1096010010A 1 1 凸轮轴衬套 Camshaft bush
VG1560010029 5 5 凸轮轴衬套 Camshaft bush
1-9 VG14010114 13 13 主轴承螺栓 Headstock bolt
1-10 VG14010217 1 1 主轴承螺栓 Headstock bolt
2 VG1400010032 2 2 密封圈 Sealing ring
3 90003989204 1 1 28/12 N05564 碗形塞 Core hole plug
4 90003989215 3 3 45/12 N05564 碗形塞 Core hole plug
5 90003989288 1 1 65/14 N05564 碗形塞 Core hole plug
6 90003989480 2 2 17/8 DIN05564 碗形塞 Core hole plug
7 90003984080 1 1 17/7.3 N05564 碗形塞 Core hole plug
8 VG1500010185 21 21 气缸盖螺栓 Cylinder head stud
9 VG407010046 1 1 密封圈 Sealing ring
VG1540010006 6 6 气缸套 Cylinder liner
11 VG2600010659 6 6 喷嘴总成 Oil injection nozzle
12 90003909603 6 6 3×8 DIN1481 弹性圆柱销 Spring type straight pin
13 90003962621 6 6 A8 DIN7623-6S 空心螺栓 Hollow bolt
14 90003098015 6 6 A14×20 DIN7603 密封垫圈 Sealing ring
15 VG1500010125 2 2 止推片（付） Thrust washers
16 VG1540010021 7 7 主轴瓦上瓦 Main bearing
17 VG1540010022 7 7 主轴瓦下瓦 Main bearing
18 90003802493 5 5 DIN933-M8×110-8.8-Zn.D 六角头螺栓 Hex head bolt
19 VG1047010050 1 1 后油封 Rear oil seal
20 90003901604 6 6 12m6×20 DIN7 圆柱销 Straight pin
21 90003909626 6 6 6×12 DIN1481 弹性圆柱销 Spring type straight pin
22 VG1460070011 1 1 主油道后螺塞 Main oil gallery screw plug
23 VG2600010735 1 1 复合垫圈 Sealing washer
24 VG2600070097 1 1 回油弯管 Oil return elbow connector
25 VG2600010538A 1 1 油尺管堵 Dipstick jam
26 90003862428 22 22 内六角圆柱头螺钉 Socket cap screw
27 VG188250083 22 22 自锁垫圈 Lock washer
28 VG61000010134 1 1 密封圈 Sealing ring
R61540010009 1 1 单缸空压机正时齿轮室 Gearcase
2 VG2600010830 1 1 空压机齿轮盖 Air compressor gear cover
3 VG14010040 1 1 空压机齿轮盖垫片 Gasket
4 VG1047010038 1 1 前油封 Front oil seal
5 VG2600010928 1 1 前油封座 Front oil seal carrier
6 VG2600010934 1 1 前油封座垫片 Gasket
7 VG1500010008A 1 1 凸轮轴齿轮盖 Camshaft gear cover
8 VG14010070 1 1 凸轮轴齿轮盖垫片 Gasket
9 90003813429 10 10 DIN939-M8×22-8.8-Zn.D 双头螺柱 Stud
10 90003932023 11 11 B8 DIN137-Zn.D 波形弹性垫圈 Wave spring washer
11 90003871252 11 11 DIN934m-M8-8-Zn.D 1 型六角螺母 Hexagon nut
12 90003802576 1 1 DIN933-M10×90-8.8-Zn.D 六角头螺栓 Hex head bolt
13 90003932024 1 1 B10 DIN137-Zn.D 波形弹性垫圈 Wave spring washer
14 90003800571 1 1 DIN931-M10×80-8.8-Zn.D 六角头螺栓 Hex head bolt
15 90003931122 9 9 B10 DIN127-Zn.D 弹簧垫圈 Spring lockwasher
16 90003930271 2 2 A10.5 DIN125-st 平垫圈 Flat washer
17 90011260039 6 6 M6×30-8.8-H.Y GB/T5782 六角头螺栓 Hex head bolt
18 90003098015 6 6 A6.5×9.5DIN7603 复合密封垫圈 Sealing washer
19 90003862524 2 2 M10×20-8.8-ZN DIN912 内六角圆柱头螺钉 Socket cap screw
20 90003932025 2 2 A10 DIN137-Zn.D 鞍形弹性垫圈 Saddle shaped spring washer
21 90003813443 1 1 M8×30-8.8-ZN DIN939 双头螺柱 Stud
