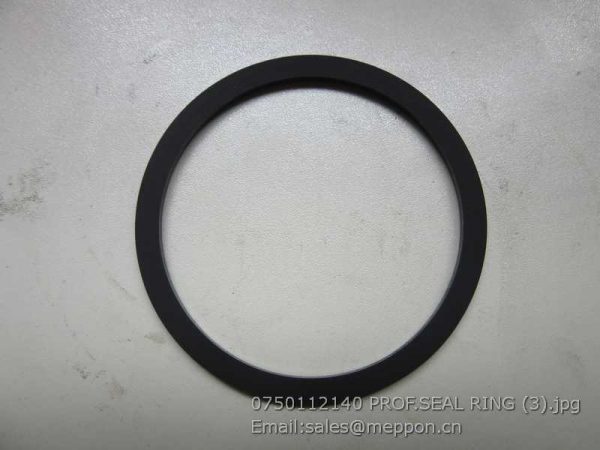

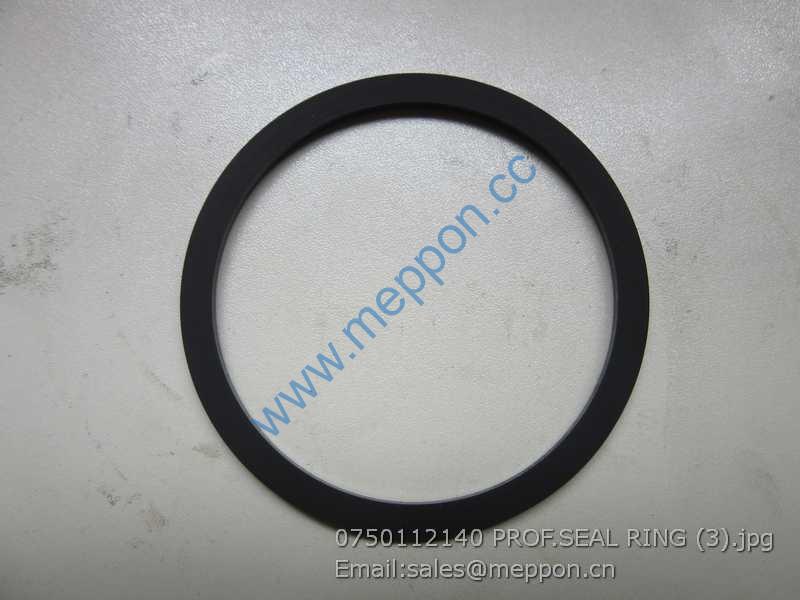

0750112140 PROF.SEAL RING ZF
11289113 1 右动臂油缸总成 Cylinder As – Boom (Rh)
11289112 1 左动臂油缸总成 Cylinder As – Boom (Lh)
A210204000019 5 螺钉 Screw
A210404000004 5 垫圈 Washer
A810312060006 工作装置管路 (Lines – Work Equipment) (3/3) 4-17
A210204000356 4 螺钉M10×50GB70.110.9级 Screw
A210609000136 2 O形圈 Seal – O-Ring
变更或见其他配置 1 铲斗油缸 Cylinder – Bucket
A820203001538 1 法兰 Flange
A820205000890 2 管嘴 Nozzle
B230101000356 2 O形圈 Seal – O-Ring
A210204000354 4 螺钉M10×30GB70.110.9级 Screw
A810201069038 1 管卡 Clip
A810201021329 1 油管组件 Lines Gp – Oil
11289114 铲斗油缸总成 (Cylinder As – Bucket) 4-19
变更或见其他配置 1 斗杆油缸 Cylinder – Arm
B230101000456 2 O形圈 Seal – O-Ring
A210204000359 4 螺钉M12×60GB70.110.9级 Screw
A810201021333 1 油管组件 Lines Gp
A210204000360 4 螺钉M12×80GB70.110.9级 Screw
A210111000202 2 螺栓M12×30GB578310.9级 Bolt
A820101117096 1 支承板 Plate – Support
A810103000034 1 管卡组件 Clip Gp
A820203001535 1 管嘴 Nozzle
A820606010353 1 衬垫 Liner
11289111 斗杆油缸总成 (Cylinder As – Arm) 4-21
变更或见其他配置 1 动臂油缸 Cylinder – Boom
11088309 1 油管组件 Lines Gp – Oil
变更或见其他配置 1 油管组件 Lines Gp – Oil
A210204000356 8 螺钉M10×50GB70.110.9级 Screw
A210609000136 2 O形圈 Seal – O-Ring
变更或见其他配置 1 管卡 Clip
11289113 右动臂油缸总成 (Cylinder As – Boom (Rh)) 4-23
60012806 1 电源线 Harness – Power Supply
60012803 1 电源线 Harness – Power Supply
A242200000027 2 蓄电池 Battery
60012793 1 电源线 Harness – Power Supply
60013322 2 A型蓄电池正极接头总成 Joint assy,terminal, positive,
60013321 2 A型蓄电池负极接头总成 Joint assy,terminal, negative,
A230200000177 7 线夹 Clip – Wire
10281037 1 车身线束 Harness – Chassis
60012799 1 电源线 Harness – Power Supply
A230200000169 16 线夹 Clip – Wire
B241100000391 2 工作灯 Work Lamp
B249900001085 1 显示器 Monitor
10123858 1 驾驶室线束 Harness – Cab
A229900001930 1 旋钮开关 Switch – Dial
A241200001217 1 启动开关 Switch – Start
A210202000011 7 螺钉 Screw
A210401000013 7 垫圈 Washer
60053220 1 LED指示灯LAS3/24V 红 Indicator – Red
60053221 1 LED指示灯LAS3/24V 黄 Indicator – Yellow
10398366 1 控制开关线束 Harness – Control Switch
10123868 电气系统 (Electrical System) (1/3) 5-3
