Description

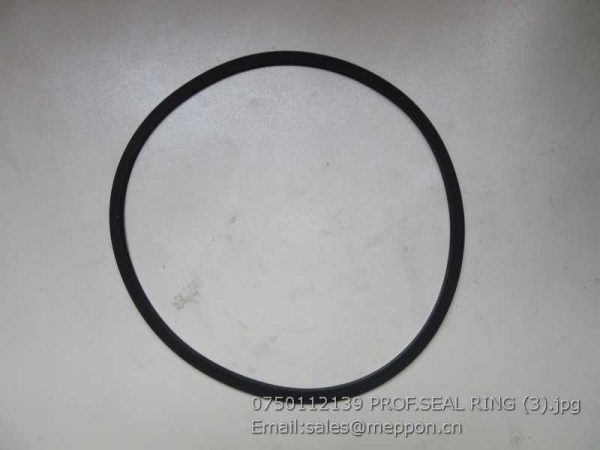

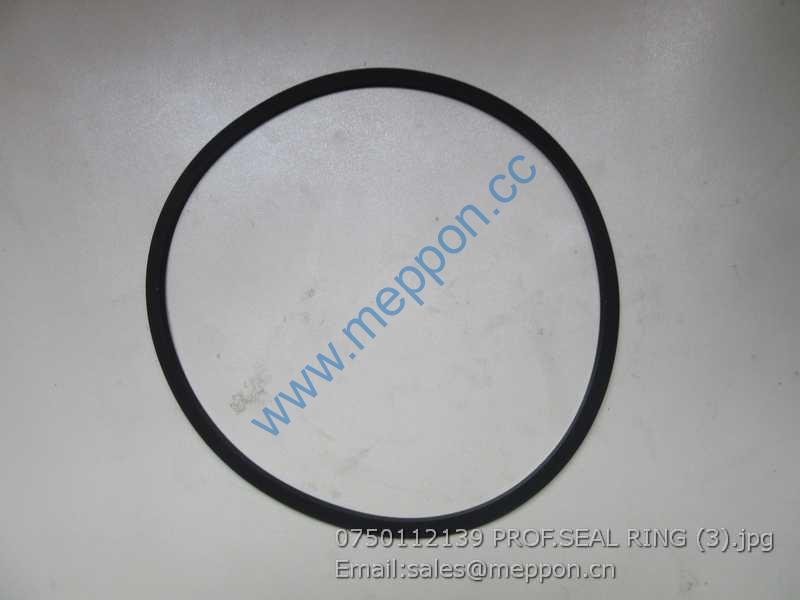

0750112139 PROF.SEAL RING ZF
A820101322531 2 灯架 Bracket – Lamp
A820301020461 1 销轴 Roll – Pin
变更或见其他配置 2 树脂垫片 Gasket – Resin
11308781 1 压板 Plate – Pressure
11272926 2 压板 Plate – Pressure
A210405000003 4 垫圈 Washer
A810312000126 工作装置 (Work Equipment) (2/5) 4-5
60055872 1 DLI型防尘圈 Ring – Dust (Type Dli)
A210111000202 6 螺栓M12×30GB578310.9级 Bolt
A210405000001 4 垫圈 Washer
A820101119187 1 板 Plate
A810312110021 1 销轴 Roll – Pin
B229900000686 7 黄油嘴 Fitting – Grease
11214301 1 斗杆 Arm
11216201 2 轴套 Sleeve – Shaft
A820102010387 2 垫片 Gasket
A810312110015 1 销轴 Roll – Pin
A810312000126 工作装置 (Work Equipment) (3/5) 4-7
10167595 8 垫片 Gasket
A210110000352 3 螺栓M20×180GB578210.9级 Bolt
A810312110014 2 销轴 Roll – Pin
变更或见其他配置 1 改进普通铲斗 Bucket – Improved
A210110000300 2 螺栓M20×160GB578210.9级 Bolt
11266813 1 右摇杆 Rocker – Rh
B230101000622 6 DSI防尘圈 Ring – Dustproof
A820202002974 2 轴套 Sleeve – Shaft
A810312110016 2 销轴 Roll – Pin
A210609000324 2 O形圈 Seal – O-Ring
B230101000623 4 DSI防尘圈 Ring – Dustproof
11183349 2 轴套 Sleeve – Shaft
A820202002973 2 轴套 Sleeve – Shaft
A810312000092 1 连杆 Rod – Connecting
A820202002972 2 轴套 Sleeve – Shaft
A210110000331 1 螺栓(GB5782)10.9级 Bolt
A210110000083 4 螺栓M20×90GB578210.9级 Bolt
A210405000008 4 垫圈 Washer
A820101116961 1 板 Plate
11297641 4 调整垫片 Shim
A810312000126 工作装置 (Work Equipment) (4/5) 4-9
11297642 4 调整垫片 Shim
11297643 4 调整垫片 Shim
A820202002008 1 套 Sleeve
11266812 1 左摇杆 Rocker – Lh
A810312000126 工作装置 (Work Equipment) (5/5) 4-11
A820101216692 3 单管管卡 Clip
A820101118576 2 管夹 Clamp
A820101118573 2 管夹 Clamp
11102611 1 黄油管 Pipe – Grease
11102612 1 黄油管 Pipe – Grease
11102613 1 黄油管 Pipe – Grease
A820606010360 8 衬垫 Gasket
A810201066352 1 钢管总成 Tube As
A810201066351 1 钢管总成 Tube As
A810201066353 1 钢管总成 Tube As
A810201066350 1 钢管总成 Tube As
A820101118575 1 管夹 Clamp
A820101118574 1 管夹 Clamp
B229900000379 5 黄油嘴 Fitting – Grease
A210434000007 3 垫圈 Washer
A210434000005 2 垫圈 Washer
11102367 2 接头 Joint
11102369 2 接头 Joint
11102609 1 黄油管 Pipe – Grease
11102610 1 黄油管 Pipe – Grease
A810312060006 工作装置管路 (Lines – Work Equipment) (2/3) 4-15
