Description

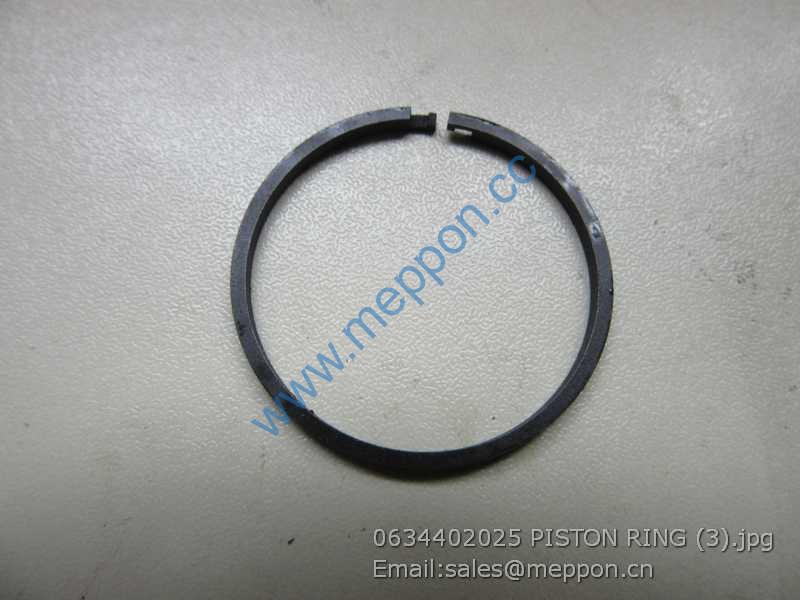

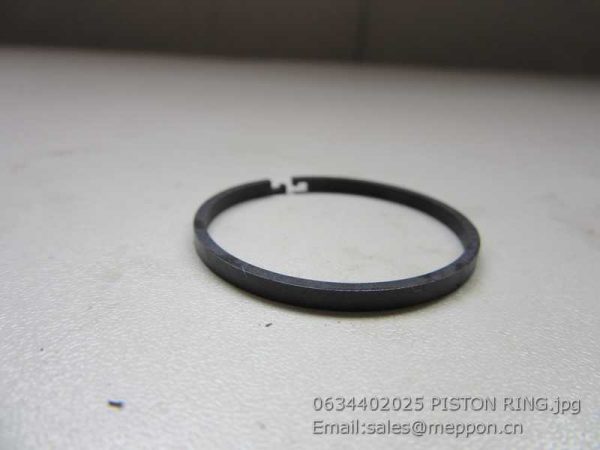

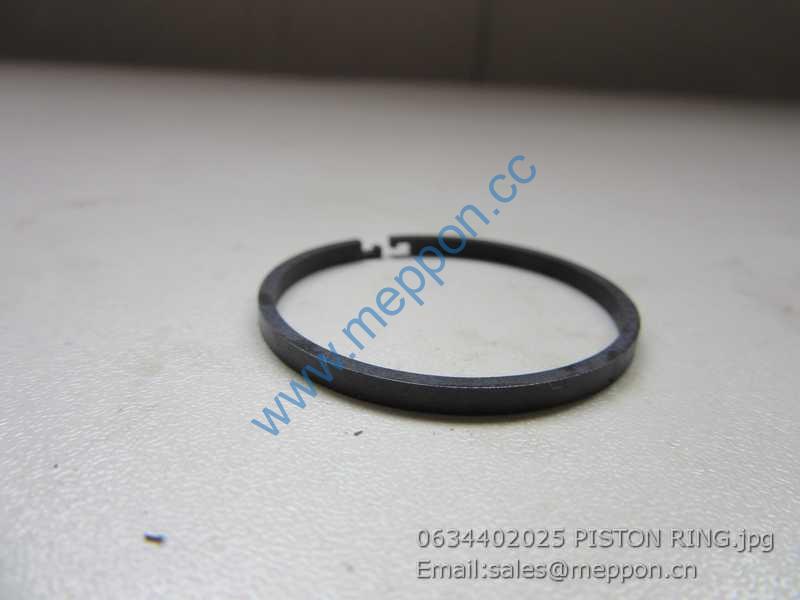

0634402025 PISTON RING ZF

A820699000677 1 驾驶室底板海绵 Foam – Bottom Plate (Cab)
B229900000244 2 司机室支承 Support – Cab
B229900000245 2 司机室支承 Support – Cab

10472127 2 蒸汽胶管 Hose – Steam
A210855000005 2 喉箍 Hoop
A820205002617 1 水管变径接头 Adapter – Water Pipe
10472128 1 蒸汽胶管 Hose – Steam
10453599 1 管接头 Fitting – Pipe
A210111000199 6 螺栓M12×20GB578310.9级 Bolt
A210405000001 6 垫圈 Washer
A230200000178 5 线夹 Clip – Wire
A239900000066 1 尼龙扎带(黑色 Bandage, nylon
A210111000079 1 螺栓 Bolt
A230200000169 1 线夹 Clip – Wire
60001239 1 液体胶管 Hose – Liquid
60001235 1 吸气胶管 Hose – Air Inlet
A210111000208 2 螺栓M14×40GB578310.9级 Bolt
A210444000001 2 垫圈 Disc
A210110000324 1 螺栓M16×65GB578210.9级 Bolt
A210111000101 4 螺栓M12×25GB578310.9级 Bolt
11222274 1 压缩机支架 Bracket – Compressor
A210307000028 1 螺母M16GB617010级 Nut
A230106000321 1 V带 V-Band

10062285 1 调整板 Plate – Adjusting
B220203000007 1 压缩机 Compressor
A210405000007 6 垫圈 Washer
A210108000097 4 螺栓 Bolt
60001232 1 排气胶管 Hose – Air Outlet
A210405000006 8 垫圈 Washer
A210111000082 6 螺栓 Bolt
60001238 1 液体胶管 Hose – Liquid
10368409 1 干燥瓶支架 Bracket – Drying Bottle
A210404000003 2 垫圈 Disk
A210111000012 2 螺栓M10×20GB578310.9级 Bolt
A229900008784 1 储液器支架 Bracket – Reservoir
A210111000343 2 螺栓M8×20GB578310.9级 Bolt
B229900005141 1 储液器 Reservoir
A210111000323 11 螺栓M8×25GB578310.9级 Bolt
变更或见其他配置 1 冷凝器右支架 Bracket – Condenser (Rh)
A220700000028 1 冷凝器总成 Condenser As
A210404000005 15 垫圈 Washer
A210111000092 4 螺栓 Bolt
变更或见其他配置 1 冷凝器左支架 Bracket – Condenser (Lh)

B222100000660 1 外气过滤器 Filter – Fresh Air
A221600000159 1 空调单元总成 Air Conditioner Unit As
A229900009481 1 排水管 Pipe – Drain
A210204000132 1 螺钉 Screw
B229900005758 1 管接头 Fitting – Pipe
B222100000711 1 内气过滤器 Filter – Recirculation
10473304 1 空调电气系统 Electrical System – Air Conditioner
